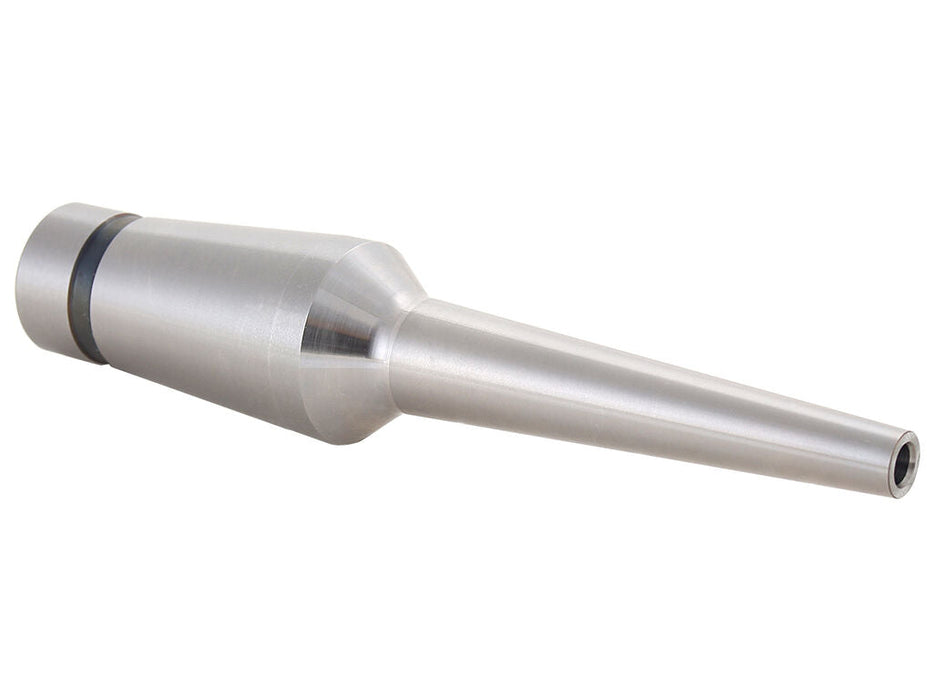

258.SFS12.53.433-HT : SFS 12 x 3/16" - 4.33"
by Techniks USA
Original price
$301.00
-
Original price
$301.00
Original price
$301.00
$301.00
-
$301.00
Current price
$301.00
Specifications
| Item Number | 258.SFS12.53.433-HT |
|---|---|
| Item Description | SFS Shrinkfit Holder x .188" bore - 4.33" projection |
| Taper | SFS12 |
| Overall Length | 6.5" |
| Body Dia | .43" |
| Overall Dia | .7" |
| Weight | 0.5 |
| Nose dia | .31" |
| Bore Size | 3/16" |
| Taper Dia | 1.02" |
| Nose Length | 3.82" |
| Projection Length | 4.33" |
Overview
**All images are representative images. Verify specifications before placing orders.** SFS toolholders and ShrinkFIT adapters are made from H13 tool steel for compatibility with fast induction heat shrink machines like Techniks ShrinkPRO unit that provide tool changes in only 3–5 seconds. Toolholders made from H13 also provide reduced wear on the machine spindle when compared to stainless steel holders. For shanks from 1/8" to 1/2" using SFS holders. Coolant thru capable Balanced to 25,000 RPM @ G2.5 T.I.R 0.0001" measured from the taper to the I.D. Compatible with other modular shrink fit systems
