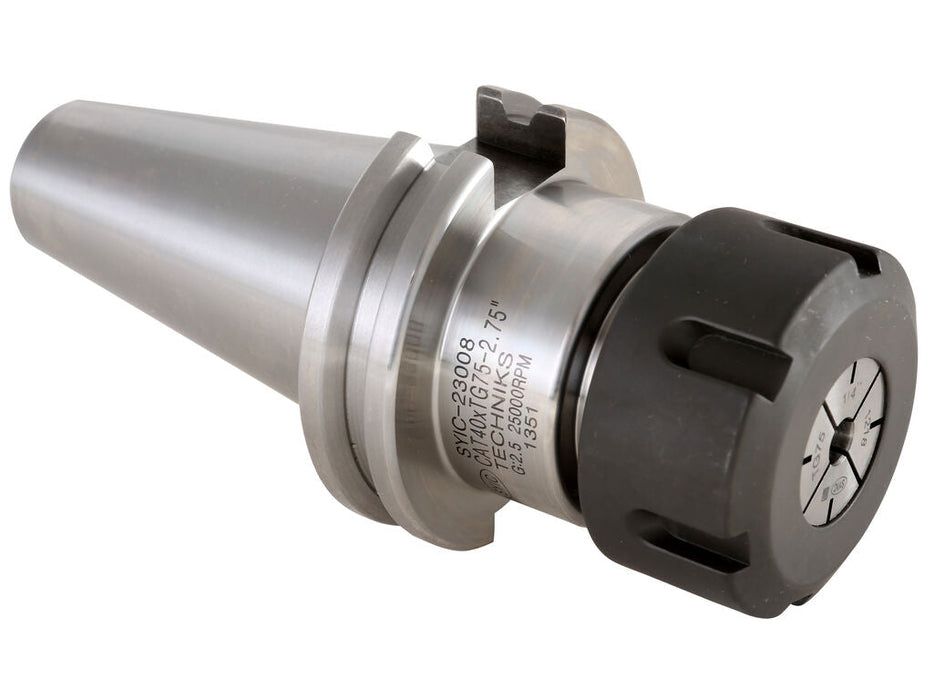

23008 : CAT 40 x TG 75 - 2.75"
by Techniks USA
Original price
$255.60
-
Original price
$255.60
Original price
$255.60
$255.60
-
$255.60
Current price
$255.60
Specifications
| Item Number | 23008 |
|---|---|
| Item Description | CAT40 Collet Chuck x TG75 - 2.75" projection |
| Taper | CAT40 |
| Body Dia | 1.75" |
| Shank Size | 2.5" |
| Weight | 3.2 |
| Collet series | TG75 |
| Taper length | 2.69" |
| Nose dia | 2.5" |
| Projection Length | 2.75" |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
