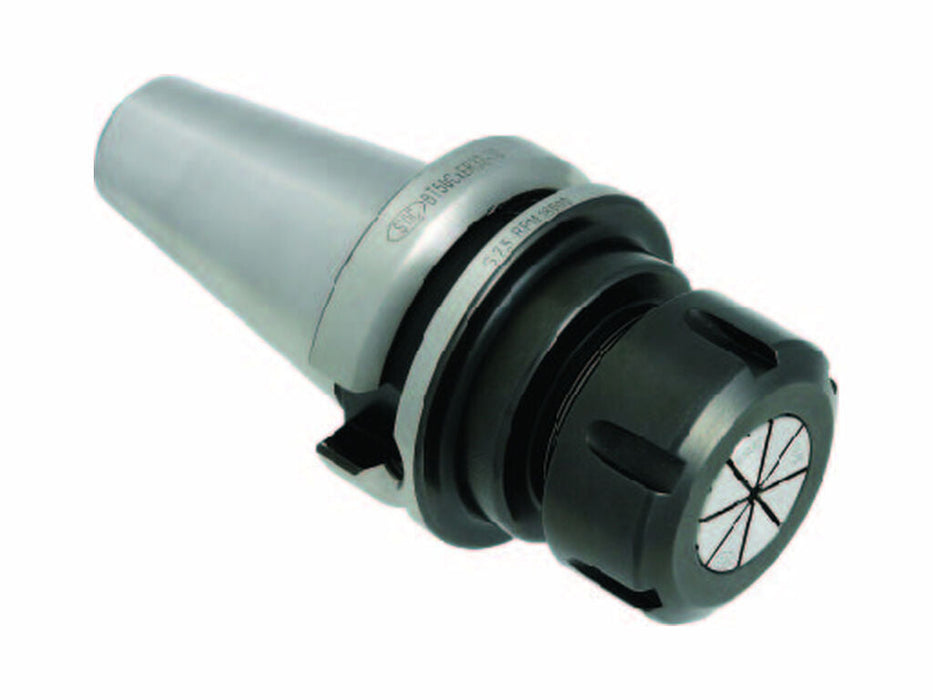

16275 : BT 50 x ER 25 - 105
by Techniks USA
Original price
$241.20
-
Original price
$241.20
Original price
$241.20
$241.20
-
$241.20
Current price
$241.20
Specifications
| Item Number | 16275 |
|---|---|
| Item Description | BT50 Collet Chuck x ER25 - 105mm projection |
| Taper | BT50 |
| Body Dia | 69.85 |
| Shank Size | 100mm |
| Weight | 9.3 |
| Collet series | ER25 |
| Taper length | 101.8mm |
| Nose dia | 100mm |
| Projection Length | 105mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
