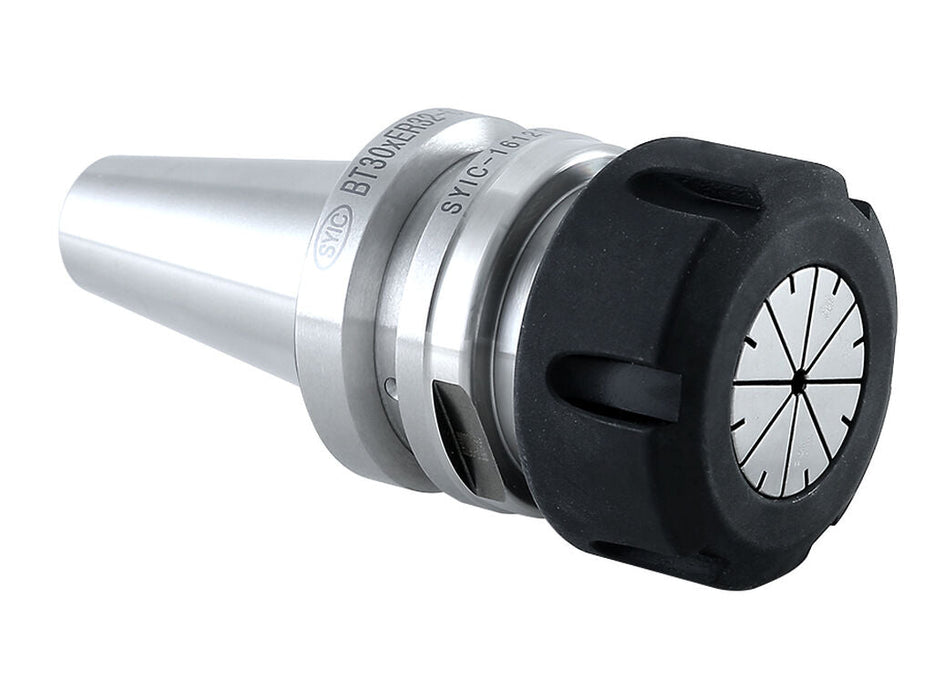

16106-4 : BT 30 x ER 20 - 4"
Specifications
| Item Number | 16106-4 |
|---|---|
| Item Description | BT30 Collet Chuck x ER20 - 101.6mm projection |
| Taper | BT30 |
| Body Dia | 31.75 |
| Shank Size | 46mm |
| Stop Screw | 16087 |
| Wrench | 04610 |
| Weight | 1.4 |
| Collet series | ER20 |
| Taper length | 48.4mm |
| Nose dia | 34mm |
| Projection Length | 101.6mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Both through-spindle and CoolFLEX AD+B flange coolant delivery are available. DualDRIVE collet chucks are designed to work with dual-contact spindles to provide superior rigidity under heavy side loads. Extended gage lengths are available for long reach applications such as machining on horizontal machining centers. Balanced to 25,000 RPM at G2.5 Maximum 0.0001" T.I.R. measured from taper to collet pocket PowerCOAT Nut increases holding power by 75%
