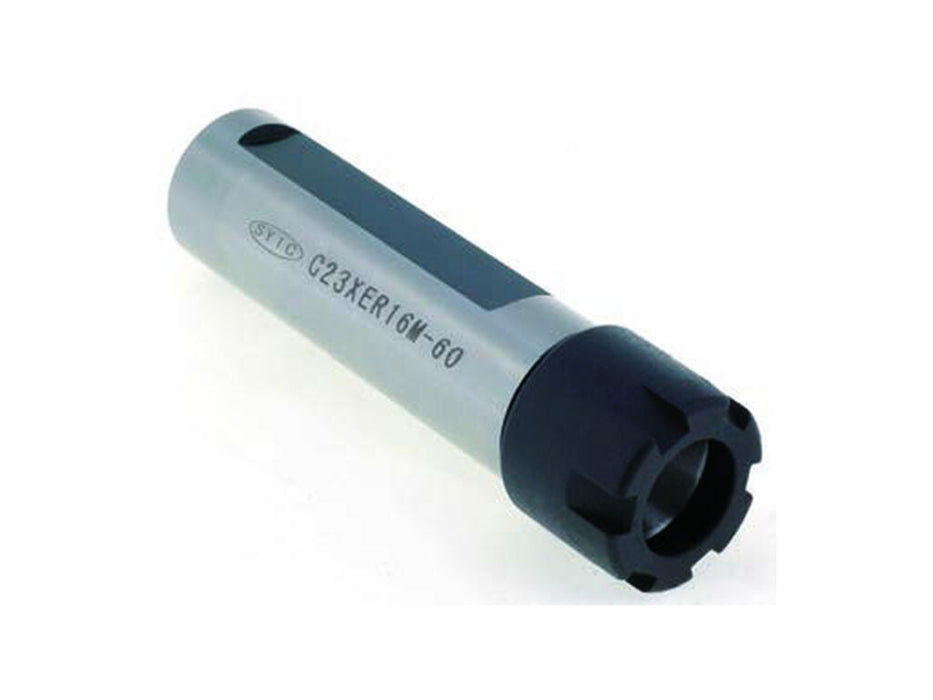

05288 : C23 x ER16M - 60
by Techniks USA
Original price
$117.90
-
Original price
$117.90
Original price
$117.90
$117.90
-
$117.90
Current price
$117.90
Specifications
| Item Number | 05288 |
|---|---|
| Item Description | 23mm Straight Shank Extension x ER16 - 60mm projection |
| Taper | C23 |
| Body Dia | 23mm |
| Shank Size | 23mm |
| Weight | 0.7 |
| Collet series | ER16 |
| Taper length | 26.6mm |
| Nose dia | 22mm |
| Projection Length | 60mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
