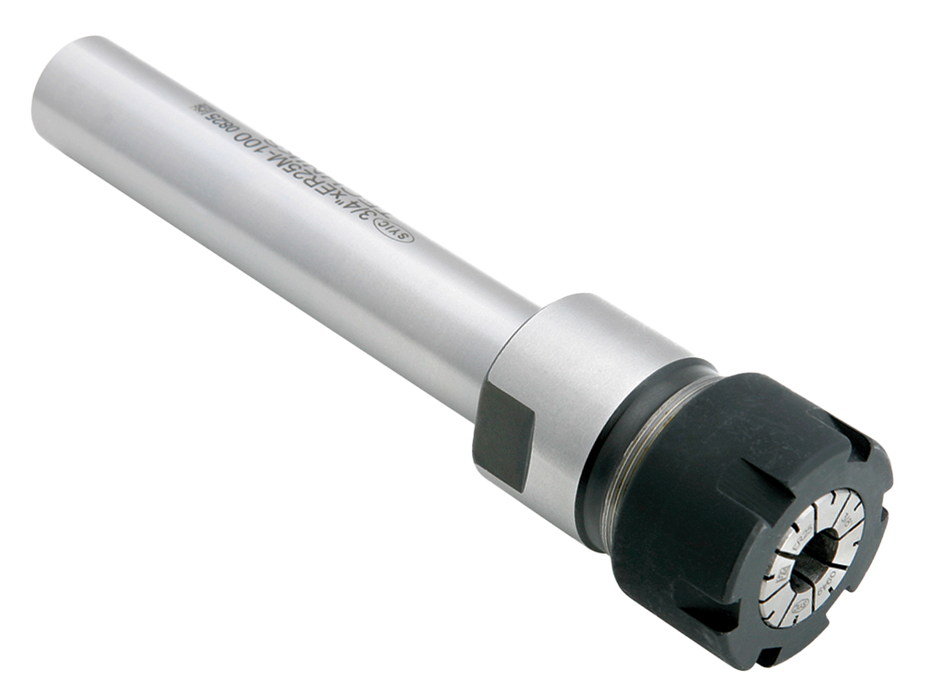

04898 : 3/4 x ER 25M - 100
by Techniks USA
Original price
$179.10
-
Original price
$179.10
Original price
$179.10
$179.10
-
$179.10
Current price
$179.10
Specifications
| Item Number | 04898 |
|---|---|
| Item Description | 3/4" Straight Shank Extension x ER25 - 100mm projection |
| Taper | STRSHK |
| Body Dia | 3/4" |
| Shank Size | 3/4" |
| Weight | 0.8 |
| Collet series | ER25 |
| Taper length | 38mm |
| Nose dia | 35mm |
| Thread | M30x1 |
| Projection Length | 100mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
