Specifications
| Item Number | 04897 |
|---|---|

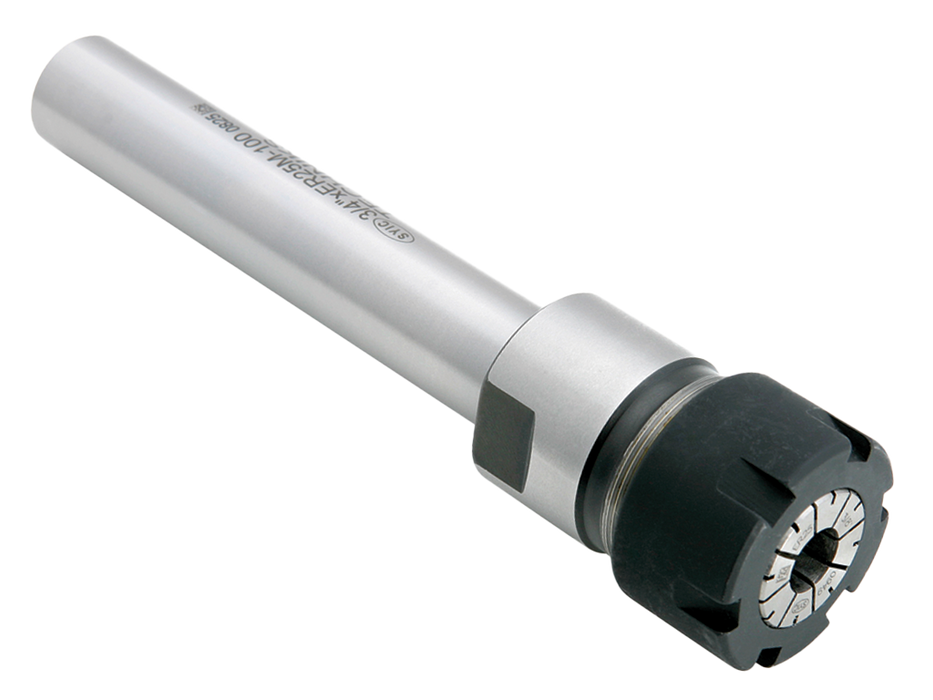

| Item Description | 1" Straight Shank Extension x ER20 - 140mm projection |
| Taper | STRSHK |
| Body Dia | 1" |
| Shank Size | 1" |
| Weight | 1.1 |
| Collet series | ER20 |
| Taper length | 28mm |
| Nose dia | 28mm |
| Projection Length | 140mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
