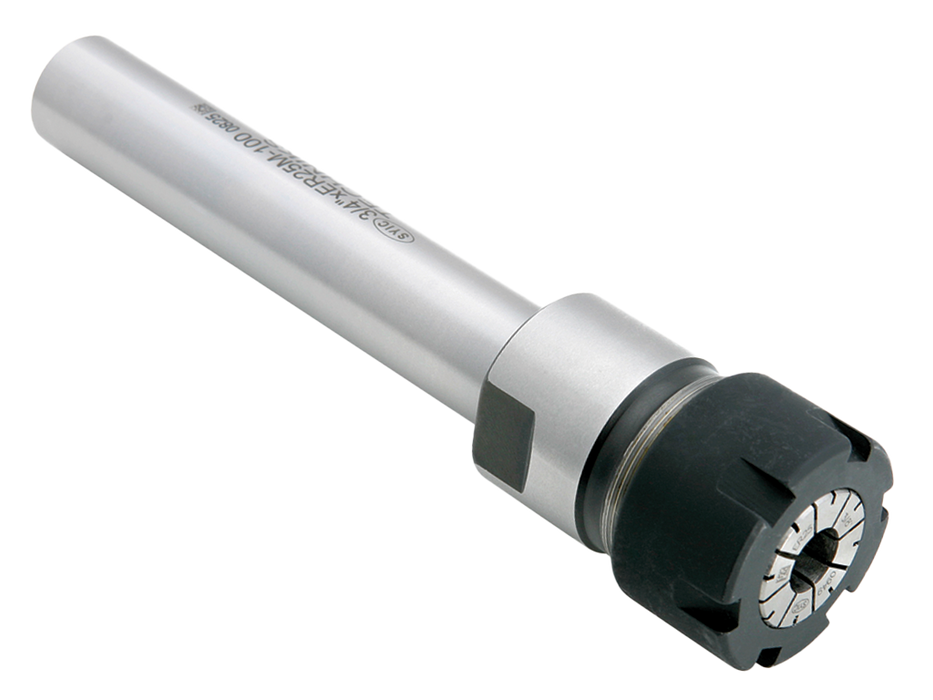

04893-ER16M-140 : 5/8" x ER 16M - 140
by Techniks USA
Original price
$134.10
-
Original price
$134.10
Original price
$134.10
$134.10
-
$134.10
Current price
$134.10
Specifications
| Item Number | 04893-ER16M-140 |
|---|---|
| Item Description | 5/8" Straight Shank Extension x ER16 - 140mm projection |
| Taper | STRSHK |
| Body Dia | 5/8 |
| Shank Size | 3/4" |
| Wrench | 04621 |
| Weight | 0.4 |
| Collet series | ER16 |
| Taper length | 37mm |
| Nose dia | 15.875mm |
| Projection Length | 140mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
