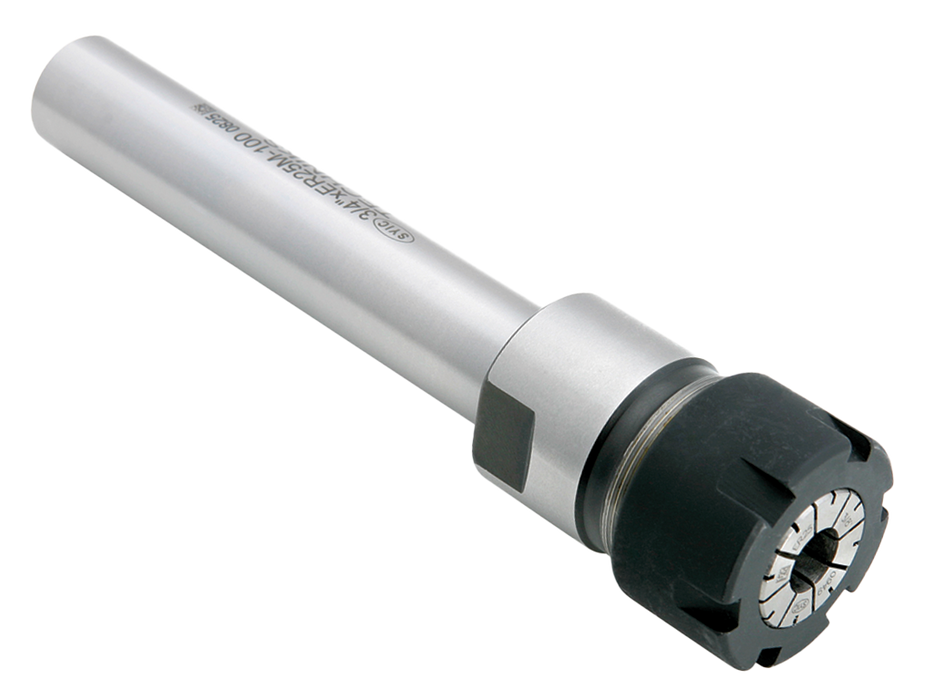

04892 : 1/2 x ER 20M - 140
by Techniks USA
Original price
$248.40
-
Original price
$248.40
Original price
$248.40
$248.40
-
$248.40
Current price
$248.40
Specifications
| Item Number | 04892 |
|---|---|
| Item Description | 1/2" Straight Shank Extension x ER20 - 140mm projection |
| Taper | STRSHK |
| Body Dia | 1/2" |
| Shank Size | 1/2" |
| Weight | 0.5 |
| Collet series | ER20 |
| Taper length | 40mm |
| Nose dia | 16mm |
| Projection Length | 140mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
