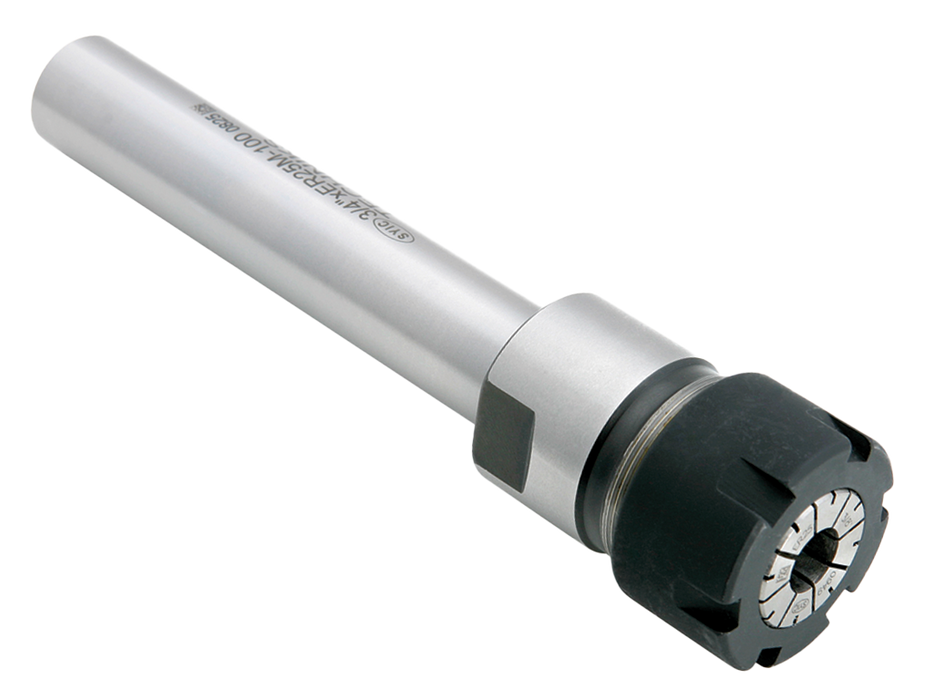

04808 : 1-1/4" x ER 32 Chuck with #41932 nut
by Techniks USA
Original price
$212.40
-
Original price
$212.40
Original price
$212.40
$212.40
-
$212.40
Current price
$212.40
Specifications
| Item Number | 04808 |
|---|---|
| Item Description | 1.25" Straight Shank Extension x ER32 - 55mm projection |
| Taper | STRSHK |
| Body Dia | 1-1/4" |
| Shank Size | 1.25" |
| Weight | 0.9 |
| Collet series | ER32 |
| Taper length | 60mm |
| Nose dia | 28mm |
| Thread | M12x1.75 |
| Projection Length | 55mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
