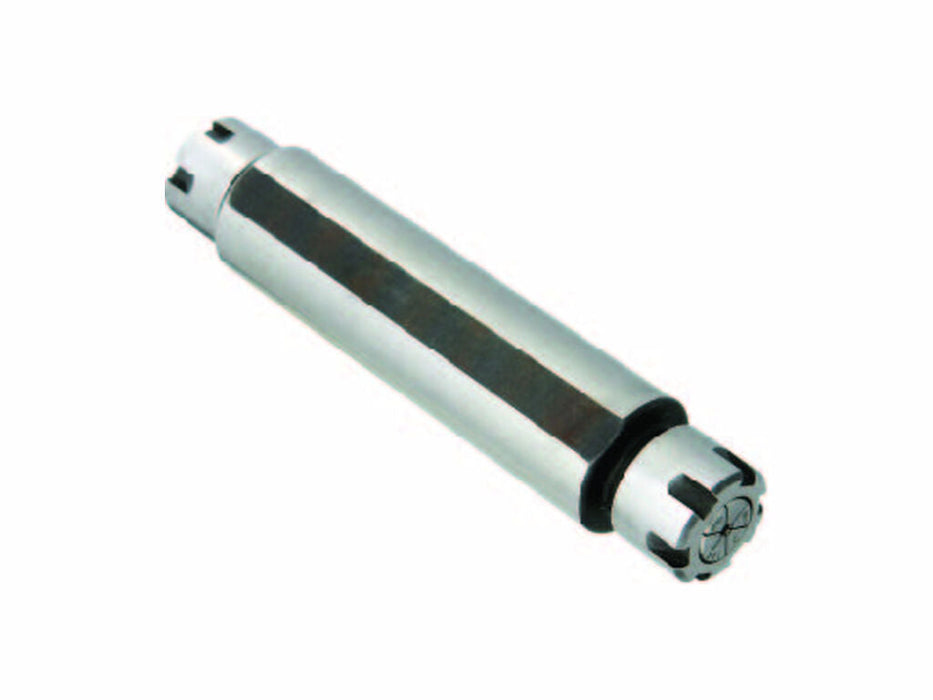

04804-DE : 3/4" x ER 11M - 5.0" double-ended
by Techniks USA
Original price
$206.10
-
Original price
$206.10
Original price
$206.10
$206.10
-
$206.10
Current price
$206.10
Specifications
| Item Number | 04804-DE |
|---|---|
| Item Description | 3/4" Double Ended Straight Shank Extension x ER11 - 28mm projection with mininut |
| Taper | STRSHK |
| Features | Double Ended. Mininut |
| Body Dia | 3/4" |
| Shank Size | 3/4" |
| Wrench | 04621 |
| Weight | 0.6 |
| Collet series | ER11 |
| Taper length | 95.4mm |
| Nose dia | 16mm |
| Thread | 1/4-18 |
| Projection Length | 28mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
