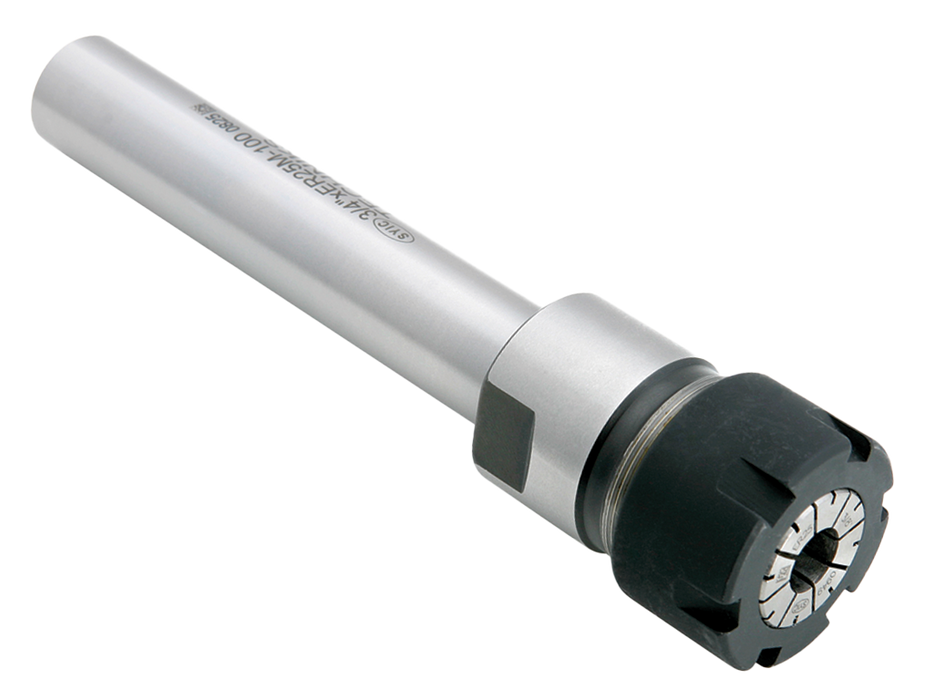

04804 : 3/4" x ER 16M - 4" with Mini Nut
by Techniks USA
Original price
$217.80
-
Original price
$217.80
Original price
$217.80
$217.80
-
$217.80
Current price
$217.80
Specifications
| Item Number | 04804 |
|---|---|
| Item Description | 3/4" Straight Shank Extension x ER16 - 100.6mm projection with mininut |
| Taper | STRSHK |
| Features | Mininut |
| Body Dia | 3/4" |
| Shank Size | 3/4" |
| Weight | 0.6 |
| Collet series | ER16 |
| Taper length | 10mm |
| Nose dia | 22mm |
| Thread | 1/4-18 |
| Projection Length | 100.6mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
