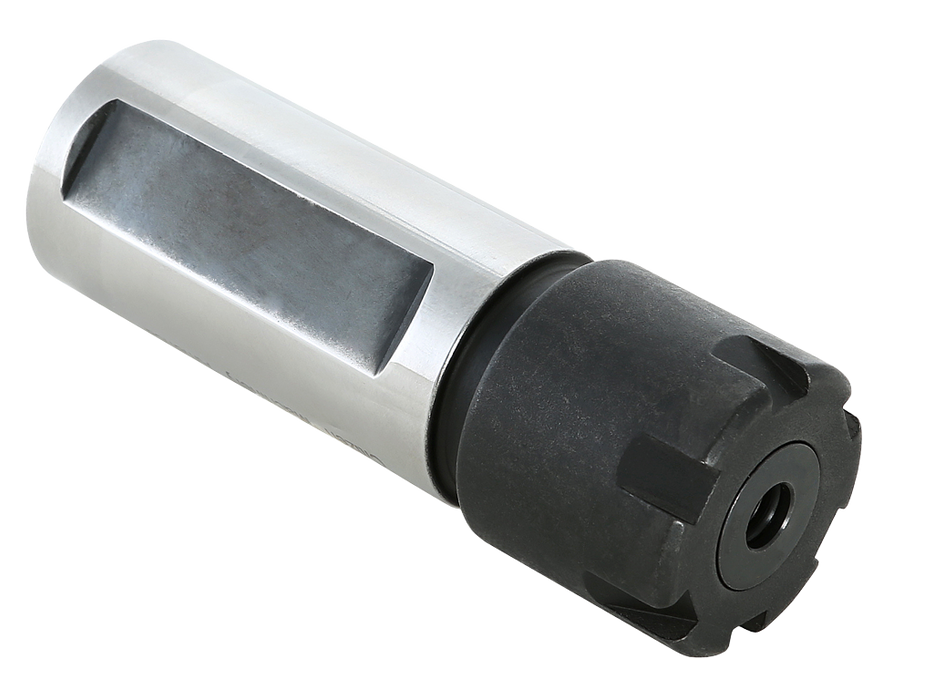

04802-C : 3/4" x ER 16M - 2" with coolant nut
by Techniks USA
Original price
$248.40
-
Original price
$248.40
Original price
$248.40
$248.40
-
$248.40
Current price
$248.40
Specifications
| Item Number | 04802-C |
|---|---|
| Item Description | 3/4" Straight Shank Extension x ER16 - 55.6mm projection with coolant nut |
| Taper | STRSHK |
| Features | Coolant nut |
| Body Dia | 3/4" |
| Shank Size | 3/4" |
| Wrench | 04621 |
| Weight | 0.3 |
| Collet series | ER16 |
| Taper length | 10mm |
| Nose dia | 22mm |
| Thread | 1/4-18 |
| Projection Length | 55.6mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
