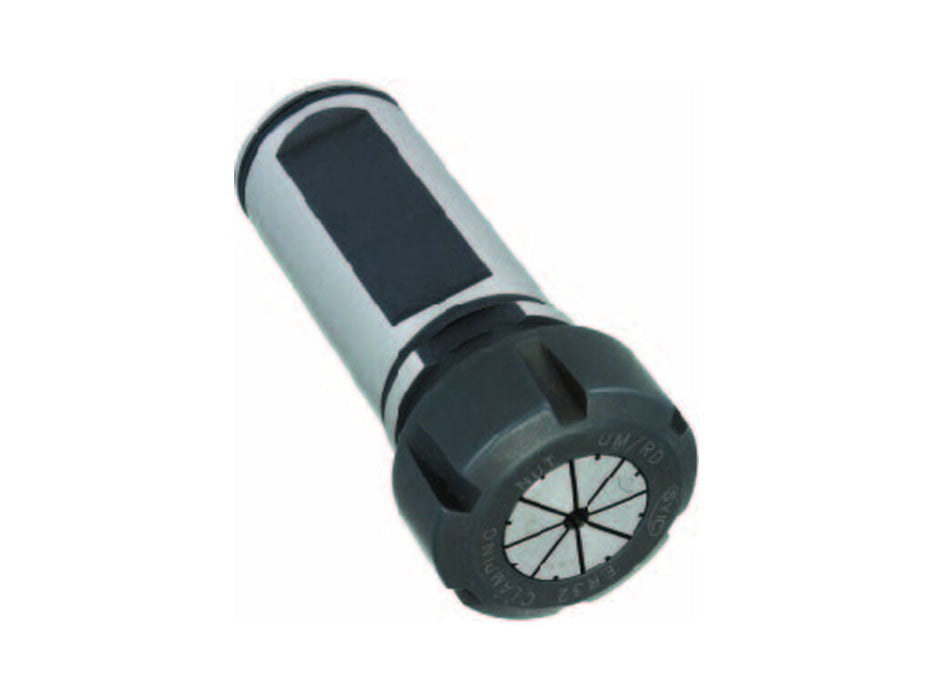

04790 : 1-1/2 x NC/ER 40 - 75
by Techniks USA
Original price
$254.70
-
Original price
$254.70
Original price
$254.70
$254.70
-
$254.70
Current price
$254.70
Specifications
| Item Number | 04790 |
|---|---|
| Item Description | 1.25" Straight Shank Extension x ER40 - 75mm projection |
| Taper | STRSHK |
| Body Dia | 1-1/4" |
| Shank Size | 1.25" |
| Weight | 2.9 |
| Collet series | ER40 |
| Taper length | 75mm |
| Nose dia | 63mm |
| Thread | M28x1.5 |
| Projection Length | 75mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
