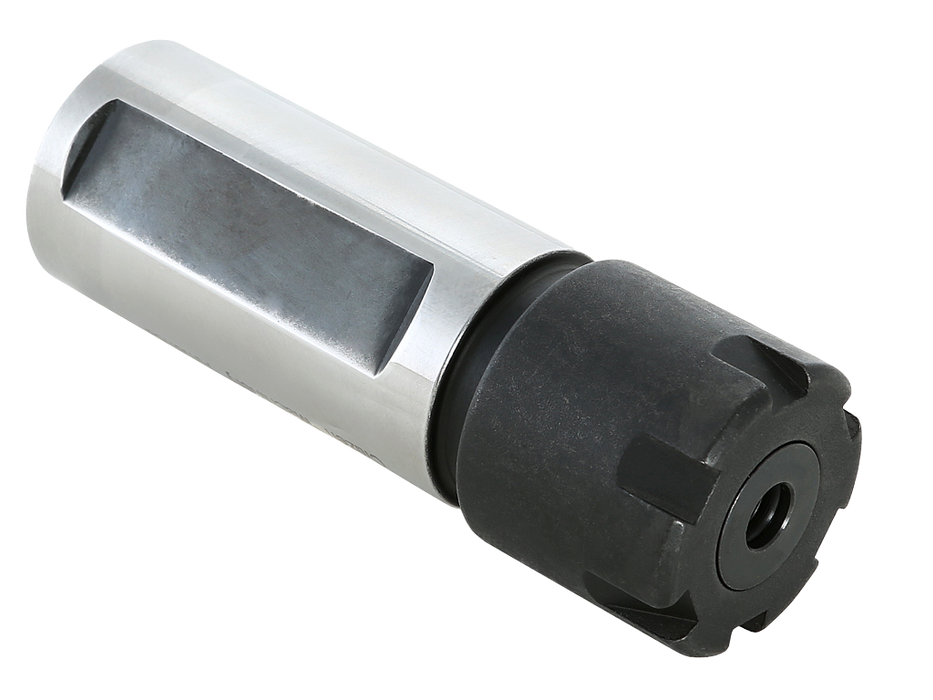

04788-C : 1 1/2" x NC/ER 32 -80 with coolant nut
by Techniks USA
Original price
$231.30
-
Original price
$231.30
Original price
$231.30
$231.30
-
$231.30
Current price
$231.30
Specifications
| Item Number | 04788-C |
|---|---|
| Item Description | 1.5" Straight Shank Extension x ER32 - 80mm projection |
| Taper | STRSHK |
| Body Dia | 1-1/2" |
| Shank Size | 1.5" |
| Wrench | 04616 |
| Weight | 2.8 |
| Collet series | ER32 |
| Taper length | 38mm |
| Nose dia | 50mm |
| Thread | M22x1.5 |
| Projection Length | 80mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
