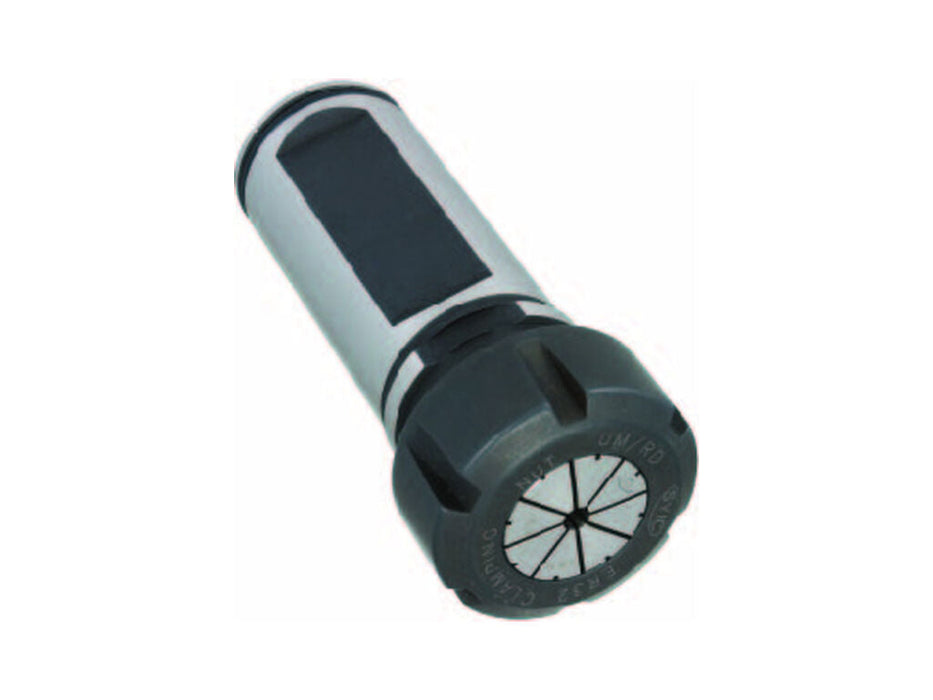

04782 : 1-1/4 x NC/ER 25 - 60
by Techniks USA
Original price
$219.60
-
Original price
$219.60
Original price
$219.60
$219.60
-
$219.60
Current price
$219.60
Specifications
| Item Number | 04782 |
|---|---|
| Item Description | 1.25" Straight Shank Extension x ER25 - 60mm projection |
| Taper | STRSHK |
| Body Dia | 1-1/4" |
| Shank Size | 1.25" |
| Weight | 1.5 |
| Collet series | ER25 |
| Taper length | 37mm |
| Nose dia | 42mm |
| Thread | M18x1.5 |
| Projection Length | 60mm |
Overview
**All images are representative images. Verify specifications before placing orders.** Techniks Tool Group Collet Chucks are designed to deliver excellent performance in a wide range of machining applications including milling,drilling,and tapping. Our exclusive PowerCOAT nuts come standard on all ER and TG Collet Chuck providing 75% more holding power on the tool shank vs. standard collet nuts for improved safety and reduce the potential of tool slippage. Collet pocket T.I.R. 0.0001"
