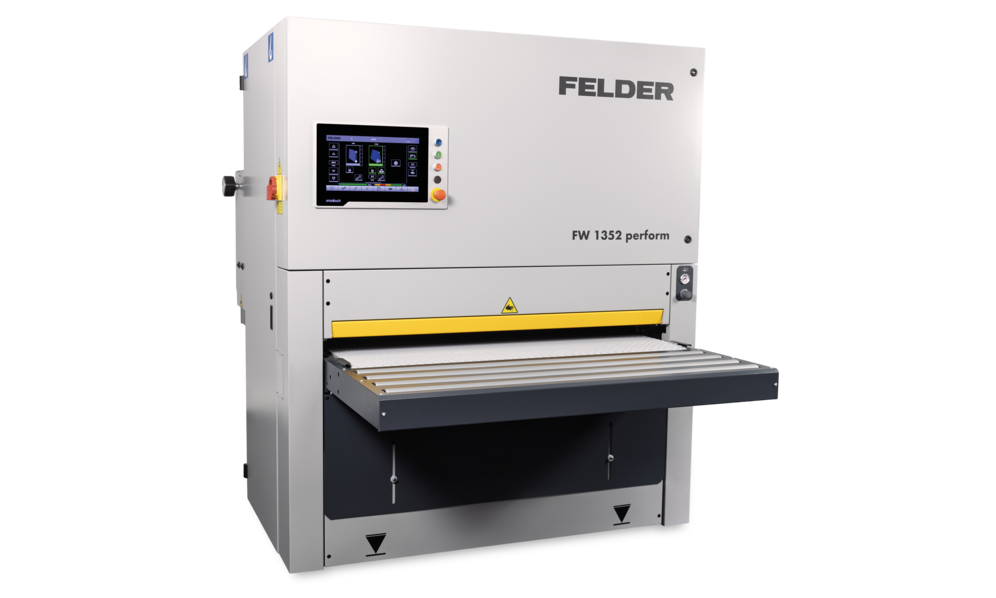

Felder | FW 1352 perform Wide Belt Sander

Professional Sanding for Exceptional Surface Finishing

With ultra-modern processing techniques, the furniture industry sets standards so high, that they are almost unachievable for standard cabinetmakers. To remain competitive, workpieces have to be finished to perfection at every stage. The Felder wide belt sanders FW 1102 perform and FW 1352 perform are an affordable introduction to professional woodworking and impress with high-quality system solutions as well as a complete package for precise intermediate lacquer sanding, even in the standard version.

• Combination sanding unit with electro-pneumatic segmented sanding pad / Contact roller unit / Sanding pad unit with electro-pneumatic segmented sanding shoe
• Manual or digital grain compensation
• Precise adjustment of the working height in 0.1 mm increments
• Continuous vacuum feed carpet with honeycomb structure for maximum power transmission and workpiece hold
• Pneumatic oscillation control of the sanding belt
• No tools necessary to change the sanding belt
• Intuitive control via 15" smartouch display
• Sanding pad unit or combination sanding unit with variable cutting speed
• Air jet cleaning for sanding belt

Key Features

Highlights

• Two Processing Units: Contact roller unit and combination sanding unit for pre-sanding and fine sanding in one step.
• 15" Smartouch Display: Intuitive control with precise height adjustments to 0.1 mm and unit activation/deactivation.
• Variable Feed Speed: Continuously adjustable from 2.5 to 18 m/min, adjustable during sanding.

Details

• Contact Roller Unit: 140 mm diameter, 85 Shore hardness roller allows up to 0.5 mm chip removal.
• Combination Sanding Unit: 45 Shore hardness roller with 27 mm segmented electro-pneumatic sanding shoe for veneered workpieces.
• Vacuum Feed Belt: Nubbed design with high-pressure fan support for smooth, small, and thin workpieces.
• Air Jet Cleaning Unit: Standard on the second unit to keep the sanding belt dust-free.
• Optional Roller Support: Available for infeed and outfeed to handle larger workpieces.
• BCO and GLP Features: Monitor belt wear and reduce power consumption with optional add-ons.
• Optional Brushing Facility: Cleans, polishes, or structures surfaces on the delivery side.

Technical Specifications
