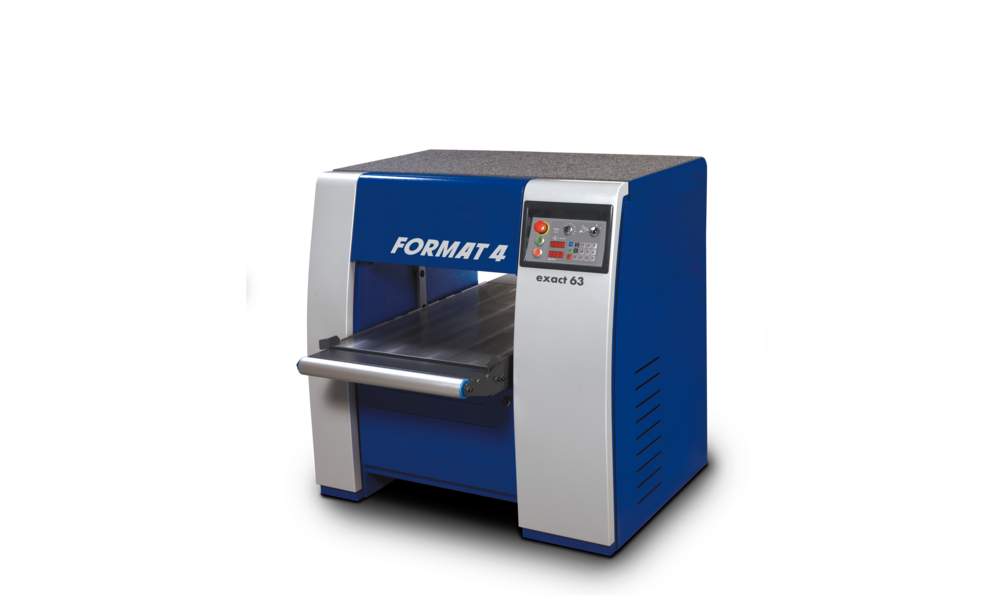

Format4 | exact 63 Planer

Format4 | exact 63 Planer

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

The Format4 exact 63 Planer-Jointer, with a 24 51/64" (630 mm) planing width, delivers outstanding performance for solid wood processing in carpentry and furniture production. Featuring a solid cast iron table, a choice of four cutting systems, and the optional Silent-Power® spiral blade cutterblock, it ensures precision, ease of use, and versatility. The variable feed speed and Digi-Drive controls make it ideal for professional woodworking.

Key Features

Highlights

  • Silent-Power®: Spiral blade cutterblock reduces noise by 50%, provides tear-free planing, and lowers operating costs with up to 20 times longer blade life (optional).
  • Digi-Drive: Programmable jointing table control with numeric keypad for precise positioning, LED displays for target/actual values, incremental adjustments, and 4 programmable positions.
  • Feeder Device: Variable feed speed (5–20 m/min) for optimal finish or quick thickness calibration.

Details

  • Change the Blades in Record Time: 4-knife system cutterblock with knife changes in under two minutes, self-aligning knives, no resin buildup, and economical blade costs.
  • Thickness Planing with 4-Knife System Cutterblock: 4 23/32" cutting circle with 4 blades for performance, precision, and comfort.
  • Infeed Rollers: Suspended rollers lift gently for large depth of cut processing.
  • Power-Drive: Electric height adjustment with knob for quick adjustments, button for fine-tuning, and LED display for actual values.
  • Adjustable Integrated Bed Rollers: Optional rollers for processing resinous or moist workpieces.
  • Table Extension: Stable extension with outfeed workpiece roller for increased comfort.
  • Outstanding Stability and Long-Lasting Precision: Four trapezoidal support spindles ensure precision and high load-bearing capacity, with vertical guides for accurate table positioning.
  • Support Roller: Optional infeed roller and lubrication unit for wet or resinous wood.
  • Scissor Lifting Table: Optional 45 9/32" extension for jointing table support.

Technical Specifications

Category Details
Electrics
  • 3x 400 V motor voltage (standard), 3x 230 V (choice)
  • 50 Hz (standard) or 60 Hz motor frequency (choice)
  • Motor options: 7.35 kW (10 HP, standard), 10 kW (13.5 HP, optional), 15 kW (20 HP, optional with 3x400V)
  • Star-delta start (standard)
  • Optional potential-free contact, operating hour meter, 3-phase CEE coupling for power feeder with emergency stop
Cutterblock
  • Planing width: 630 mm
  • Cutterblock options: 4-knife Format4-system (standard), 4-knife TERSA/MBM, or Silent-Power spiral (95 knives, optional)
  • Cutterblock diameter: 120 mm
  • Rotation speed: 5000 rpm
Jointer and Feed Gears
  • Jointing width: 630 mm
  • Jointing table size: 630 x 1050 mm
  • Min.-max. jointing height: 3–300 mm
  • Min. workpiece length: 270 mm
  • Max. depth of cut: 10 mm
  • Variable feed speed: 5–20 m/min
  • Electric height adjustment for jointing table with Power-Drive digital display (standard)
  • Optional Digi-Drive for preselected position control
  • Optional 24 51/64" jointer table workpiece roller on infeed side
  • Optional automatic lubricant application with infeed workpiece roller
  • Optional 2 adjustable rollers under jointing table (0–0.5 mm)
  • Rubber infeed roller, 3 11/32" (optional)
  • Steel segmented infeed roller, spiral toothed, 3 11/32" (standard)
  • Rubber outfeed roller, 3 11/32" (optional)
  • Steel outfeed roller, micro teeth, 3 11/32" (standard)
  • Optional second steel or rubber-coated outfeed roller, 3 11/32"
  • Spring-loaded pressure bar on outfeed (standard)
  • Segmented pressure beam at infeed (standard)
General
  • Extraction connection: 160 mm (mountable left or right)
  • Weight: 1050 kg (standard configuration)
Accessories
  • Optional coupling system for table extension with F-coupling (outfeed side)
  • Optional table extension with workpiece roller: 24 51/64" x 22 7/16"
  • Optional scissor lifting table for jointing table extension
  • Optional IPPC packaging
  • Optional container packaging
