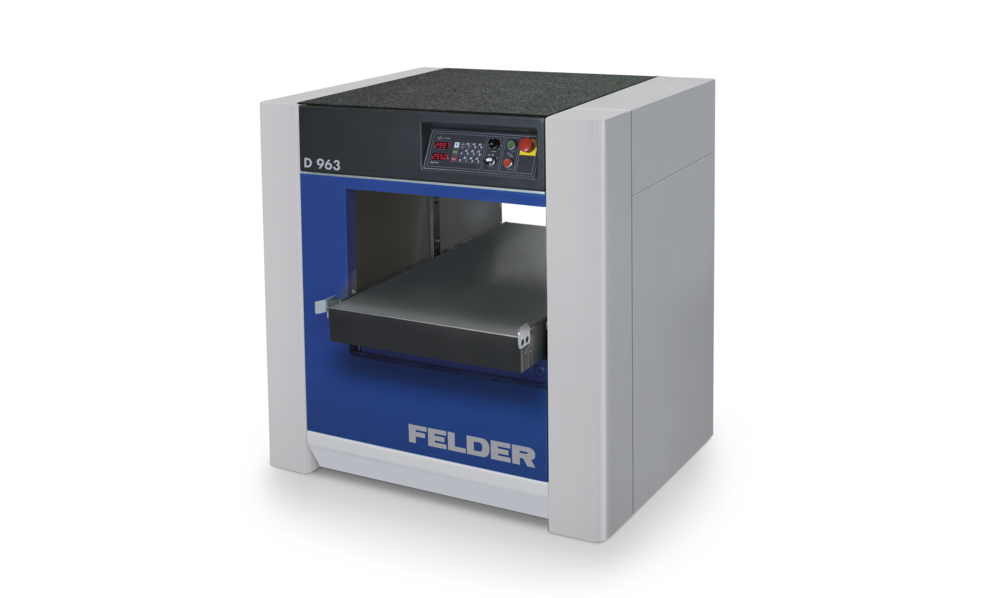

Felder | D 963 Planer

Felder D 963 Planer – FAQs

What is the Felder D 963 Planer and what woodworking tasks is it designed for?

The Felder D 963 Planer is a **heavy-duty professional thickness planer** engineered to produce flat, consistent surfaces and precise finished thickness on solid wood and engineered panel materials. With a wide **630 mm (24.8″) planing width**, it is designed for demanding thicknessing workflows in cabinetry, furniture parts, millwork, and industrial woodworking. :contentReference[oaicite:0]{index=0}

Who should choose the D 963 Planer?

This machine is ideal for **cabinetmakers, custom furniture manufacturers, millwork shops, and industrial woodworkers** that need a robust planer capable of handling wide stock and high workloads while maintaining precision and repeatability. :contentReference[oaicite:1]{index=1}

What are the primary use cases for the D 963?

The D 963 excels at:

• Thickness planing boards and panel stock to precise finished thickness.
• Preparing surfaces for sanding, assembly, and finishing.
• Processing wide boards (up to 630 mm) commonly used in cabinetry and furniture components.
• Supporting repetitive thicknessing in high-volume production settings.

These use cases make it particularly valuable for shops focused on **cabinet doors, wide panels, and large component processing**. :contentReference[oaicite:2]{index=2}

What are the key performance specifications of the D 963?

The D 963 offers a **630 mm thicknessing width**, **thickness range from ~3 mm to 300 mm**, and a **variable feed speed of 4–16 m/min** for optimized finish and throughput. Maximum cut depth per pass is ~8 mm. It features a heavy precision thicknessing table and robust cast-iron components built for durability. :contentReference[oaicite:3]{index=3}

How does variable feed speed improve planing performance?

Variable feed speed lets operators match feed rate to wood species and desired surface quality — **slower speeds for fine finishes and faster for material removal or high throughput**. This flexibility enhances surface consistency and reduces tear-out across diverse materials. :contentReference[oaicite:4]{index=4}

What cutterblock options are available and why do they matter?

The D 963 typically comes with a **4-knife Felder system cutterblock** and can be equipped with a **Silent-Power® spiral cutterblock**. The spiral cutterblock reduces noise emissions by more than 50 %, delivers **tear-free surfaces**, extends blade life significantly (up to ~20×), and improves chip extraction, lowering operating costs. :contentReference[oaicite:5]{index=5}

What advanced control options are available?

The D 963 can include **Power-Drive** electronic thickness table adjustment for precise height control with LED feedback and **Digi-Drive** positioning control that allows programmable thickness value entry and automatic table positioning with display of required vs actual values. :contentReference[oaicite:6]{index=6}

What materials can the D 963 process?

The D 963 is engineered for solid hardwoods, softwoods, plywood, MDF, and other engineered panels with proper tooling and dust extraction. Some configurations (e.g., c-tech variant) support plastic processing with optimized cutter geometry and rubberized feed rollers. :contentReference[oaicite:7]{index=7}

How does the D 963 compare with smaller thickness planers?

Compared with smaller planers like the D 951, the D 963’s **630 mm width** accommodates larger, wider boards — a significant advantage for cabinetry panels and furniture components. It also offers more advanced control options, heavier duty components, and higher precision repeatability, making it more suitable for high-volume or industrial use. :contentReference[oaicite:8]{index=8}

How does the D 963 compare with combo jointer-planers?

Dedicated thickness planers like the D 963 deliver superior thicknessing performance, heavier construction, and broader feed control compared with jointer-planer combos. While combo units add flattening capability, the D 963 focuses on **precision thicknessing and high throughput**, making it ideal when thickness accuracy and planed finish quality are a priority. :contentReference[oaicite:9]{index=9}

What safety and ergonomic features are included?

Standard and optional features include **spring-loaded pressure bars** to prevent fluttering on thin stock, **rubber or segmented infeed/outfeed rollers** for gentle or variable material transport, and robust cast-iron construction for vibration-free operation. The intuitive controls and LED displays enhance ease of use. :contentReference[oaicite:10]{index=10}

What electrical and motor options are available?

The D 963 supports multiple three-phase electrical configurations (e.g., 3×400 V, 3×230 V) with motor options up to **10 kW (13.5 HP)** depending on shop power standards and performance requirements. Optional star-delta start may be necessary with larger motors. :contentReference[oaicite:11]{index=11}

Is the Felder D 963 a worthwhile investment for professional woodworking?

Yes. With Austrian engineering quality, heavy-duty precision components, advanced cutter options, variable feed speed, and optional electronic controls (Power-Drive and Digi-Drive), the Felder D 963 Planer delivers **high-quality surface finishes, workflow efficiency, and resilience** valuable for cabinet, furniture, and millwork production environments. :contentReference[oaicite:12]{index=12}
