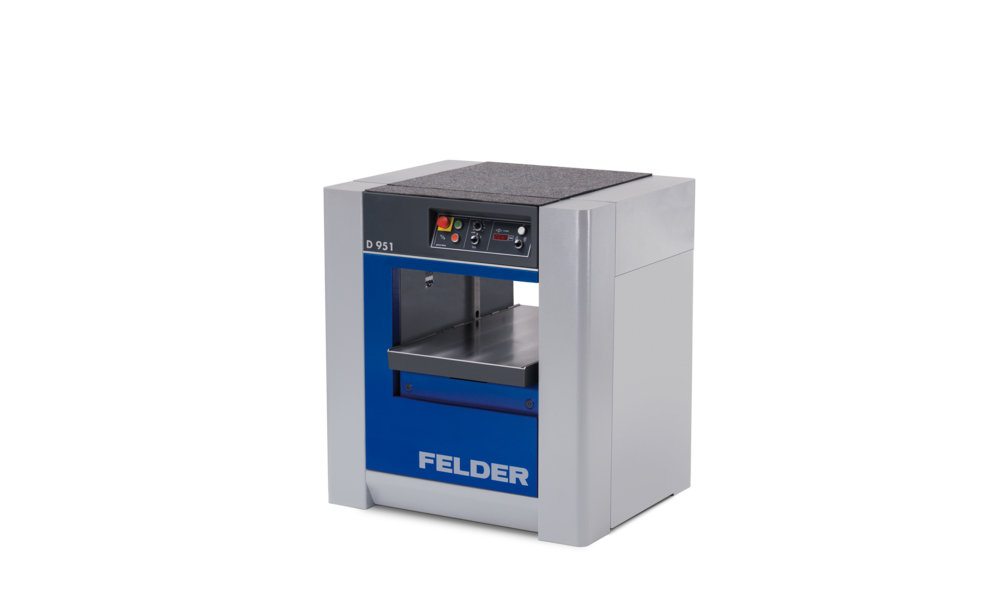

Felder | D 951 Planer

The Felder D 951 Planer offers exceptional precision and quality with a 20 5/64" (504 mm) planing width, designed for professional woodworking. Featuring a solid cast iron table, self-aligning Felder system cutterblock, and optional Silent-Power® spiral knife cutterblock, it ensures perfect planing results for solid wood. The variable feed speed and intuitive controls like Digi-Drive enhance performance and ease of use.

Key Features

Highlights

• Variable Infeed: Adjustable feed speed (13–52 ft/min) ensures optimal planing results for various wood types and grains.
• Digi-Drive: Programmable thicknessing table control with numeric keypad for precise, automatic positioning; includes LED displays for target and actual values, with incremental adjustments and 4 programmable positions.

Details

• Cutterblock Housing: Solid cast iron housing built for heavy-duty work, with optional rubberized outfeed rollers; pressure beams and rubber/segmented infeed rollers handle varying workpiece widths.
• Felder System Cutterblock: 4 knife cutterblock with quick knife changes (under 2 minutes), self-aligning knives, no resin buildup, and smooth operation.
• Power-Drive: Fully electrical thicknessing table control for quick, precise height adjustments with fine-tuning via button and LED display (optional).
• Silent-Power® Spiral Knife Cutterblock: Reduces noise by 50%, offers tear-free planing, up to 20 times longer blade life, four cutting edges per knife, and optimized chip extraction (optional).
• Spring Loaded Segmented Pressure Beam: Prevents fluttering for thin workpieces or varying thicknesses, recommended with rubberised infeed roller.
• Dust Extraction Hood: Efficient design with ample chip space for ideal chip extraction and a clean working surface.
• Perfect Planing Technology: Two pressure bars prevent fluttering, especially for thinner workpieces during thicknessing.
• Trapezoidal Threaded Spindle: Four spindles ensure precision and high load-bearing capacity, with longitudinal guides absorbing feed pressure.
• Adjustable Under Table Roller: Optional rollers for processing resinous or moist workpieces.
• Scissor Lifting Table: Optional 1150 mm extension for thicknessing table support.
• Workpiece Roller on the Infeed Side: Optional infeed roller for electrical thicknessing bed adjustment, steel powder-coated (optional).
• Table Extension: 22 7/16" long table extension with outfeed workpiece roller for simultaneous processing of multiple workpieces.

Technical Specifications
