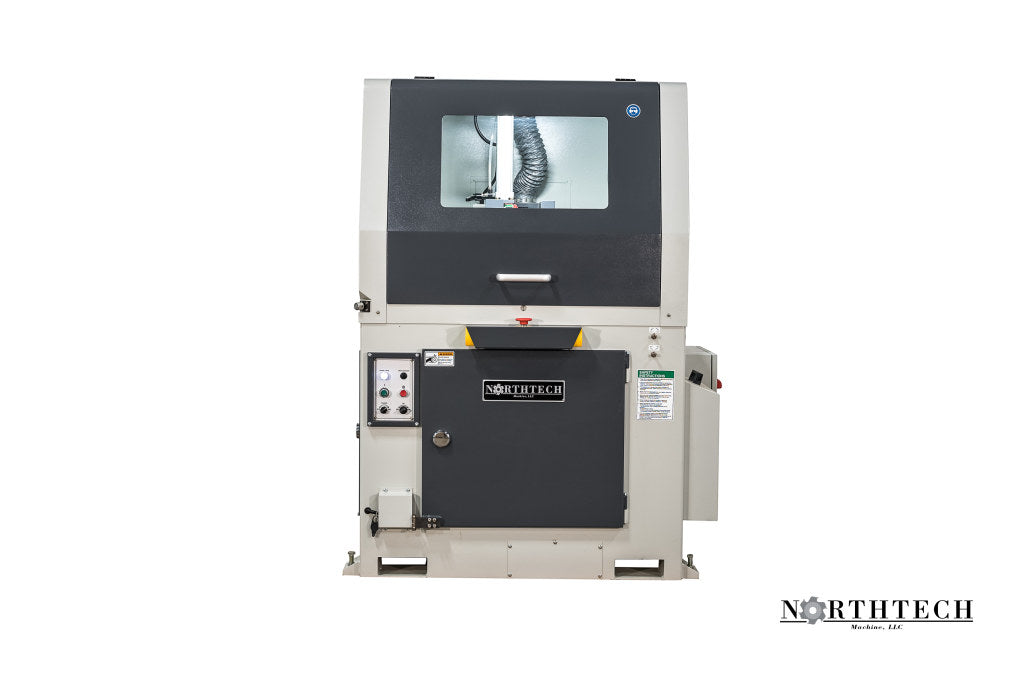

NORTHTECH MACHINE | NT-CS24RT UP CUT SAW ROTARY TABLE
The NT-CS24RT Up Cut Saw is a powerful upcut with 24″ blade and a rotary table allowing it to cut angles in product. Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely. The Rotary Table Machines are not hand specific so you can feed parts from the left to the right or the right to the left on the same machine. The Rotary table design allows for the operator to change to specific pinned angles such as 15, 30, 60 and 90 degree cuts or anywhere in between by spinning the turret. Using a 24″ diameter blade the CS24RT has the largest cut capacity available on 90-15 degree angles. This machine comes standard with stroke speed control, emergency stop, safety switch, safety enclosure guarding and stroke adjustments for the blade and the top clamp making it ideal for wood and plastic application. The CS24RT has several available options such as two handed cycle operation, infeed/outfeed tables, chromed machine table and safety interlocked cabinet doors for restricted operator access.
MAIN MOTOR HP: 10 HP
VOLTAGE, FREQUENCY: 230/460 Volt 60Hz
PHASE: 3 Phase
AMP REQUIREMENT: 27/13.5 Amp
APPROVED ELECTRICAL PARTS: CE Approved Components
DUAL VOLTAGE MOTORS: c CE Approved Components
CONTROL VOLTAGE: 220 Volt
PASS-LINE: 39-1/2''
CUTTING ENVELOPE: 1'' x 15-5/8'' - 8-5/8'' x 2''
MAX. WORKING WIDTH: 1'' x 15-5/8''
MAX. WORKING THICKNESS: 8-1/2''
ABLE TO CUT ANGLE: 0-60 Degrees
ARBOR RPM: 2060 RPM
BLADE SIZE: 24'' Carbide Tipped
NO. OF TEETH ON BLADE: 120 Tooth
Specifications
What is NORTHTECH MACHINE | NT-CS24RT UP CUT SAW ROTARY TABLE?
NORTHTECH MACHINE | NT-CS24RT UP CUT SAW ROTARY TABLE is listed by Centex Automation. The NT-CS24RT Up Cut Saw is a powerful upcut with 24 blade and a rotary table allowing it to cut angles in product.
What does the product page describe?
Upcut Saws house the blade inside the cabinet of the machine and use a double action cylinder to hold and cut the product safely.
What additional detail is listed?
The Rotary Table Machines are not hand specific so you can feed parts from the left to the right or the right to the left on the same machine.
How do I get pricing?
Contact Centex Automation for current price, freight, and lead time, or use live storefront pricing when shown.
What brand support applies?
Centex Automation - Built by People Who Know the Shop Floor - helps shops select the right machinery, tooling, and consumables.
Is install, training, or service included?
Setup, training, or service may be available; do not assume they are included. Ask Centex Automation.
Who typically looks at NORTHTECH MACHINE | NT-CS24RT UP CUT SAW ROTARY TABLE?
Shops evaluating NORTHTECH MACHINE | NT-CS24RT UP CUT SAW ROTARY TABLE for woodworking or related production use. Confirm fit with Centex Automation.
What should I confirm before ordering?
Confirm model fit, options, lead time, and whether the listing is web-buy or quote-only with Centex Automation.
Should I invent specs not on the page?
No. Use only facts stated on the live product page or ask Centex Automation.
What else does the listing mention?
The Rotary table design allows for the operator to change to specific pinned angles such as 15, 30, 60 and 90 degree cuts or anywhere in between by spinning the turret.
Any further description points?
Using a 24 diameter blade the CS24RT has the largest cut capacity available on 90-15 degree angles.
