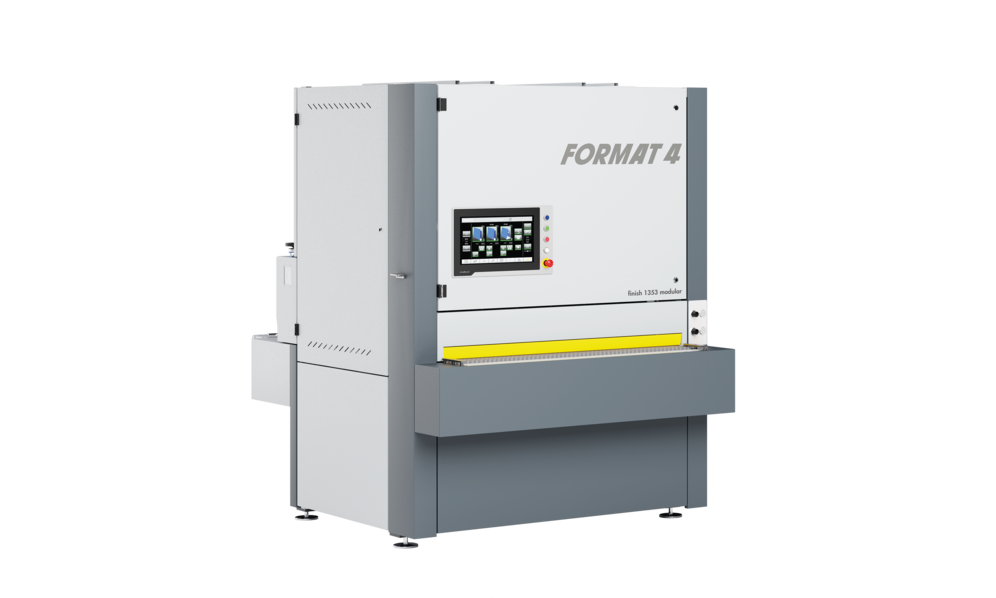

Format4 | finish 1353 modular Wide Belt Sander

Format4 | finish 1353 modular Wide Belt Sander

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

Flexible Precision Sanding for Industrial Excellence

Wide belt sander with cutterblock planing head The finish 1352 modular and 1353 modular wide-belt sanding machines impress with their unique flexibility. Either as a 2 or 3 belt machine – you can decide the individual equipment and configuration of the processing units. The free aggregate configuration option enables the optimal adaption to your requirements which ensures maximum efficiency and maximum time saving.

  • New: Cutterblock planer head with 1350 mm processing width positioned on the machine infeed side
  • Simple operation with innovative control concept
  • Convincing machine details for effortless, tool-free handling and quick changeover

Key Features

Highlights

  • 18" Smartouch Control: Intuitive display with infeed height adjustable to 0.1 mm for maximum productivity.
  • Cutterblock Planing Head: Optional first unit for maximum cutting performance, controllable via central panel.
  • Variable Feed Speed: Continuously adjustable from 2.8–20 m/min for optimal material adaptation.

Details

  • Contact Roller Aggregate: 180 mm diameter, 85° Shore hardness for precise calibration.
  • Electro-Pneumatic Sanding Pad: Prevents veneered surface damage with exact height adjustment.
  • Vacuum Table: High-pressure fan holds smooth, small, or thin workpieces securely.
  • Optional Roller Extensions: Available for infeed and outfeed to support larger workpieces.
  • Automatic Thickness Measurement: Wireless option adjusts to workpiece thickness without additional tools.
  • BCO and GLP Features: Optional monitoring of belt wear and power-saving functions.
  • Optional Touchscreen Control: Enhances operating comfort with graphical interface and 0.1 mm precision adjustments.

Technical Specifications

Category Details
Sanding Unit
  • Sanding width: 1350 mm
  • Configurable as 2 or 3 belt machine
  • Optional cutterblock planing head
  • Feed speed: 2.8–20 m/min
General
  • 18" Smartouch display (standard)
  • Vacuum table (optional)
  • Optional touchscreen control
Specifications

What is the Felder Format4 Finish 1353 Modular Wide Belt Sander?

The Felder Format4 Finish 1353 Modular Wide Belt Sander is a heavy-duty sanding machine designed for professional surface finishing of wood, panels, and other materials used in cabinet manufacturing, furniture production, and architectural millwork.

What applications is the Finish 1353 Modular Wide Belt Sander best suited for?

The Finish 1353 is ideal for final sanding and surface preparation of cabinet parts, doors, panels, furniture components, and large workpieces where uniform surface quality is required before coating, veneering, or assembly.

How does a wide belt sander improve surface finishing?

A wide belt sander provides consistent, repeatable sanding across large workpiece surfaces, reducing swirl marks, uneven grain, and surface imperfections compared to manual sanding or smaller sanding machines.

What materials can the Felder Format4 Finish 1353 process?

The Finish 1353 can process hardwoods, softwoods, plywood, MDF, veneered panels, solid surfaces, and other engineered wood products commonly used in cabinetry and furniture production.

Who should consider the Finish 1353 Modular Wide Belt Sander?

The Finish 1353 is suited for cabinet manufacturers, custom woodworking shops, furniture producers, and architectural millwork operations that require professional-grade surface finishing with high consistency and throughput.

How does the Finish 1353 compare to manual sanding?

Compared to manual sanding, the Finish 1353 delivers greater consistency, faster processing, reduced labor, and more uniform surface results, improving overall finish quality and reducing rework time.

Is the Finish 1353 suitable for production environments?

Yes. The Finish 1353 Modular Wide Belt Sander is engineered for mid-to-high production environments, delivering dependable performance and smooth surface finish across frequent sanding tasks.

What modular features does the Finish 1353 offer?

The modular design of the Finish 1353 allows for configurable sanding heads, adjustable feed speeds, and easy integration with dust collection and production lines, making it adaptable to a variety of sanding and workflow requirements.

Where is the Felder Format4 Finish 1353 Wide Belt Sander manufactured?

Felder Format4 machinery is built to high industrial standards. For specific country-of-origin details on the Finish 1353, please contact Centex Automation.

Is financing available for the Felder Format4 Finish 1353 Modular Wide Belt Sander?

Yes. The Finish 1353 Wide Belt Sander is available with flexible financing options, allowing shops to invest in advanced sanding capability while managing capital expenditures. Financing options are available through Centex Automation.
