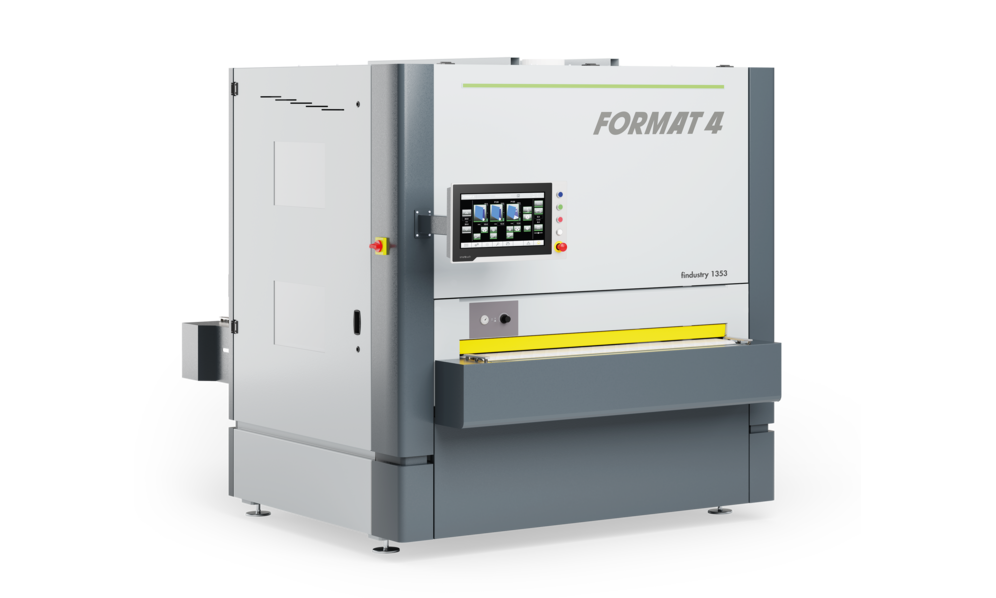

Format4 | findustry 1353 Wide Belt Sander

Format4 | findustry 1353 Wide Belt Sander

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

Industrial-Grade Sanding for Custom Surface Finishing

Industrial top performance, freely configurable FORMAT4 findustry 1352 | 1353 | 1354 - The new wide belt sanding machines for individual requirements. The new FORMAT4 wide belt sanding machines findustry convince in industrial use above all by the individually configurable combination of the units. The machine can be equipped with two, three or four units, precisely adapted to the specific use and the respective field of application. Thus, a high degree of customisation guarantees that all requirements are met with regard to surface finish and processing efficiency.

Maximum operating comfort in industrial use.

The clearly structured and intuitive display provides maximum productivity. The units and functions are clearly displayed on the 18" smartouch and the infeed height can be set accurately to a tenth of a millimetre. As an option, the automatic thickness measurement (TDP) facilitates adjustment of the machine to the desired workpiece thickness. The fixed infeed table height of 900 mm for easy and effortless work, a vacuum table, table extensions with rollers on the inlet and outlet sides as well as optional pressure shoes on the sanding units ensure the best possible comfort and ideal machining conditions for workpieces in every format.

Key Features

Highlights

  • 18" Smartouch Display: Intuitive control with infeed height adjustable to 0.1 mm for maximum productivity.
  • Automatic Thickness Measurement (TDP): Optional feature adjusts to workpiece thickness wirelessly for precision.
  • Configurable Units: Supports three units, including contact roller, sanding pad, and additional options.

Details

  • Contact Roller Aggregate: 180 mm diameter, 85° Shore hardness for accurate calibration.
  • Electro-Pneumatic Sanding Pad: Prevents veneered surface damage with precise height adjustment.
  • Vacuum Table: High-pressure fan holds smooth, small, or thin workpieces securely.
  • Variable Feed Speed: Continuously adjustable from 2.8–20 m/min for optimal material adaptation.
  • Optional Roller Extensions: Available for infeed and outfeed to support larger workpieces.
  • BCO and GLP Features: Optional monitoring of belt wear and power-saving functions.

Technical Specifications

Category Details
Sanding Unit
  • Sanding width: 1350 mm
  • Configurable with three units (e.g., contact roller, sanding pad, cross sanding)
  • Feed speed: 2.8–20 m/min
General
  • Fixed infeed table height: 900 mm
  • Vacuum table (optional)
Specifications

What is the Format4 Findustry 1353 Wide Belt Sander?

The Format4 Findustry 1353 Wide Belt Sander is a professional industrial sanding machine designed for high-quality surface finishing of wood, panels, and large components used in cabinet manufacturing, furniture production, and architectural millwork.

What applications is the Findustry 1353 best suited for?

The Findustry 1353 is ideal for intermediate and final sanding of cabinet parts, doors, finished panels, furniture components, and other woodwork where uniform surface texture and smoothness are required before coating, veneering, or assembly.

How does a wide belt sander improve surface finishing?

A wide belt sander provides consistent, repeatable sanding across broad panel surfaces, reducing swirl marks, uneven grain patterning, and surface imperfections compared to manual sanding or smaller machines, resulting in a more uniform finish ready for downstream processes.

What materials can the Format4 Findustry 1353 process?

The Findustry 1353 can process hardwoods, softwoods, plywood, MDF, veneered panels, HPL/LPL surfaces, and other engineered wood products commonly used in cabinetry, furniture production, and millwork.

Who should consider the Findustry 1353 Wide Belt Sander?

The Findustry 1353 is suited for cabinet manufacturers, high-volume woodworking shops, furniture producers, and architectural millwork operations that require professional-grade surface sanding with precision and throughput.

How does the Findustry 1353 compare to manual sanding?

Compared to manual sanding, the Findustry 1353 delivers greater consistency, higher throughput, reduced labor, and more uniform surface quality, improving overall efficiency and reducing rework
