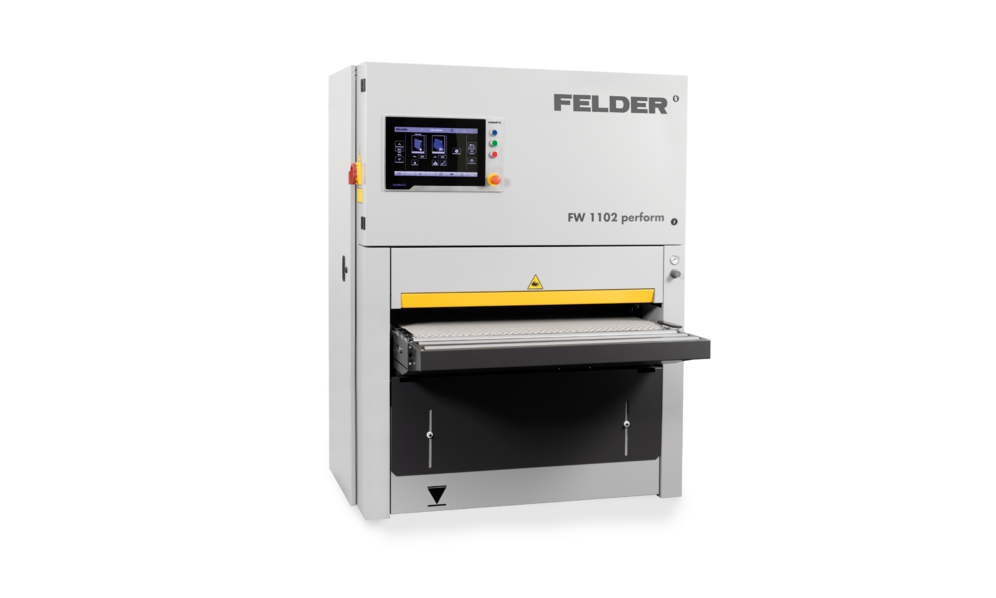

Felder | FW 1102 perform Wide Belt Sander

Felder | FW 1102 perform Wide Belt Sander

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

Professional Sanding for Exceptional Surface Finishing

With ultra-modern processing techniques, the furniture industry sets standards so high, that they are almost unachievable for standard cabinetmakers. To remain competitive, workpieces have to be finished to perfection at every stage. The Felder wide belt sanders FW 1102 perform and FW 1352 perform are an affordable introduction to professional woodworking and impress with high-quality system solutions as well as a complete package for precise intermediate lacquer sanding, even in the standard version.

  • Combination sanding unit with electro-pneumatic segmented sanding pad / Contact roller unit / Sanding pad unit with electro-pneumatic segmented sanding shoe
  • Manual or digital grain compensation
  • Precise adjustment of the working height in 0.1 mm increments
  • Continuous vacuum feed carpet with honeycomb structure for maximum power transmission and workpiece hold
  • Pneumatic oscillation control of the sanding belt
  • No tools necessary to change the sanding belt
  • Intuitive control via 15" smartouch display
  • Sanding pad unit or combination sanding unit with variable cutting speed
  • Air jet cleaning for sanding belt

Key Features

Highlights

  • Segmented Electro-Pneumatic Sanding Shoe: 25 mm wide segments adapt to workpiece size for frame and lacquer sanding.
  • 15" Smartouch Display: Intuitive control with digital grit adjustment and precise height settings to 0.1 mm.
  • Variable Feed Speed: Continuously adjustable from 2.5 to 18 m/min, adjustable during sanding.

Details

  • Contact Roller Aggregate: Grooved and rubberized roller (85 Shore) enables up to 0.5 mm chip removal for calibration.
  • Vacuum Feed Belt: Nubbed design with high-pressure fan support for smooth, small, and thin workpieces.
  • Thickness Detection Professional: Automatic height adjustment via fiber optic and laser sensors.
  • Optional Roller Support: Available for infeed and outfeed to handle larger workpieces.
  • BCO Feature: Monitors sanding belt wear to prevent irregular wear.
  • Optional Brushing Facility: Cleans, polishes, or structures surfaces on the delivery side.

Technical Specifications

Category Details
Sanding Unit
  • Sanding width: 43" (1100 mm)
  • Contact roller aggregate with 85 Shore hardness
  • Segmented electro-pneumatic sanding shoe
  • Feed speed: 2.5–18 m/min
General
  • Vacuum feed carpet with honeycomb structure (standard)
  • Pneumatic oscillation control (standard)
Specifications

What is the Felder FW 1102 Perform Wide Belt Sander?

The Felder FW 1102 Perform Wide Belt Sander is a professional surface finishing machine engineered to deliver consistent, high-quality sanding of panels, boards, and wood components used in cabinet manufacturing, furniture production, and architectural millwork.

What applications is the FW 1102 Perform best suited for?

The FW 1102 Perform is ideal for intermediate sanding, fine finishing, and surface preparation of cabinet doors, panels, furniture parts, solid wood boards, and other wood-based workpieces that require smooth, uniform surfaces before finishing or assembly.

How does a wide belt sander improve surface finishing?

A wide belt sander provides even, repeatable sanding across broad surfaces, eliminating swirl marks, uneven grain patterns, and surface imperfections compared to manual sanding or smaller machines, resulting in a surface ready for coatings, veneer, or final finish.

What materials can the Felder FW 1102 Perform process?

The FW 1102 Perform can process hardwoods, softwoods, plywood, MDF, veneered panels, HPL/LPL-faced surfaces, and other engineered wood products commonly used in cabinetry and furniture manufacturing.

Who should consider the FW 1102 Perform Wide Belt Sander?

The FW 1102 Perform is suited for cabinet manufacturers, custom woodworking shops, furniture builders, and architectural millwork operations that require professional-grade surface finishing with consistent results and moderate-to-high throughput.

How does the FW 1102 Perform compare to manual sanding?

Compared to manual sanding, the FW 1102 Perform delivers greater consistency, faster processing, reduced labor, and more uniform surface quality, improving overall finish quality and reducing rework time.

Is the FW 1102 Perform suitable for production environments?

Yes. The FW 1102 Perform Wide Belt Sander is engineered for mid-to-high production environments, providing dependable performance, repeatable results, and robust operation for frequent sanding tasks.

What advanced features does the FW 1102 Perform offer?

The FW 1102 Perform offers features such as adjustable sanding head configurations, variable feed speeds, precision pressure control, and compatibility with dust collection systems, allowing customization for different materials and surface finish requirements.

Where is the Felder FW 1102 Perform Wide Belt Sander manufactured?

Felder machinery is produced to high industrial standards. For specific country-of-origin details on the FW 1102 Perform, please contact Centex Automation.

Is financing available for the Felder FW 1102 Perform Wide Belt Sander?

Yes. The FW 1102 Perform Wide Belt Sander is available with flexible financing options, allowing shops to invest in advanced surface finishing capability while managing capital expenditures. Financing options are available through Centex Automation.
