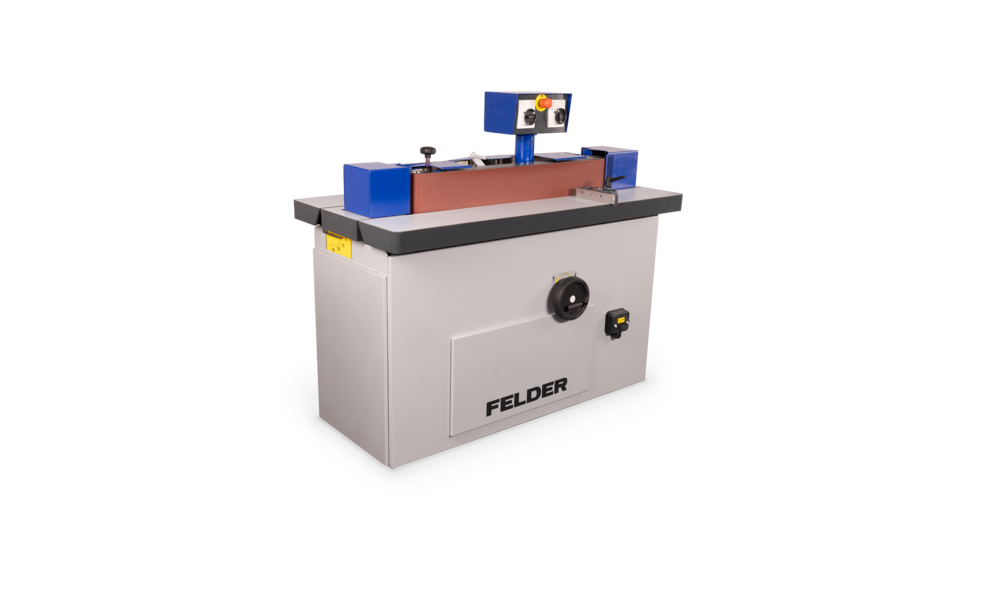

Felder | FS 900 K Edge Sander

Precision Edge Sanding for Professional Results

The Felder FS 900 K Edge Sander delivers clean and precise edge sanding for wood and panel materials. Featuring an oscillating sanding belt, a continuously adjustable tilting table (90°–45°), and a height-adjustable table, it ensures efficient edge processing and extended belt life with a robust cast iron table and open design for long workpieces.

Key Features

Highlights

• Oscillating Sanding Belt: Independent oscillating motor maximizes 5⅞" (150 mm) belt width usage, enhancing durability and sanding quality.
• Tiltable Sanding Table: Adjusts from 90° to 45° for precise angular sanding.
• Height-Adjustable Table: 5⅞" (150 mm) adjustment for optimal belt utilization and versatility.

Details

• Additional Table and Sanding Shaft: Optional table (14.0.951) and sanding shaft/drum (14.0.952) for curved and radius sanding.
• Table Extension: Optional lowerable and extendable table (14.0.950), retrofittable to other Felder machines, for oversized workpieces.
• Belt Drive Rollers: 3⅛" and 6¼" diameter rollers ensure smooth belt operation at 11 m/sec (optional 8 or 11 m/sec with 2-speed motor).
• Dust Extraction: 120 mm connection with optional below-table extraction for efficient chip removal.
• Optional Rolling Carriage: Enhances mobility for flexible workshop setups.

Technical Specifications
