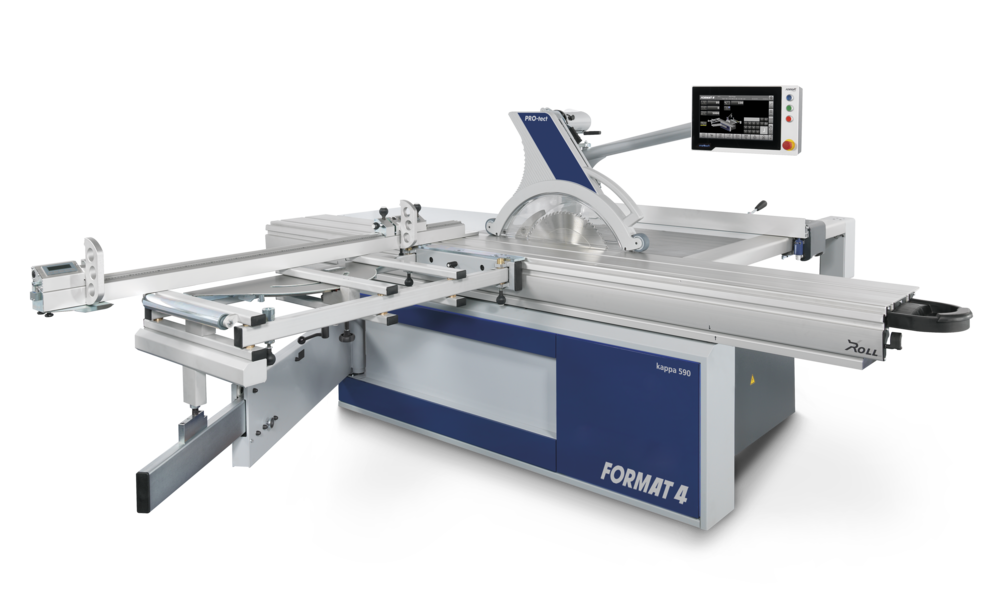

Format4 | Kappa 590 x-motion Sliding Table Panel Saw

Format4 | Kappa 590 x-motion Sliding Table Panel Saw

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

The Format4 kappa 590 Sliding Table Panel Saw sets a new benchmark for premium panel saws with its double pivoting saw unit (±46°) and a cutting height of up to 7 61/64" (202 mm). Featuring a highly efficient synchronous motor, intuitive 15" touchscreen control, and the “X-Roll” sliding table, it ensures precision, productivity, and safety for professional woodworking, including plastics and composites with c-tech options.

Key Features

  • Cutting Dimensions: Cutting length 31 1/2"–80 45/64" (800–2050 mm), rip capacity 31 1/2"–49 7/32" (800–1250 mm), cutting height up to 7 61/64" (202 mm).
  • Double Pivoting Saw Unit: ±46° pivoting for mitre cuts, compound cuts, and grooves in any position.
  • “X-Roll” Sliding Table: X-shaped rollers for smooth, durable operation with a 10-year warranty.
  • “Easy-Glide” System: Maintenance-free, dust-resistant tilting mechanism with a 6-year warranty.
  • Smartouch Control: 15" touchscreen with USB interface, network connection, and programs for rebates, grooves, notches, angle cuts, oblique cuts, false mitres, compound cuts, and geometric shapes (e.g., pyramid, staircase).
  • Synchronous Motor: Continuously adjustable speed (2000–5000 rpm) for optimal torque and efficiency.
  • Scoring Unit: 3-axis “Control” with 5 29/32" (150 mm) blade, park position, and automatic adjustments.
  • Extraction System: Overhead saw guard with below-table extraction for optimal dust and chip removal.
  • Ardis Cutting Optimization Software: Integrated for efficient work steps and cutting plans.
  • Label Printer: Enhances post-processing with barcode scanning for CNC and edgebander programs.
  • Electronic Double Cut Mitre Gauge: Precise mitre cuts with calculated angles and length compensation up to 53 5/32" (1350 mm).
  • Multiple Position Locking: Stainless steel latch plate for locking the sliding table in any position.

Technical Specifications

Category Details
Electrics
  • 3x 400 V motor voltage (standard), 50 Hz or 60 Hz motor frequency
  • Motor options: 7.5 kW (standard, e-motion), 10 kW (standard, e-motion; optional, x-motion), 14 kW (optional, both models)
  • Speed: 2000–5000 rpm (7.5 kW, 10 kW), 2000–4000 rpm (14 kW)
  • Optional extractor switch contact
Panel Saw Drive
  • Saw blade diameter: 11 13/16"–21 21/32" (300–550 mm)
  • Max cutting height: 5 63/64" (152 mm) with 7.5 kW motor, 7 61/64" (202 mm) with 10/14 kW motor
  • Position-controlled height and angle adjustment (±46°)
  • Optional tool compartment with LED lighting for 4 blades (up to 15 3/4") and 1 blade (up to 21 21/32") plus 2 riving knives
  • Optional spraying unit for light metals/plastics
  • Scoring unit: 3-axis “Control,” 1.1 kW, 5 29/32" (150 mm) blade, 3.0–3.8 mm adjustment range, park position
  • “Easy-Lock” or “Quick-Lock” tool-free blade change systems
  • Scoring unit status light (optional)
  • Saw table with extension up to 47 1/4" (standard) or 63 25/32" (optional), anodised aluminum
Control Systems
  • e-motion: 15" touchscreen with USB interface, network connection, and optional e-motion plus software (geometric functions: knee bar, parallelogram, trapezoid, etc.)
  • x-motion: 15" touchscreen with USB interface and network connection
  • Optional plug connection for overhead saw guard removal
Safety Devices
  • Adjustable overhead guard for ±46°, height-adjustable with hoods for 90° and mitre cuts
  • Optional remote unlocking for saw guard
Cutting Width and Parallel Fence
  • Rip capacity: 39 3/8" (1000 mm, standard), 49 7/32" (1250 mm, optional), 62 63/64" (1600 mm, optional)
  • Position-controlled rip fence with digital display (49 7/32" standard on e-motion, optional on x-motion)
  • Optional digital display with automatic cutting width compensation
  • Parallel fence with fine adjustment, 47 1/4" length, can be swung away
Anodised Sliding Table, “X-Roll” Guiding System
  • “X-Roll” options: 86 39/64" (2200 mm), 110 15/64" (2800 mm), 125 63/64" (3200 mm)
  • Optional multiple locking mechanism and on/off switch
Outrigger Tables and Crosscut Fences
  • Outrigger table: 49 7/32" x 25 19/32" (1250 x 650 mm) with “X-Roll” or parallelogram adjustment
  • Crosscut fence options: 125 63/64" (3200 mm) with 2 crosscut stops, 74 51/64" (1900 mm) with digital stop, or 125 63/64" with analogue stop
  • Optional “digi-compensation plus” for angle/length compensation
  • Optional extendable frame with workpiece roller up to 19 11/16" or swing-away device
Accessories
  • Optional parts list holder with A4 clipboard
  • Optional thermal label printer with bracket
  • Optional container transport preparation

Additional Features

  • Pneumatic Workpiece Holder: Clamping height 3 47/64" (95 mm), 661 lbs (300 kg) force, compatible with all sliding tables.
  • Transport and Mounting Unit: For easy outrigger table removal and storage.
  • Silent-Power® Saw Blades: Available via Felder Group online shop.
