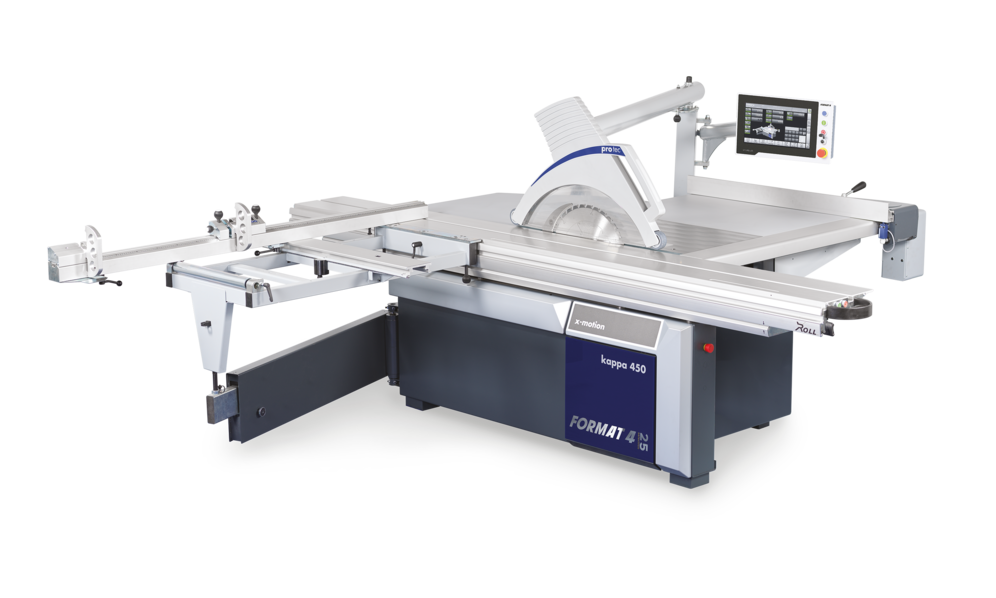

Format4 | Kappa 450 x-motion Sliding Table Panel Saw

Format4 | Kappa 450 x-motion Sliding Table Panel Saw

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

The Format4 kappa 450 Sliding Table Panel Saw is a high-precision premium machine with a 67/64" (155 mm) cutting height, combining state-of-the-art technology with intuitive user-friendliness. Featuring the patented “X-Roll” sliding table, maintenance-free “Easy-Glide” saw unit, and the optional PCS® safety device, it delivers exceptional performance and safety for professional woodworking.

Key Features

  • Cutting Dimensions: Cutting length 8045/64"–14543/64" (2050–3700 mm), cutting width 311/2"–591/16" (800–1500 mm), cutting height 67/64" (155 mm).
  • “X-Roll” Sliding Table: X-shaped hardened steel rollers for smooth, durable operation with a 10-year warranty.
  • “Easy-Glide” System: Maintenance-free, dust-resistant tilting mechanism with a 6-year warranty.
  • PCS® Preventive Contact System (Optional): World’s fastest non-contact safety device, detects hazards in milliseconds, lowers blade without damage, and is ready for reuse instantly.
  • Smartouch Control (x-motion): 10" touchscreen with tool database, cutting programs, import/export capabilities, and remote maintenance.
  • “Power-Drive” Control (kappa 450): Quick and fine adjustments for cutting height and angle with LED display for precise values.
  • Saw Unit “155”: 67/64" (155 mm) cutting height with 1723/32" (450 mm) blade, tool-free blade change, and Poly-V belt for maximum power transmission.
  • Scoring Unit: Options include “Classic,” “Automatic,” 2-axis, or 3-axis “Control” with 423/32" (120 mm) or 529/32" (150 mm) blade, plus park position.
  • Crosscut Fence: Supports crosscuts up to 12563/64" (3200 mm), with precise mitre index system and optional digital stops.
  • Extraction System: Overhead saw guard and below-table extraction for optimal dust and chip removal.
  • Ardis Cutting Optimisation Software: Integrated for efficient work steps and cutting plans.
  • Label Printer: Enhances post-processing with barcode scanning for CNC and edgebander programs.

Technical Specifications

Category Details
Electrics
  • 3x 400 V or 3x 230 V motor voltage
  • 50 Hz or 60 Hz motor frequency
  • Motor options: 5.5 kW (7.5 HP), 7.35 kW (10 HP), or 10 kW (13.5 HP); optional 7.35 kW with 2000–6000 rpm
  • Speeds: 3500/4500/5500 rpm (3500/4500 rpm with 10 kW motor)
  • Star-delta start standard
  • Optional extractor switch contact, operating hour meter (standard on x-motion)
Saw and Scoring Unit
  • Saw blade diameter: 927/32"–1723/32" (250–450 mm)
  • Max cutting height: 67/64" (155 mm) at 90°, 419/64" (109 mm) at 45°
  • Electrical height and angle adjustment with LED display (standard on kappa 450, x-motion via touchscreen)
  • Optional tool compartment for 4 blades up to 153/4" (400 mm)
  • Dado capability up to 19.5 mm
  • Optional spraying unit for light metals/plastics
  • Scoring unit options: “Classic,” “Automatic,” 2-axis, or 3-axis “Control,” 1.1 kW, 423/32" (120 mm) or 529/32" (150 mm) blade
  • “Easy-Lock” or “Quick-Lock” tool-free blade change systems
  • Scoring unit status light (mandatory with PCS®)
Control
  • kappa 450 x-motion: 10" touchscreen with USB interface, network connection, and program storage
  • Optional PCS® Preventive Contact System (available 2024)
  • Optional plug-in connection for overhead saw guard removal
Safety Devices
  • Overhead guard with hoods for 90° and mitre cuts, height-adjustable
  • Optional laser cutting line marker
Cutting Width and Rip Fence
  • Rip capacity: 311/2" (800 mm), optional 497/32" (1250 mm) or 591/16" (1500 mm)
  • Optional digital display or position-controlled rip fence with automatic compensation
Format Sliding Table
  • “X-Roll” options: 8045/64" (2050 mm), 9827/64" (2500 mm), 11015/64" (2800 mm), 12563/64" (3200 mm), 14543/64" (3700 mm)
  • Anodised table standard, optional on/off switch
Outrigger Tables and Crosscut Fences
  • Outrigger table: 591/16" (1500 mm) or 4ft x 2ft (1250 x 650 mm) with “X-Roll” or parallelogram adjustment
  • Crosscut fence options: 435/16" (1100 mm), 12563/64" (3200 mm), or 13355/64" (3400 mm) with digital stops
  • Optional precision mitre index system, “digi-compensation plus” for angle/length compensation
General
  • Working height: 890 mm
  • Min. transport width: 1000 mm
  • Extraction connection: 120 mm (unit), 100 mm (saw guard)
  • Weight: 930 kg (kappa 450), 950 kg (x-motion)
Accessories
  • Optional parts list holder with A4 clipboard
  • Optional container packaging

Additional Features

  • Pneumatic Workpiece Holder: Clamping height 33/4" (95 mm), 660 lbs (300 kg) force, compatible with all sliding tables.
  • Transport and Mounting Unit: For easy outrigger table removal and storage.
  • Silent-Power® Saw Blades: Available via Felder Group online shop.
