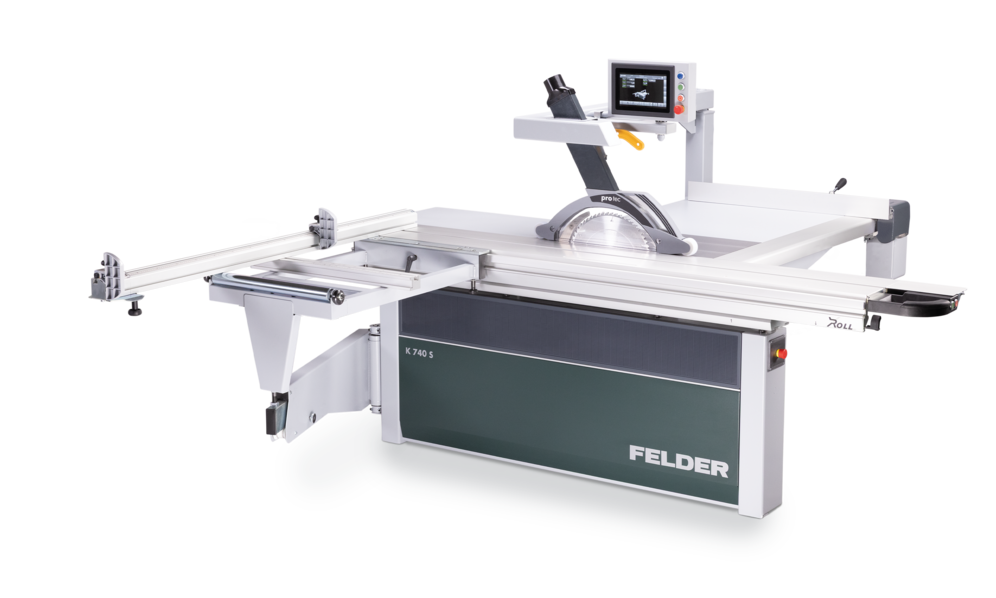

Felder | K 740 S x-motion Sliding Panel Table Saw

Perfection at the touch of a button: the new FELDER K 740 S x-motion sliding table panel paw

Imagine each cut being perfect from the very start, complex operations turning into child's play and your productivity reaching a new level.

The FELDER K 740 S equipped with x-motion brings this vision to life. Discover the fusion of intelligent control and robust power - for woodworking that inspires.

Intelligent power and intuitive operation: The K 740 S x-motion thinks with you! The electric motor-controlled rip fence and programmable cutting sequences, controlled by our smart, in-house software, make precision both plannable and repeatable. All axes can be operated intuitively and ergonomically via the central 10-inch touchscreen control panel - giving you quite simply full control.

Power meets precision - the centrepiece: The industrial-sized, high-performance circular saw unit is a powerhouse capable of mastering even the most demanding tasks with a maximum cutting height of 140 mm (with a saw blade Ø of 400 mm). The optionally available, electrically driven scoring unit (Ø 120 mm) in combination with a Ø 350 mm main saw blade ensures tear-free cuts in coated panel materials.

Efficiency in every move: The tiltable saw unit with its precision double suspension not only guarantees exact angle and height adjustments, it also redefines efficiency. The support provided by solid, ball-bearing mounted outrigger tables (Professional and S models) leaves nothing to be desired in terms of stability and load-bearing surface.

Durability you can rely on: Invest in a secure future! The legendary "X-Roll" format sliding table - with its dust-proof guide system - is absolutely maintenance-free and ensures perfect woodworking for many years to come. It comes with a 10-year FELDER factory warranty! You also receive a 6-year factory warranty on the patented tilt segment "Easy-Glide". That's FELDER reliability that pays off.

Safety and cleanliness - without compromises: To ensure the best possible dust extraction and maximum work safety, the K 740 S is equipped with the innovative, swivelling FELDER overhead saw guard. You can focus on your work, while we take care of everything else.

The smart rip fence - precision to a tenth of a millimetre: Just one touch is all it takes: Guided by a high-precision linear guiding system with recirculating ball screw bearings, the rip fence moves quickly to the desired position with an accuracy of a tenth of a millimetre. For repeatable cutting results, saving time and minimising errors.

More than only wood - boundless variety of materials: Expand your range of machining options! On request, we can equip your K 740 S with continuously adjustable speed control and minimum quantity lubrication system. This allows you to process non-ferrous metals, plastics and composite materials with equal precision and perfection.

The new FELDER K 740 S x-motion: more than just a sliding table saw - it's your reliable partner in achieving outstanding results and efficient production. Now is the time to switch to this new dimension in woodworking!

Key Features

Highlights

• Intelligent x-motion Control: Features a 10-inch touchscreen control panel with electric motor-controlled rip fence and programmable cutting sequences, enabling intuitive, ergonomic operation and repeatable precision for enhanced productivity.
• High Cutting Capacity: Boasts an industrial-sized circular saw unit with a maximum cutting height of 140 mm (using a 400 mm saw blade), optionally paired with an electrically driven 120 mm scoring unit for tear-free cuts in coated materials.
• “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring perfect woodworking precision, complemented by a 6-year warranty on the “Easy-Glide” tilting segment.

Details

• Cutting Specifications: Provides a 140 mm cutting height with a 400 mm saw blade (109 mm at 45° tilt), with a standard sliding table length of 98²⁷/₆₄" (2500 mm), expandable to 145⁴³/₆₄" (3700 mm), and a rip capacity of 49¼" (1250 mm).
• “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double-sided support, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
• Smart Rip Fence: Moves with tenth-of-a-millimeter accuracy via a high-precision linear guiding system with recirculating ball screw bearings, tiltable along the full rip length, enhancing repeatable cutting results and minimizing errors.
• Includes a 10" color touchscreen with USB and network connectivity, supporting tool database management, cutting programs, and remote maintenance via TeamViewer, with functions for mitre cuts, rabbets, and grooves.
• Offers an optional electrically driven 120 mm scoring unit (compatible with a 350 mm main blade), paired with an innovative swivelling overhead saw guard for optimal dust extraction and safety, enhanced by the optional PCS® system.
• Features a 1300 mm outrigger table with a 102²³/₆₄" (2600 mm) crosscut fence (expandable to 3200 mm), supported by ball-bearing mounted rollers for stability, with an optional precision mitre guide.
• Supports non-ferrous metals, plastics, and composites with optional adjustable speed control and minimum quantity lubrication, broadening machining options beyond wood and panels.
• Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), digital crosscut stops (up to 126" or 3200 mm), and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades.
• Built with high-quality cast iron tables and aggregates, the K 740 S x-motion ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.

Technical Specifications
