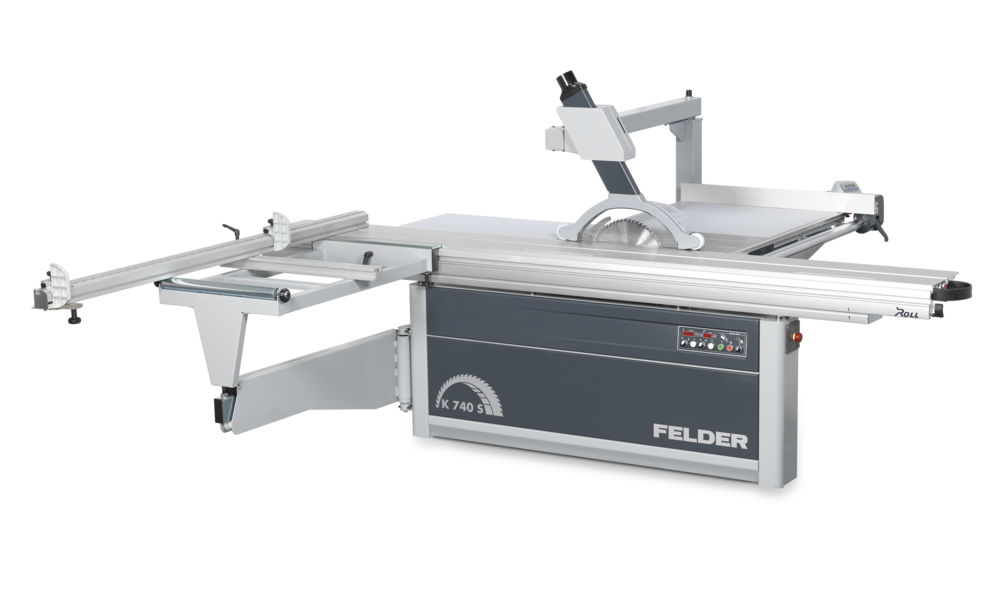

Felder | K 740 S Sliding Panel Table Saw
The new FELDER K 740 S combines large cutting height, compact size and high operating comfort
The new FELDER K 740 S convinces with the combination of performance and comfort in a space-saving, solid design. The machine is characterized by a large and powerful circular saw unit with a maximum cutting height of 140 mm when using a Ø 400 mm saw blade. It is also possible to use an electrically driven scoring unit with a Ø of 120 mm in combination with a Ø 350 mm main saw blade. Even cuts through materials with sensitive surfaces become a breeze.
With the tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K740 S guarantees a new dimension of efficiency. With the solid outrigger tables on both the Professional and S models the panel saws leave nothing to be desired. Protected from dust and absolutely maintenance-free, the X-Roll format sliding table ensures perfect woodworking for many years. The K 740 S is equipped with a tilting FELDER overhead saw guard for optimum extraction results and the highest level of work safety. The optional "Power-Drive" package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.
The intelligent parallel cutting fence brings superior comfort and impressive productivity to every workshop. It is an optional feature of the K 740 S, to quickly move with a tenth of a millimetre to the specified position at the push of a button, guided on a linear guide system with ball-screw bearing, thus ensuring precise cutting results quickly and easily. Six year guarantee on the patented "Easy-Glide" tilting guide system and 10 year guarantee on the proven FELDER "X-Roll" sliding table system ensure maximum reliability for years to come.
Also perfect for machining non-ferrous metals, plastics and composite materials: Upon request, the K 740 models can be equipped with variable speed control and minimum quantity lubrication.
Key Features
Highlights
- High Cutting Capacity: Features a powerful circular saw unit with a maximum cutting height of 140 mm using a 400 mm saw blade, enhanced by an optional 120 mm electrically driven scoring unit for tear-free cuts in sensitive materials.
- “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
- Intelligent Parallel Cutting Fence (Optional): Provides precision to a tenth of a millimeter with an electric motor-controlled rip fence, guided by a linear system with ball-screw bearings, boosting productivity and ease of use.
Details
- Cutting Specifications: Delivers a 140 mm cutting height with a 400 mm saw blade (109 mm at 45° tilt), with a standard sliding table length of 98²⁷/₆₄" (2500 mm), expandable to 145⁴³/₆₄" (3700 mm), and a rip capacity of 31" (800 mm), optionally 49" (1250 mm).
- “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double-sided support, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
- “Power-Drive” Package (Optional): Offers electronic saw blade height and angle adjustment with LED display accuracy to a tenth of a millimeter, including a push button for fine-tuning, enhancing precision and comfort.
Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and an optional electric scoring unit (120 mm) compatible with a 350 mm main blade for tear-free cuts. Includes a 1300 mm outrigger table with a 102" (2600 mm) crosscut fence (expandable to 3200 mm), supported by ball-bearing mounted rollers, with an optional precision mitre guide for accurate angles. Supports non-ferrous metals, plastics, and composites with optional variable speed control and minimum quantity lubrication, expanding machining options beyond wood and panels. Features a tilting design for optimum extraction and safety, swiveling away for large workpieces, enhancing dust management and operator protection. Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), digital crosscut stops (up to 126" or 3200 mm), and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades. Built with high-quality cast iron tables and aggregates, the K 740 S ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.
Technical Specifications
| Category | Details |
|---|---|
| Sawing Unit |
|
| General |
|
Specifications
## Felder K 740 S Sliding Table Panel Saw – FAQs ### What type of woodworking shop is the Felder K 740 S designed for? The Felder K 740 S is designed for professional cabinet shops, custom furniture builders, and production-oriented woodworking operations that need European sliding table accuracy in a compact, highly configurable machine. ### What materials can the Felder K 740 S cut accurately? The K 740 S is engineered to cut solid wood, plywood, MDF, particleboard, veneered panels, laminated boards, plastics, and non-ferrous metals when equipped with appropriate blades and tooling. ### What is the maximum cutting height of the Felder K 740 S? The Felder K 740 S offers a maximum cutting height of approximately 140 mm (about 5.5 inches) at 90 degrees, making it suitable for cabinetry, furniture components, and general panel processing. ### What blade sizes are supported on the K 740 S? The K 740 S supports saw blades up to approximately 400 mm in diameter, delivering a balance of cutting capacity, surface finish quality, and power efficiency. ### How accurate is the Felder sliding table system on the K 740 S? The K 740 S features Felder’s precision sliding table system with hardened steel guideways, providing smooth travel, excellent repeatability, and long-term dimensional stability for professional woodworking. ### What sliding table lengths are available for the Felder K 740 S? The K 740 S is available with multiple sliding table length options, typically ranging from approximately 2,000 mm to 3,200 mm, allowing safe and accurate handling of full-size and oversized panels. ### Does the Felder K 740 S include a scoring unit? Yes, the K 740 S can be equipped with a scoring unit to minimize chipping on laminated and melamine panels, improving cut quality for cabinet and furniture production. ### What control options are available on the Felder K 740 S? The K 740 S is available with Felder’s digital readout and motorized adjustment options, allowing precise electronic positioning of blade height, tilt, and rip fence depending on configuration. ### How does the Felder K 740 S differ from the standard K 740? The K 740 S offers enhanced configuration options, refined ergonomics, and expanded control features compared to the standard K 740, making it better suited for higher production demands. ### Is the Felder PCS safety system available on the K 740 S? Yes, the Felder K 740 S can be equipped with Felder’s PCS (Preventive Contact System), a non-contact blade safety technology that detects imminent contact and retracts the blade within milliseconds. ### What motor power options are available for the Felder K 740 S? The K 740 S is available with powerful three-phase motor options typically starting around 5.5 HP, with higher power configurations available for demanding cutting applications. ### How does the K 740 S handle angled and bevel cuts? The saw unit tilts smoothly up to approximately 46 degrees, with precise electronic positioning available when equipped with digital control systems. ### Is the Felder K 740 S manufactured in Europe? Yes, the K 740 S is engineered and manufactured in Austria, reflecting Felder Group’s European manufacturing standards and precision engineering. ### How does the Felder K 740 S compare to Format4 sliding table saws? Compared to Format4 sliding table saws, the K 740 S offers a more compact footprint and lower entry cost while still delivering professional accuracy, though with reduced cutting capacity and automation options. ### Who should choose the Felder K 740 S? The Felder K 740 S is ideal for professional shops seeking European sliding table precision, strong safety features, and flexible configuration without stepping into full industrial Format4 panel saw platforms.
