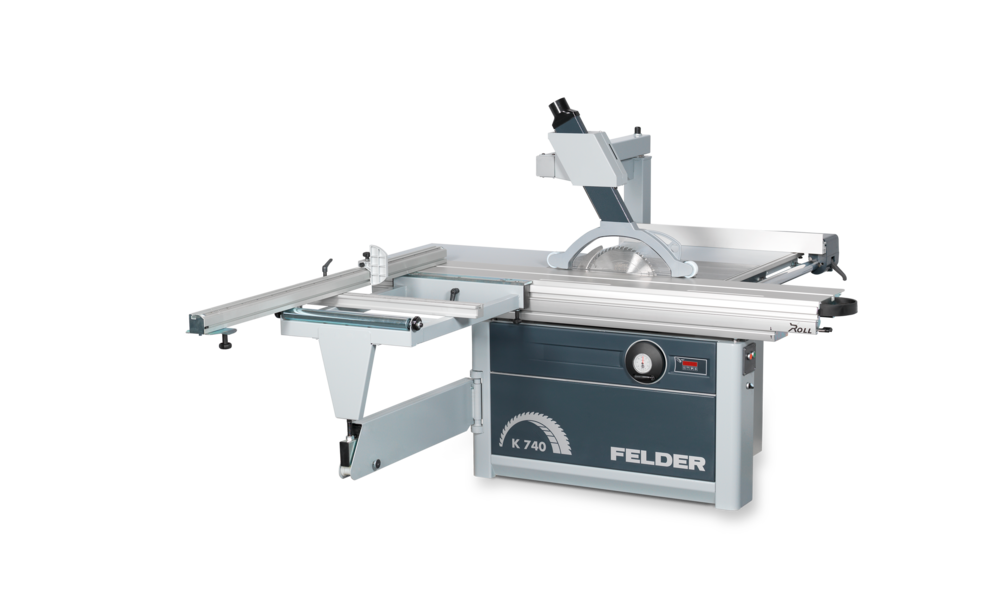

Felder | K 740 professional Sliding Panel Table Saw
The new FELDER K 740 convinces with the combination of performance and comfort in a space-saving, solid design.
The machine is characterized by a large and powerful circular saw unit with a maximum cutting height of 140 mm when using a Ø 400 mm saw blade. It is also possible to use an electrically driven scoring unit with a Ø of 120 mm in combination with a Ø 350 mm main saw blade. Even cuts through materials with sensitive surfaces become a breeze.
With the tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K740 guarantees a new dimension of efficiency. With the solid outrigger tables on the Professional model the panel saws leave nothing to be desired. Protected from dust and absolutely maintenance-free, the X-Roll format sliding table ensures perfect woodworking for many years. The K 740 is equipped with a tilting FELDER overhead saw guard for optimum extraction results and the highest level of work safety. The optional "Power-Drive" package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.
The intelligent parallel cutting fence brings superior comfort and impressive productivity to every workshop. It is an optional feature of the K 740, to quickly move with a tenth of a millimetre to the specified position at the push of a button, guided on a linear guide system with ball-screw bearing, thus ensuring precise cutting results quickly and easily. Six year guarantee on the patented "Easy-Glide" tilting guide system and 10 year guarantee on the proven FELDER "X-Roll" sliding table system ensure maximum reliability for years to come.
Also perfect for machining non-ferrous metals, plastics and composite materials: Upon request, the K 740 models can be equipped with variable speed control and minimum quantity lubrication.
Key Features
Highlights
- High Cutting Capacity: Features a powerful circular saw unit with a maximum cutting height of 140 mm using a 400 mm saw blade, enhanced by an optional 120 mm electrically driven scoring unit for tear-free cuts in sensitive materials.
- “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
- Professional Outrigger Table Support: Includes a solid 1100 mm outrigger table with a 102" (2600 mm) telescopic crosscut fence, supported by 8 bearing guide rollers, providing stability and precision for large, heavy workpieces.
Details
- Cutting Specifications: Delivers a 140 mm cutting height with a 400 mm saw blade (109 mm at 45° tilt), with a standard sliding table length of 80⁴⁵/₆₄" (2050 mm), expandable to 98²⁷/₆₄" (2500 mm), and a rip capacity of 31½" (800 mm), optionally 49" (1250 mm).
- “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double-sided support, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
- “Power-Drive” Package (Optional): Offers electronic saw blade height and angle adjustment with LED display accuracy to a tenth of a millimeter, including a push button for fine-tuning, enhancing precision and comfort.
Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and an optional electric scoring unit (120 mm) compatible with a 350 mm main blade for tear-free cuts. Features a 102" (2600 mm) telescopic crosscut fence with a magnifying lens and miter scale, adjustable from 90° to 45°, with an optional precision mitre pin locating system for accurate polygon cuts. Supports non-ferrous metals, plastics, and composites with optional variable speed control and minimum quantity lubrication, expanding machining options beyond wood and panels. Features a tilting design for optimum extraction and safety, swiveling away for large workpieces, enhancing dust management and operator protection. Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), digital crosscut stops (up to 126" or 3200 mm), and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades. Built with high-quality cast iron tables and aggregates, the K 740 professional ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.
Technical Specifications
| Category | Details |
|---|---|
| Sawing Unit |
|
| General |
|
Specifications
Felder K 740 S Sliding Panel Table Saw – FAQs
What is the Felder K 740 S sliding panel table saw?
The Felder K 740 S is a professional-grade sliding table panel saw designed for precision cutting of sheet goods, solid wood, and composite materials in cabinetry, furniture production, and millwork workshops. It blends high cutting capacity with advanced guiding and ergonomic features for consistent, repeatable results. :contentReference[oaicite:0]{index=0}
Who should choose the Felder K 740 S?
This panel saw is ideal for **professional woodworking shops**, cabinetmakers, and furniture manufacturers that need a durable, high-precision panel saw with generous cutting height and optional scoring capability for tear-free laminated cuts. It suits operations with frequent panel sizing and accuracy demands. :contentReference[oaicite:1]{index=1}
What are the primary use cases for the K 740 S?
The K 740 S is commonly used for:
- Crosscutting and ripping sheet goods (MDF, plywood, particleboard)
- Cutting solid wood and thick stock up to **140 mm** cutting height with a Ø 400 mm blade :contentReference[oaicite:2]{index=2}
- Tear-free cutting of laminated and veneered panels with an optional scoring unit :contentReference[oaicite:3]{index=3}
- Accuracy-dependent workshop production workflows
This versatility makes it a solid choice for cabinetry, architectural millwork, and furniture parts production. :contentReference[oaicite:4]{index=4}
What are the key performance specifications?
Typical specifications include:
- **Sliding table length:** ~2500 mm–3700 mm (98⅜″–145″), offering long crosscut capacity :contentReference[oaicite:5]{index=5}
- **Rip capacity:** ~800 mm standard, optional ~1250 mm :contentReference[oaicite:6]{index=6}
- **Maximum cutting height:** ~140 mm with a Ø 400 mm saw blade :contentReference[oaicite:7]{index=7}
- **Blade tilt range:** 90°–45° via precision double guiding :contentReference[oaicite:8]{index=8}
- **Motor power:** typically ~7.5 HP (5.5 kW), with optional higher power available :contentReference[oaicite:9]{index=9}
What makes the X-Roll sliding table system special?
The patented **X-Roll sliding table system** uses hardened steel guideways and maintenance-free bearings to deliver smooth, backlash-free motion with exceptional long-term precision. Felder backs this guiding system with a **10-year factory warranty** for durability you can rely on. :contentReference[oaicite:10]{index=10}
What is the Easy-Glide tilting system?
The **Easy-Glide** saw blade tilt mechanism uses a double-guided segment made from a durable synthetic material that runs smoothly without lubrication and resists dust ingress. It ensures precise, repeatable saw angle adjustments and carries a **6-year Felder warranty**. :contentReference[oaicite:11]{index=11}
Does the K 740 S include a scoring unit?
The K 740 S can be equipped with an **electrically driven scoring unit (Ø 120 mm)** for tear-free cutting of laminated and sensitive surfaces when used with an appropriate main blade. :contentReference[oaicite:12]{index=12}
How does the Felder K 740 S improve safety and ergonomics?
Standard safety features include a **tilting overhead saw guard**, optimized dust extraction, and solid workpiece support on large outrigger tables. Optional upgrades like **Power-Drive** electronic saw blade height and angle adjustment with LED display bring professional-level precision and ease of setup to the workshop. :contentReference[oaicite:13]{index=13}
What materials can the K 740 S cut?
The K 740 S is engineered to cut **solid hardwoods, softwoods, plywood, MDF, particleboard, laminated and veneered panels**, and — with optional variable speed control and minimum quantity lubrication — even some plastics and non-ferrous materials. :contentReference[oaicite:14]{index=14}
How does the K 740 S compare with the K 700 S?
Compared to the **K 700 S**, the **K 740 S** generally offers **higher cutting height (140 mm)** and more expansive sliding table lengths (up to ~3700 mm), providing greater capacity for large or thick stock. Both share Felder’s X-Roll and Easy-Glide systems, but the K 740 S targets shops needing larger format cutting while maintaining precision and flexibility. :contentReference[oaicite:15]{index=15}
How does the K 740 S compare with the K 540 S?
The K 740 S delivers higher cutting capacity and more robust outrigger support than the **K 540 S**, making it better suited for heavier daily production and large panel handling. The K 540 S remains a strong choice for smaller workshops, while the K 740 S steps into larger production territory with extended sliding table options. :contentReference[oaicite:16]{index=16}
What optional upgrades enhance the K 740 S?
Optional enhancements include:
- **Power-Drive** electronic saw height/angle control with LED display
- Motorized or digitally indicated rip fences
- Pneumatic workpiece holders for added stability
- Extended sliding tables and crosscut fences for long stock
- Variable speed control and minimum quantity lubrication for advanced materials machining
Is the Felder K 740 S a good investment for woodworking shops?
Yes. With Austrian engineering, commercial-grade guides, optional scoring and digital upgrades, and a balance of cutting height and capacity, the Felder K 740 S offers reliable, professional performance for demanding panel and component workflows.
