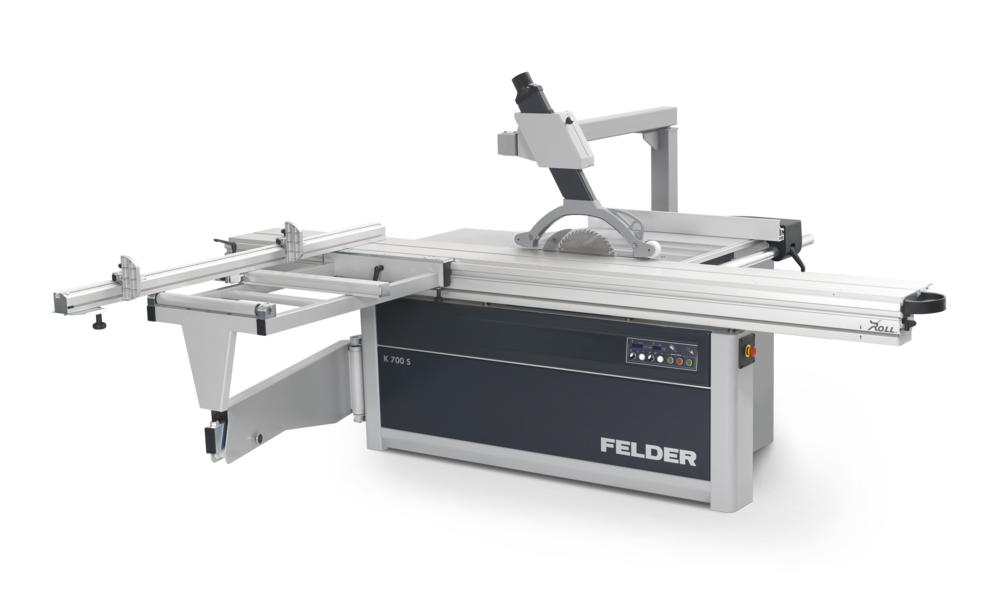

Felder | K 700 S Sliding Panel Table Saw

K 700 S: guaranteed Felder quality with every cut regardless of the dimensions

It is the technologically unique solutions and top class operating comfort that particularly impress about the K 700 S sliding table saw from Felder.

The 1300 and 1500 outrigger tables guarantee efficiency and precision even when processing heavy or bulky workpieces. The innovative saw aggregate with precision guiding system for exact angle adjustments, tilting saw blade and precise lineal height adjustment is just one of the numerous Felder innovations guaranteeing perfect woodworking results. The new swing away overhead saw guard offers maximum flexibility and maximum operating safety.

Six year guarantee on the patented “Easy-Glide” tilting guide system and 10 year warranty on the tried and tested Felder “X-Roll” sliding table system guarantee maximum reliability for years to come. The optional “Power-Drive” package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.

The enhanced circular saw unit with the patented tilt segment "Easy-Glide" enables the combination of a main saw blade with a Ø from 250 mm to Ø 315 mm and a Ø 120 mm scoring unit.

Key Features

Highlights

• Enhanced Cutting Capacity: Features a robust circular saw unit with a maximum cutting height of 104 mm using a 315 mm saw blade, enhanced by an optional 120 mm electrically driven scoring unit for tear-free cuts in sensitive materials.
• “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
• “Power-Drive” Package (Optional): Provides electronic saw blade height and angle adjustment with LED display accuracy to a tenth of a millimeter, including a push button for fine-tuning, elevating precision and comfort.

Details

• Cutting Specifications: Delivers a 104 mm cutting height with a 315 mm saw blade (exact 45° height not specified, typically around 70–80 mm), with a standard sliding table length of 98²⁷/₆₄" (2500 mm), expandable to 145⁴³/₆₄" (3700 mm), and a rip capacity of 31½" (800 mm), optionally 49" (1250 mm).
• “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double-sided support, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
• Outrigger Tables: Includes 1300 mm and optional 1500 mm outrigger tables, providing stability and support for heavy or bulky workpieces, enhancing efficiency and precision during processing.
• Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and an optional electric scoring unit (120 mm) compatible with a 315 mm main blade for tear-free cuts.
• Moves with tenth-of-a-millimeter accuracy via a linear guiding system with ball-screw bearings, tiltable along the full rip length, boosting productivity and ease of use.
• Features a swing-away design for flexibility and safety, optimizing dust extraction and providing unrestricted access to the working area for large workpieces.
• Supports non-ferrous metals, plastics, and composites with optional variable speed control and minimum quantity lubrication, expanding machining options beyond wood and panels.
• Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), digital crosscut stops (up to 126" or 3200 mm), and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades.
• Built with high-quality cast iron tables and aggregates, the K 700 S ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.

Technical Specifications
