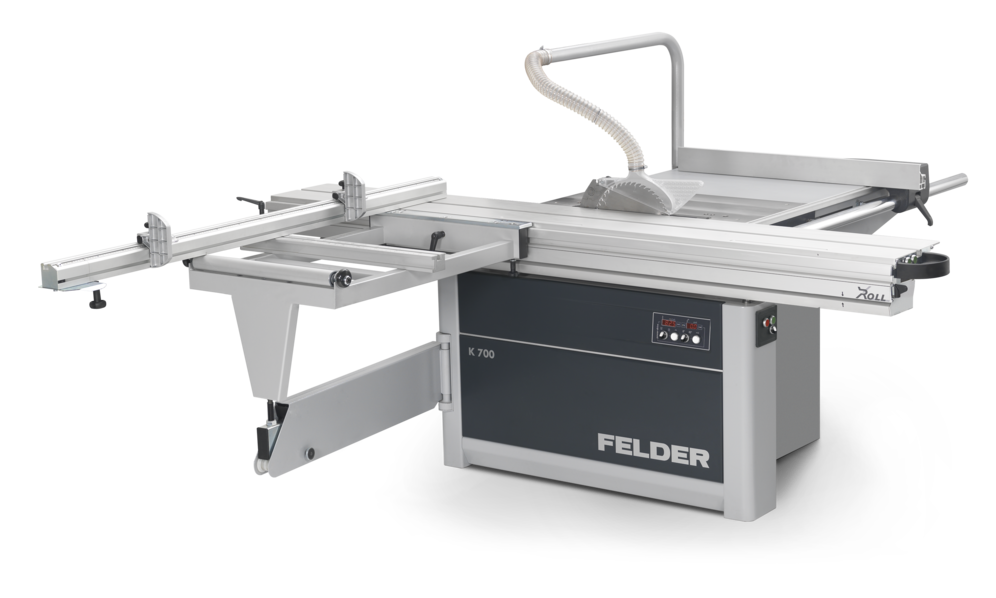

Felder | K 700 professional Sliding Panel Table Saw
K 700: guaranteed Felder quality with every cut regardless of the dimensions
It is the technologically unique solutions and top class operating comfort that particularly impress about the K 700 sliding table saw from Felder.
The 1300 and 1500 outrigger tables guarantee efficiency and precision even when processing heavy or bulky workpieces. The innovative saw aggregate with precision guiding system for exact angle adjustments, tilting saw blade and precise lineal height adjustment is just one of the numerous Felder innovations guaranteeing perfect woodworking results. The new swing away overhead saw guard offers maximum flexibility and maximum operating safety.
Six year guarantee on the patented “Easy-Glide” tilting guide system and 10 year warranty on the tried and tested Felder “X-Roll” sliding table system guarantee maximum reliability for years to come. The optional “Power-Drive” package with electronical saw blade height and angle adjustment accurate to a tenth of a millimetre bring precision and operating comfort to your workshop that are simply another class.
The enhanced circular saw unit with the patented tilt segment "Easy-Glide" enables the combination of a main saw blade with a Ø from 250 mm to Ø 315 mm and a Ø 120 mm scoring unit.
Key Features
Highlights
- Enhanced Cutting Capacity: Features a robust circular saw unit with a maximum cutting height of 104 mm using a 315 mm saw blade, enhanced by an optional 120 mm electrically driven scoring unit for tear-free cuts in sensitive materials.
- “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
- Professional Outrigger Table Support: Includes a solid 1100 mm outrigger table with a 102" (2600 mm) telescopic crosscut fence, supported by 8 bearing guide rollers, providing stability and precision for large, heavy workpieces.
Details
- Cutting Specifications: Delivers a 104 mm cutting height with a 315 mm saw blade (exact 45° height not specified, typically around 70–80 mm), with a standard sliding table length of 80⁴⁵/₆₄" (2050 mm), expandable to 98²⁷/₆₄" (2500 mm), and a rip capacity of 31½" (800 mm), optionally 49" (1250 mm).
- “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double-sided support, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
- “Power-Drive” Package (Optional): Offers electronic saw blade height and angle adjustment with LED display accuracy to a tenth of a millimeter, including a push button for fine-tuning, enhancing precision and comfort.
Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and an optional electric scoring unit (120 mm) compatible with a 315 mm main blade for tear-free cuts. Features a 102" (2600 mm) telescopic crosscut fence with a magnifying lens and miter scale, adjustable from 90° to 45°, with an optional precision mitre pin locating system for accurate polygon cuts. Supports non-ferrous metals, plastics, and composites with optional variable speed control and minimum quantity lubrication (c-tech product line), expanding machining options beyond wood and panels. Features a swing-away design for flexibility and safety, optimizing dust extraction and providing unrestricted access to the working area for large workpieces. Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), digital crosscut stops (up to 126" or 3200 mm), and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades. Built with high-quality cast iron tables and aggregates, the K 700 professional ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.
Technical Specifications
| Category | Details |
|---|---|
| Sawing Unit |
|
| General |
|
Specifications
Felder K 700 Professional Sliding Panel Table Saw – FAQs
What is the Felder K 700 Professional sliding panel table saw?
The Felder K 700 Professional is a high-precision European sliding table panel saw engineered for cabinet shops, furniture manufacturers, and architectural millwork operations that require repeatable accuracy, safe handling of large panels, and scalable production performance. It represents the professional-tier core of the Felder K Series.
Who is the Felder K 700 Professional designed for?
The K 700 Professional is best suited for established professional woodworking shops that cut sheet goods and solid wood daily and need higher precision, stronger build quality, and more configuration options than entry-level sliding table saws.
What are the primary use cases for the K 700 Professional?
The K 700 Professional is commonly used for:
- Cabinet and casework panel sizing
- Furniture and carcass construction
- Architectural millwork and built-ins
- Precision ripping and crosscutting of sheet goods
- Tear-free cutting of laminated and veneered panels with a scoring unit
What makes the K 700 Professional different from a cabinet saw?
Unlike a traditional cabinet saw where the operator pushes material past the blade, the K 700 Professional uses a sliding table to carry the workpiece through the cut. This improves cut accuracy, reduces kickback risk, and allows safe handling of large panels with less operator strain.
What cutting capacity does the Felder K 700 Professional offer?
The saw supports extended sliding table lengths, wide rip capacity, and increased cutting height, allowing it to process full-size sheet goods, thick solid wood parts, and stacked panels efficiently.
What is the X-Roll sliding table system?
The patented X-Roll sliding table system uses hardened steel guideways and precision bearings to deliver smooth, maintenance-free motion with zero play. Felder backs this system with a 10-year warranty, ensuring long-term accuracy.
Does the K 700 Professional include a scoring unit?
The K 700 Professional can be configured with an electrically driven scoring unit, which is essential for tear-free cutting of melamine, laminate, and veneered panels in cabinet production.
How does the Easy-Glide tilt system improve performance?
The Easy-Glide saw unit provides smooth, precise blade tilt from 90° to 45° using a maintenance-free dual-guided mechanism that maintains long-term accuracy and reduces wear.
What fence and crosscut systems are available?
The K 700 Professional supports heavy-duty rip fences, large outrigger tables, and long crosscut fences with fine adjustment. Optional digital positioning systems improve repeatability and reduce setup time in batch production workflows.
What materials can the Felder K 700 Professional cut?
The machine is designed to cut solid hardwoods, softwoods, plywood, MDF, particleboard, laminated panels, and veneered sheet goods. With a scoring unit installed, it produces clean, chip-free edges on sensitive surfaces.
How does the K 700 Professional compare to the K 540 S?
The K 700 Professional offers higher precision potential, more advanced fence and positioning options, and greater scalability for production environments. The K 540 S is an excellent heavy-duty saw, while the K 700 Professional is optimized for repeatable, accuracy-driven workflows.
How does the K 700 Professional compare to the K 500 Pro?
Compared to the K 500 Pro, the K 700 Professional provides a more robust platform, increased cutting capacity, and additional configuration options suited for continuous professional use. The K 500 Pro is ideal for growing shops, while the K 700 Professional targets established production operations.
Is the Felder K 700 Professional suitable for cabinet production?
Yes. The K 700 Professional is widely used in cabinet shops due to its sliding table accuracy, scoring capability, and ability to safely process full-size panels with consistent results.
What safety features are included?
Standard safety features include a European-style overhead blade guard, excellent dust extraction integration, ergonomic control placement, and stable workpiece support through the sliding table and outrigger system.
What electrical and motor options are available?
The Felder K 700 Professional is available in multiple single-phase and three-phase configurations with motor options designed for professional production workloads. Power can be matched to shop electrical capacity and cutting demands.
Is the Felder K 700 Professional a good long-term investment?
Yes. With Austrian engineering, modular configuration, advanced guiding systems, and professional-grade construction, the Felder K 700 Professional is a long-term investment for shops focused on precision, safety, and scalable production.
