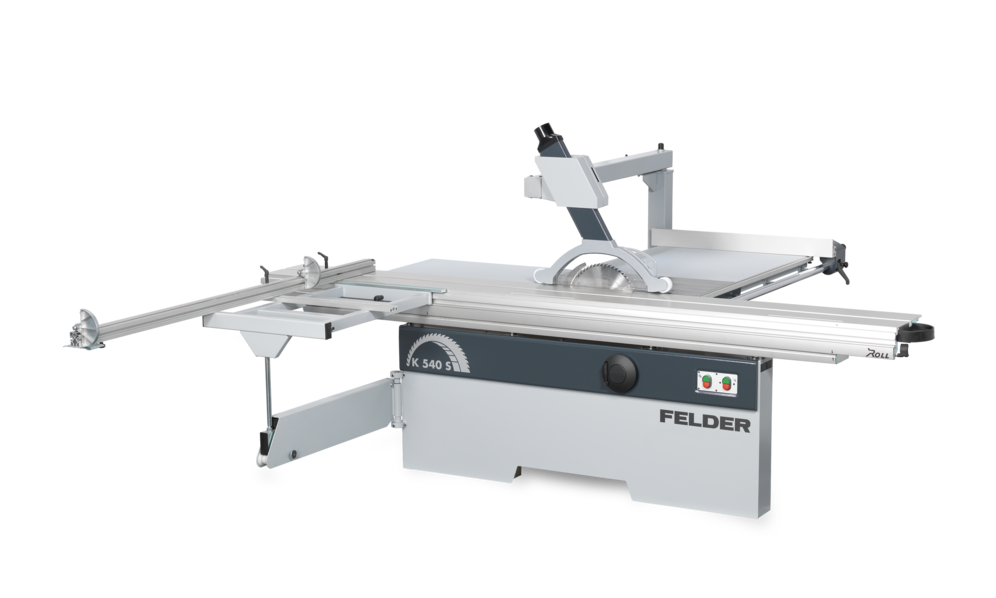

Felder | K 540 S Sliding Panel Table Saw

The compact sliding table panel saw for big demands

K 540 S – The evolution of the proven sliding table panel saw with even more efficiency and a cutting height of 140 mm.

The Felder K 540 S sliding table panel saw in its new edition with an advanced circular saw unit allows an impressive cutting height of 140 mm when using a 400 mm saw blade. The electric scoring unit for scoring blades with a diameter of 120 mm is suitable for professional production in a class of its own combined with a 350 mm saw blade.

The swing away overhead saw guard and proven Felder system solutions such as the smooth-running “X-Roll” format sliding table and the "Easy-Glide” dual guiding system ensure highly professional working conditions as standard. The electric scoring unit, the patented "X-Roll" sliding table with up to 3200 mm and the outrigger crosscut fence up to 2600 mm meet all requirements for large jobs.

Efficiency meets ease of use: Impressive 140 mm cutting height with a saw blade diameter of 400 mm Combined use of an electric Ø 120 mm scoring unit with a Ø 350 mm main saw blade "Easy-Glide" tilting segment guide with 6 year guarantee Patented "X-Roll" sliding table with 10 year guarantee Cutting length 2500–3200 mm Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300 Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

• Efficiency meets ease of use: Impressive 140 mm cutting height with a saw blade diameter of 400 mm
• Combined use of an electric Ø 120 mm scoring unit with a Ø 350 mm main saw blade
• "Easy-Glide" tilting segment guide with 6 year guarantee
• Patented "X-Roll" sliding table with 10 year guarantee
• Cutting length 2500–3200 mm
• Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300
• Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

Key Features

Highlights

• High Cutting Capacity: Features an advanced circular saw unit with a maximum cutting height of 140 mm using a 400 mm saw blade, enhanced by a standard 120 mm electrically driven scoring unit for professional, tear-free cuts.
• “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
• Efficient Outrigger Design: Includes a solid 1300 mm outrigger table with a 2600 mm crosscut fence (expandable to 3200 mm), providing stability and precision for large jobs under maximum load.

Details

• Cutting Specifications: Delivers a 140 mm cutting height with a 400 mm saw blade (exact 45° height not specified, typically around 100–110 mm), with a standard sliding table length of 98²⁷/₆₄" (2500 mm), expandable to 126" (3200 mm), and a rip capacity of 31½" (800 mm), optionally 49¼" (1250 mm).
• “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with dual guiding, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
• Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and a standard electric scoring unit (120 mm) compatible with a 350 mm main blade for tear-free cuts.
• Features a 2600 mm crosscut fence (optional 1300 mm or 3200 mm), supported by a solid outrigger table, ensuring operating smoothness and precision for large workpieces.
• Includes a swing-away design for flexibility and safety, optimizing dust extraction and providing unrestricted access to the working area for large-dimensioned workpieces.
• Offers a standard 31½" (800 mm) rip capacity, upgradable to 49¼" (1250 mm) with micro-adjustable or optional automatic versions, ensuring quick and accurate settings with a single-handed quick clamp.
• Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), a precision mitre guide, and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades.
• Built with high-quality cast iron tables and aggregates, the K 540 S ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.

Technical Specifications
