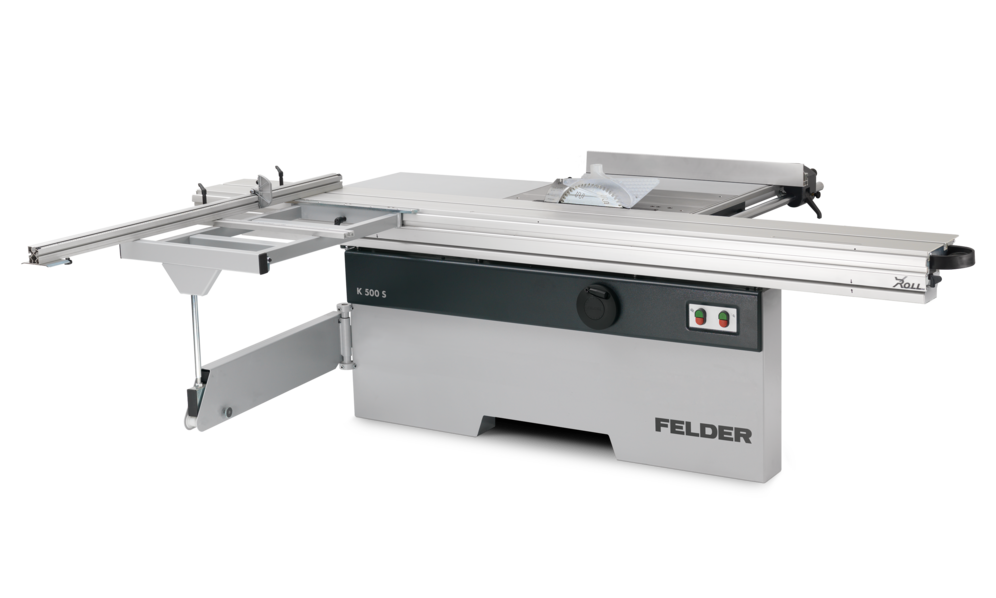

Felder | K 500 S Sliding Panel Table Saw

K 500 S - the “small” Panel Saw from FELDER

Do not be fooled by the inconspicuous exterior of the FELDER K 500 S. The sliding table saw is a true power pack, despite its size.

With the innovative, tilting saw blade unit and precision double guiding for precise angle and height adjustment, the K500 S guarantees a new dimension of efficiency. The built-in, electrically operated scoring saw blade with a Ø of 120 mm makes cuts even through materials with sensitive surfaces a breeze. At the heart of the FELDER K 500 S, the powerful circular saw unit a circular saw shaft, which allows a saw blade with up to Ø 315 mm while using of the scoring unit.

A ten year guarantee on the "X-Roll" sliding table, highest manufacturing quality and strict FELDER production standards make this sliding table panel saw reliable partner for many years to come.

Efficiency meets ease of use: Impressive 104 mm cutting height with a saw blade diameter of 315 mm Combined use of an electric Ø 120 mm scoring unit with a Ø 315 mm main saw blade "Easy-Glide" tilting segment guide with 6 year guarantee Patented "X-Roll" sliding table with 10 year guarantee Cutting length 2500–3200 mm Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300 Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

• Efficiency meets ease of use: 104 mm cutting height with a saw blade diameter of 315 mm
• Combined use of an electric Ø 120 mm scoring unit with a Ø 315 mm main saw blade
• "Easy-Glide" tilting segment guide with 6 year guarantee
• Patented "X-Roll" sliding table with 10 year guarantee
• Cutting length 2500–3200 mm
• Operating smoothness and precision even when under maximum load: large dimensioned, solid outrigger 1300
• Outrigger crosscut fence 2600 mm (1300 or 3200 mm optional)

Key Features

Highlights

• High Cutting Capacity: Features a powerful circular saw unit with a maximum cutting height of 104 mm using a 315 mm saw blade, enhanced by a standard 120 mm electrically operated scoring unit for tear-free cuts in sensitive materials.
• “X-Roll” Sliding Table with Durability: Offers a dust-proof, maintenance-free sliding table with a 10-year FELDER factory warranty, ensuring long-lasting precision, complemented by a 6-year warranty on the “Easy-Glide” tilting system.
• Efficient Outrigger Design: Includes a solid 1300 mm outrigger table with a 2600 mm crosscut fence (expandable to 3200 mm), providing stability and precision for large jobs under maximum load.

Details

• Cutting Specifications: Delivers a 104 mm cutting height with a 315 mm saw blade (exact 45° height not specified, typically around 70–80 mm), with a standard sliding table length of 98²⁷/₆₄" (2500 mm), expandable to 126" (3200 mm), and a rip capacity of 31½" (800 mm), optionally 49" (1250 mm).
• “Easy-Glide” Tilting System: Features a patented, maintenance-free tilting segment with double guiding, using a dust-resistant synthetic material (6-year warranty), ensuring precise and smooth angle adjustments from 90° to 45°.
• Equipped with a 30 mm electronically balanced saw arbor powered by a Poly-V belt for near 100% power transmission, and a standard electric scoring unit (120 mm) compatible with a 315 mm main blade for tear-free cuts.
• Features a 2600 mm crosscut fence (optional 1300 mm or 3200 mm), supported by a solid outrigger table, ensuring operating smoothness and precision for large workpieces.
• Includes a swing-away design for flexibility and safety, optimizing dust extraction and providing unrestricted access to the working area for large-dimensioned workpieces.
• Offers a standard 31½" (800 mm) rip capacity, upgradable to 49" (1250 mm) with a single-handed adjustment system and optional fine adjustment, ensuring quick and accurate settings.
• Includes optional pneumatic workpiece holders (95 mm height, 300 kg force), a precision mitre guide, and a transport unit for the outrigger table. Web context suggests compatibility with additional safety or digital upgrades.
• Built with high-quality cast iron tables and aggregates, the K 500 S ensures reliability, supported by Felder’s 60 years of experience and a comprehensive service package.
