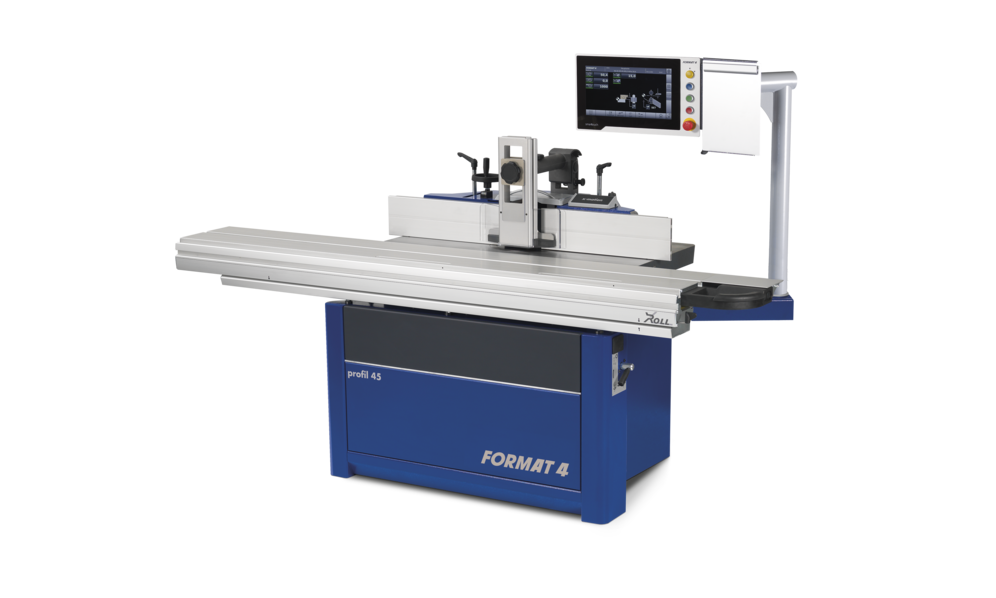

Format4 | profil 45 Z x-motion Tilting Shaper

Elegant, Perfectly Designed, and Intelligent

The Format4 profil 45 Z x-motion Tilting Shaper offers unmatched precision and efficiency for solid wood and panel material processing. Featuring a 12 19/32" table opening, quick-change spindle system, and a 15" touchscreen x-motion control for spindle, fence, and angle adjustments, it ensures rapid setup and repeatability. The robust design with high-precision bearings and X-Roll sliding table makes it a premium choice for professional woodworking.

Key Features

Highlights

• Intuitive x-motion Control: 15" touchscreen adjusts spindle speed, height, angle, and fence position with tool and program memory for perfect repeatability.
• Shaper Quick-Change System: Enables rapid spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and high-speed router spindle at 15,000 rpm for versatile milling.
• Easy-Glide Tilt Segment: Maintenance-free, double-suspension system ensures precise, backlash-free tilting for industrial durability.

Details

• Profil 45 Spindle Shaper Unit: Heavy-duty unit with precision dual guidance, dovetail height adjustment, and three high-precision bearings for long-term accuracy.
• Format4 Spindle Rearward Tilt: Tilts 90°–45° for safe operation, unlimited workpiece size, power feeder compatibility, and optimal chip removal.
• High-Speed Router Spindle: Supports 6–16 mm shaft tools at 15,000 rpm with up to 10 HP motor power.
• Slot and Tenoning: Large-dimensioned aluminum sliding table with X-Roll technology ensures precision and smoothness, backed by a 10-year warranty.
• Quick-Lock Clamping System: Facilitates safe, quick tool changes on 30 mm spindles.
• Spindle Shaper Fence Quick Clamping System: Optional quick-clamp lever for fast, effortless fence positioning.
• Spindle Fence Control: Electrically controlled via touchscreen with real-time setting display for precise adjustments.
• Power-Drive: Electrical height and angle adjustment with LED display for quick, precise settings.
• Table Opening 12 19/32": Supports large panel raising and slot/tenoning tools below the table surface for safety.
• Dual Dust Extraction: Via shaper fence and below-table chip collection for clean operation.
• Spindle Fence with Tilt-Away Function: Enhances tool and spindle change efficiency and supports curved moulding.
• 43" Outrigger Table: Optional table enables processing of large, heavy workpieces.
• Outrigger Table 1300: Optional 1300 mm table with workpiece roller for smooth loading of large workpieces, ideal for doors.
