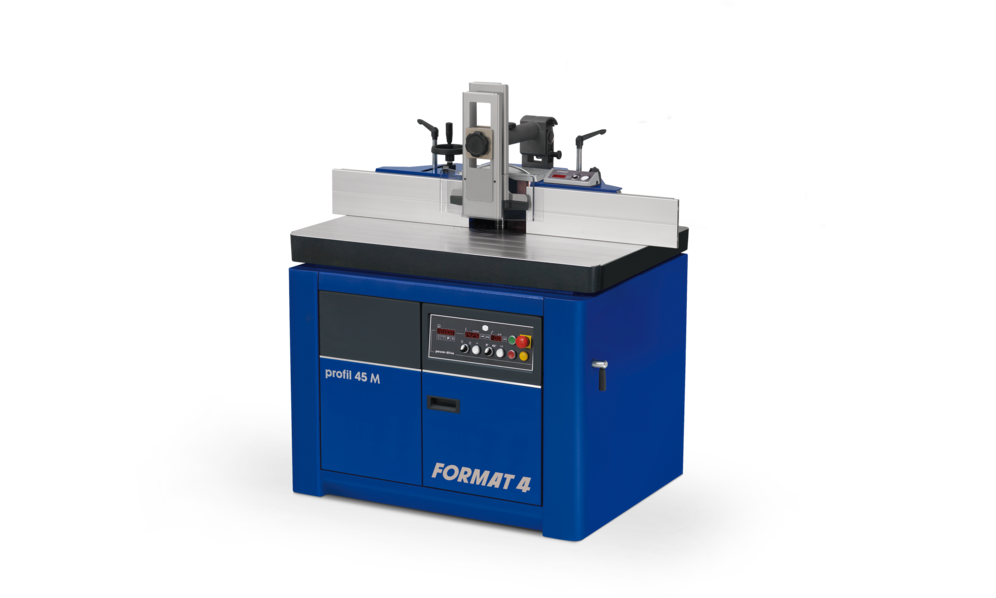

Format4 | profil 45 M Tilting Shaper

Format4 | profil 45 M Tilting Shaper

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

A Power Package with Premium Comfort

The Format4 profil 45 M Tilting Shaper, available in standard and x-motion variants, delivers high-tech precision for solid wood, panel material, and plastic processing. With a 12 19/32" table opening, quick-change spindle system, and Power-Drive controls (x-motion with 15" touchscreen), it ensures maximum efficiency and user comfort. The robust cast iron table and c-tech options make it ideal for professional woodworking.

Key Features

Highlights

  • Quick-Change System for Shaper Spindle: Enables rapid spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and high-speed router spindle at 15,000 rpm for versatile milling.
  • Stability and High Performance: Solid cast iron table ensures vibration-free operation, extendable up to 86 39/64" for large workpieces.
  • Intuitive x-motion Control: 15" touchscreen adjusts spindle speed, height, angle, and fence position with program recall for repeat accuracy (x-motion only).

Details

  • Easy-Glide Tilt Segment: Maintenance-free, double-suspension system for precise, backlash-free tilting, designed for industrial durability.
  • Profil 45 Spindle Shaper Unit: Heavy-duty unit with precision dual guidance and dovetail height adjustment for long-term accuracy.
  • Format4 Spindle Rearward Tilt: Tilts 90°–45° for safe operation, unlimited workpiece size, power feeder compatibility, and optimal chip removal.
  • High-Speed Router Spindle: Supports 6–16 mm shaft tools at 15,000 rpm with full motor power up to 10.0 HP.
  • Quick-Lock Clamping System: Facilitates safe, quick tool changes on 30 mm spindles.
  • Spindle Fence Control via Touch Screen: x-motion model enables precise fence adjustments via 15" touchscreen for enhanced efficiency (x-motion only).
  • Spindle Shaper Fence Quick Clamping System: Optional quick-clamp lever for fast, effortless fence positioning.
  • Spindle Fence Control: Electrically controlled with real-time setting display for precise adjustments.
  • Power-Drive: Electrical height and angle adjustment with LED display for quick, precise settings (standard).
  • Table Opening 12 19/32": Supports large panel raising and slot/tenoning tools below the table surface for safety.
  • Dual Dust Extraction: Via shaper fence and below-table chip collection for clean operation.
  • Spindle Fence with Tilt-Away Function: Enhances tool and spindle change efficiency and supports curved moulding.

Technical Specifications

Category Details (profil 45 M / profil 45 M x-motion)
Electrics
  • 3x 400 V motor voltage (standard), 3x 230 V (choice)
  • 50 Hz (standard) or 60 Hz motor frequency (choice)
  • Motor power: 7.5 HP (5.5 kW, standard), 10 HP (7.35 kW, optional), 13.5 HP (10 kW, optional)
  • Star-delta start (standard)
  • Optional continuous variable speeds 1,500–10,000 rpm (7.35 kW only)
  • 5 speeds: 3,500/4,500/6,000/8,000/10,000 rpm (standard)
  • Switch for forward and reverse run (standard)
  • Optional switch contact for extractor
  • Optional 3-phase CEE coupling for power feeder
  • Operating hour meter (standard x-motion, optional standard)
  • Optional plug-in connection for control panel at eye level (standard model only)
Spindle Shaper Unit and Spindle Fence
  • Spindle diameter: 30 mm, 5 33/64" usable height (standard); optional 40 mm, 50 mm, 32 mm, 35 mm, 1¼", or high-speed router spindle (15,000 rpm)
  • Shaper fence 250 for max. tool diameter 9 27/32" (250 mm)
  • 21 21/32" anodised aluminum fence plates (standard)
  • Optional 21 21/32" fence plates with safety bar guides
  • Electromotive MULTI adjustment system for spindle fence 250 with digital display (standard)
  • Electric spindle tilt 90°–45° (standard)
  • Electrical height adjustment of moulding spindle (standard)
  • Digital display for spindle angle and height (standard x-motion, optional standard)
  • Spindle locking from outside (standard)
  • Centrex spindle moulder guard (standard)
  • Optional integral safety bar guides, 19 11/16"
  • Optional quick locking of the routing fence
  • Table opening: 12 19/32" (320 mm)
  • Optional 50" extendable frame with emergency stop
  • Optional 26 3/8" table extension on both sides with 86 39/64" extendable frame
General
  • Extraction connection: 140 mm (spindle fence), 80 mm (below table level)
  • Working height: 890 mm
  • Weight: 730 kg (standard configuration)
  • Min. transport width: 920 mm
Accessories
  • Optional swing-away device for power feeder
  • Optional application routing device for fixed bed spindle moulders
  • Optional parts list holder with A4 clipboard (x-motion only)
  • Optional professional power feeder package for series production
  • Optional IPPC packaging
  • Optional container packaging
