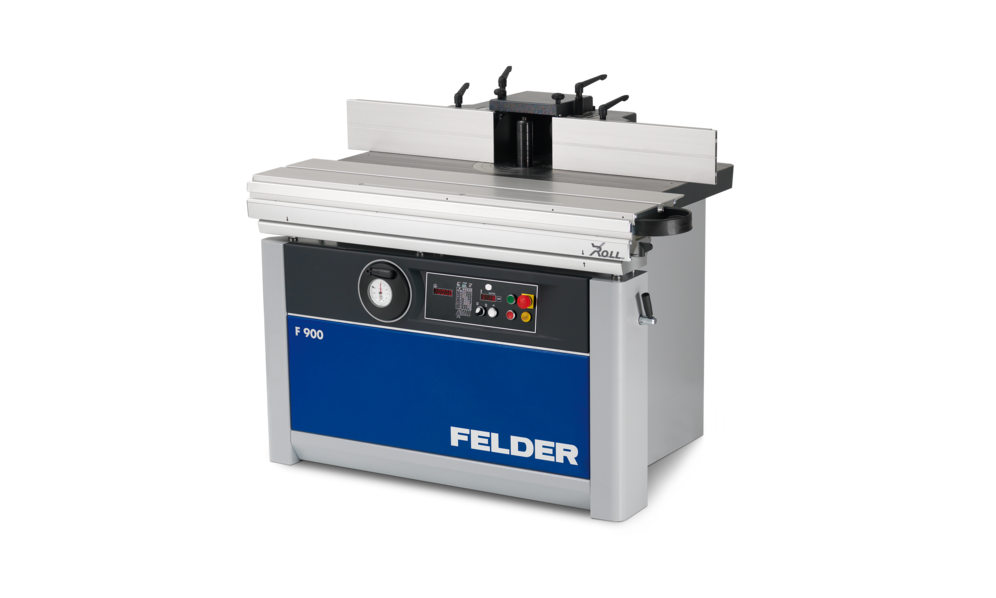

Felder | F 900 Z Tilting Shaper

The Felder F 900 Z Tilting Shaper, part of the 900 Series, delivers cutting-edge performance for craftsmanship and industry, processing solid wood and panel materials. With a 12 19/32" table opening, a quick-change spindle system, and Power-Drive controls, it ensures precision and ease of use. The robust cast iron construction and innovative features like the Easy-Glide tilting system make it a top choice for professional woodworking.

Key Features

Highlights

• Slot and Tenoning Perfection: Equipped with a large-dimensioned aluminum slot and tenoning table using X-Roll guiding technology for precise, high-capacity work.
• Moulder Spindle Tilt 90°–45°: Rearward tilting spindle ensures safe operation, suitability for any workpiece size, problem-free power feeder use, impeccable finish, and optimal chip removal.

Details

• Shaper Quick-Change System: Allows spindle swaps in seconds for various diameters, including a high-speed router spindle at 15,000 rpm for router cutters.
• Spindle Fence "230": Supports tools up to 9 1/16" diameter, with fine adjustment from -5 to +25 mm and a 120 mm extraction connection.
• MULTI-Fine Adjustment System: Enables quick, parallel adjustments to the spindle fence for precise tool diameter settings and repeat accuracy.
• Easy-Glide Tilting Guide System: Patented, maintenance-free system with durable synthetic material ensures smooth, precise tilting with a 6-year warranty.
• Table Opening 12 19/32": Allows safe use of large panel raising and slot/tenoning tools below the table surface.
• Safety Bar Guides: Optional guides for enhanced safety during end-grain work.
• Spindle Moulder Unit "900": Heavy-duty unit with up to 140 mm useable height, dovetail height adjustment, Poly-V belt power transmission, and optional variable speed control (1,500–10,000 rpm).
• Power Feeder: Ensures clean, precise moulding for standard operations.
• Swing Away Device: Power feeder arm enhances operating convenience.
• Dual Dust Extraction: Via spindle fence and below-table chip collection bin for clean, trouble-free operation.
• Quick-Lock Clamping System: Allows safe, quick tool changes on 30 mm spindles, reducing injury risk.
• Fence Plate: Hardened anodized aluminum plates, fine-adjustable from –5 to +25 mm along a scale.
• Variable Speed Control: Optional continuous speed adjustment up to 10,000 rpm for optimal results across materials.
• Felder Table Extensions: Tool-free extensions up to 78 47/64" for large workpieces.
• Outrigger Table: Optional accessory for precise rebating of large workpieces like doors.
• Electrical Height Adjustment: Power-Drive control with digital LED display for precise spindle height and angle settings.
