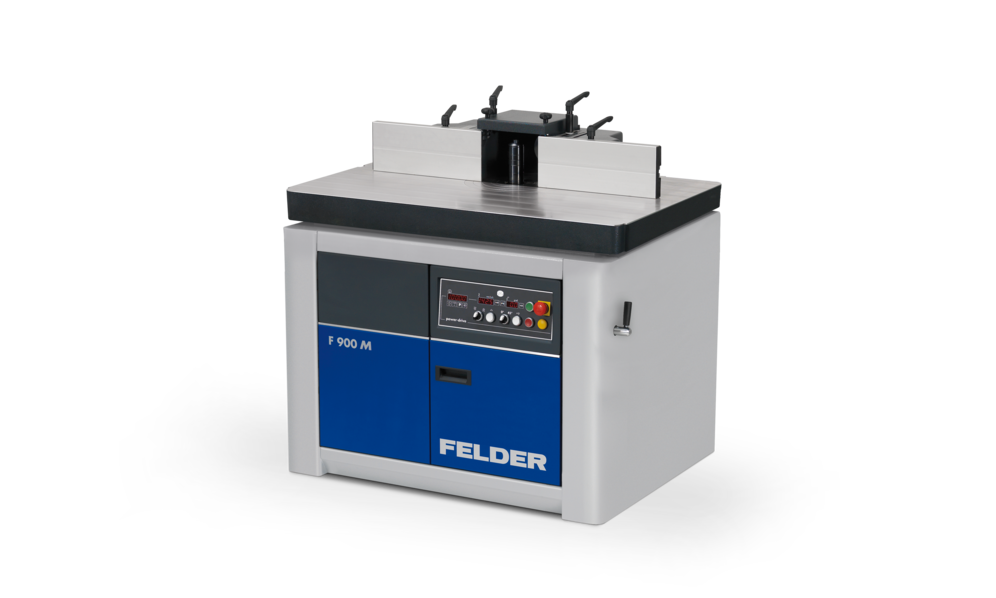

Felder | F 900 M Tilting Shaper

The Felder F 900 M Tilting Shaper, the heaviest-built shaper in the Felder range, offers unmatched performance for professional woodworking with solid wood and panel materials. Featuring a solid cast iron table, Power-Drive electrical height and angle adjustment, and a quick-change spindle system, it ensures precision, reliability, and maximum operating comfort. The 320 mm table opening and Easy-Glide tilting system make it ideal for demanding craftsmanship and industrial applications.

Key Features

Highlights

• Solid Cast Iron Tables: 47 1/4" table with optional extensions up to 86 39/64" for large workpieces, offering vibration-free stability.
• Moulder Spindle Tilt 90°–45°: Rearward tilting spindle ensures safe operation, suitability for any workpiece size, problem-free power feeder use, impeccable finish, and optimal chip removal.

Details

• Shaper Quick-Change System: Enables quick spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and includes a high-speed router spindle at 15,000 rpm for router bits.
• Spindle Fence "230": Supports tools up to 9 1/16" (230 mm) diameter, with fine adjustment from -5 to +25 mm and a 120 mm extraction connection.
• MULTI-Fine Adjustment System: Facilitates quick, parallel fence adjustments, automatic repeat settings, and precise tool diameter alignment.
• Easy-Glide Tilting Guide System: Maintenance-free, dust-resistant synthetic material ensures smooth, precise tilting with a 6-year warranty.
• Table Opening 12 19/32": Allows safe use of large panel raising and slot/tenoning tools below the table surface.
• Safety Bar Guides: Optional guides enhance safety for end-grain work.
• Spindle Shaper Unit "900": Heavy-duty unit with up to 5 33/64" (140 mm) useable height (160 mm for 40/50 mm spindles), dovetail height adjustment, Poly-V belt power transmission, and optional variable speed control (1,500–10,000 rpm).
• Power Feeder: Ensures clean, precise moulding for standard operations.
• Swing Away Device: Power feeder arm enhances operating convenience.
• Dual Dust Extraction: Via spindle fence and below-table chip collection bin for clean, trouble-free operation.
• Quick-Lock Clamping System: Facilitates safe, quick tool changes on 30 mm spindles.
• Table Extension Frame: Supports large workpieces, such as door rebating, with extensions up to 78 47/64".
• Power-Drive: Electrical height and angle adjustment with digital LED display for precise, repeatable settings.
• Fence Plate: Hardened anodized aluminum plates, fine-adjustable from –5 to +25 mm along a scale.
• Variable Speed Control: Optional continuous speed adjustment up to 10,000 rpm for optimal material processing.
