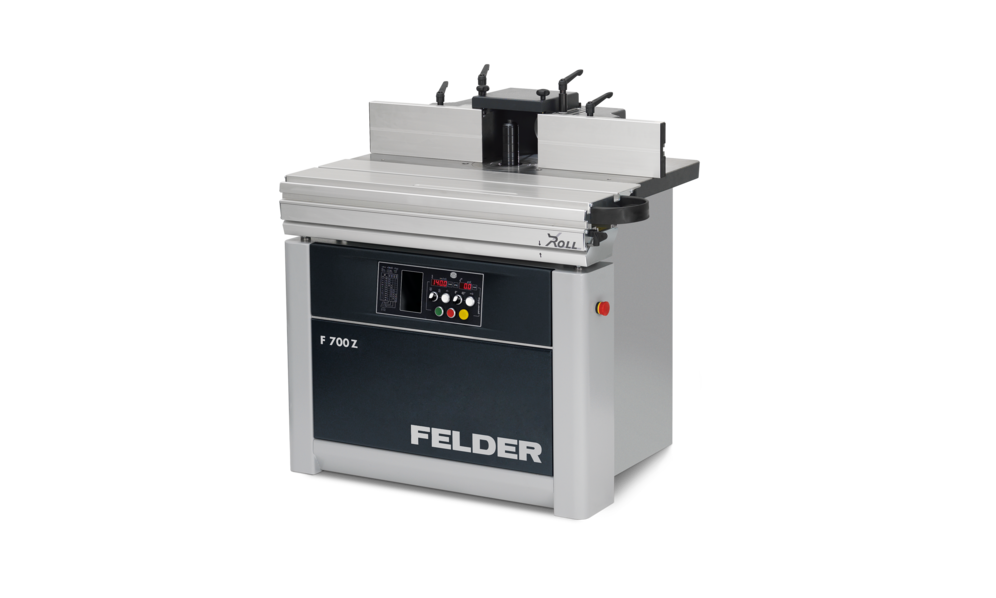

Felder | F 700 Z Tilting Shaper

The Felder F 700 Z Tilting Shaper, part of the 700 series, is designed for solid wood, panel material, and plastic processing, offering top performance for workshops and industry. With a 9 1/16" table opening, X-Roll sliding table, and optional Power-Drive controls, it ensures precision, safety, and versatility. The Easy-Glide tilting system and robust cast iron construction make it ready for any woodworking challenge.

Key Features

Highlights

• Slot and Tenoning Perfection: Large-dimensioned slot and tenoning table with X-Roll guiding technology ensures precision and smoothness, backed by a 10-year warranty.
• Shaper Spindle Tilt 90°–45°: Rearward tilting spindle ensures safe operation, suitability for any workpiece size, problem-free power feeder use, impeccable finish, and optimal chip removal.

Details

• Shaper Quick-Change System: Allows quick spindle swaps (30, 32, 35, 40, 50 mm, or 1¼") and includes a high-speed router spindle at 15,000 rpm for router bits.
• Spindle Fence "230": Supports tools up to 9 1/16" (230 mm) diameter, with fine adjustment from -5 to +25 mm and a 120 mm extraction connection.
• MULTI-Fine Adjustment System: Enables quick, parallel fence adjustments, automatic repeat settings, and precise tool diameter alignment.
• Table Opening 9 1/16": Allows safe use of large panel raising and slot/tenoning tools below the table surface.
• Easy-Glide – 6-Year Guarantee: Maintenance-free, dust-resistant tilting system with precise double trunnion for smooth, play-free tilting.
• Safety Bar Guides: Optional guides enhance safety for end-grain work.
• Spindle Shaper Unit "700": Offers 115 mm useable height, dovetail height adjustment, four speeds (3,500/6,500/8,000/10,000 rpm), and excellent vibration absorption.
• Power Feeder: Ensures clean, precise moulding for standard operations.
• Quick-Lock Clamping System: Facilitates safe, quick tool changes on 30 mm spindles.
• Power-Drive (Shaper Spindle): Optional electrical height and angle adjustment with digital LED display for precise settings.
• Table Extension: Aluminum extension with p-coupling single lever clamping system for tool-free assembly.
• Outrigger Table: Optional 1,100 mm table for processing large workpieces like doors.
