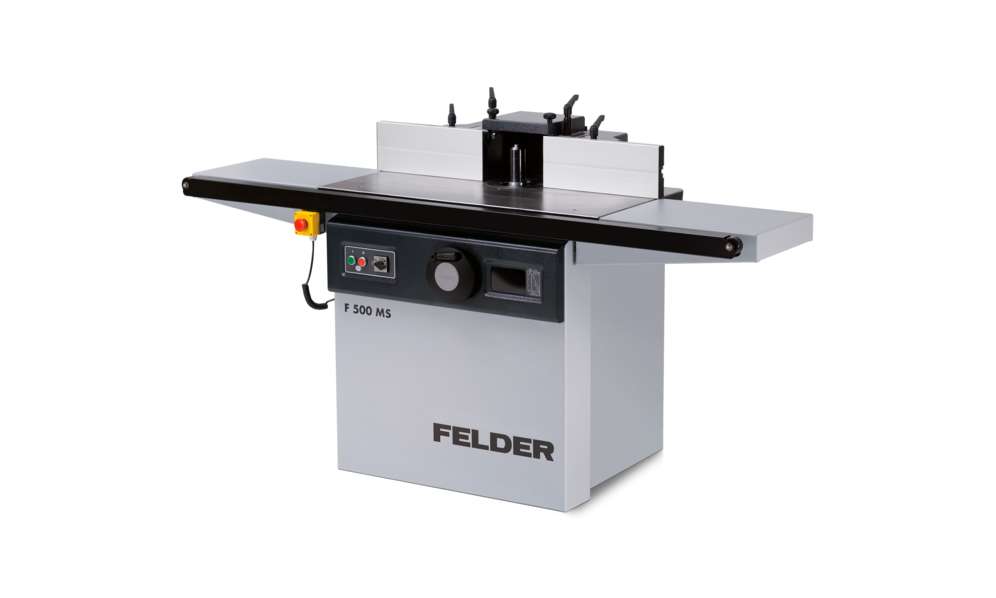

Felder | F 500 MS Shaper

Felder | F 500 MS Shaper

by Felder Group
$50,000.00 - $50,000.00
$50,000.00
$50,000.00 - $50,000.00
$50,000.00

The Felder F 500 MS Shaper, designed for professional woodworking, offers exceptional precision for solid wood and panel material processing. With a solid, ribbed cast iron table, a 7 3/32" table opening, and an optional MF spindle shaft quick-change system, it delivers professional results. The robust construction, stable table extensions, and MULTI-fine adjustment system ensure reliability and ease of use for discerning woodworkers.

Key Features

Highlights

  • Spindle Moulder Unit "500": Stable, compact unit with 3 15/16" maximum above-table height, four rotation speeds (3,000/6,000/8,000/10,000 rpm), and a 12 5/8" table opening for precision.
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)
  • MF Spindle Shaft Quick Change System: Allows quick spindle swaps of varying diameters without losing settings (optional).
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)
  • MULTI-Fine Adjustment System: Ensures parallel alignment and quick adjustment for spindle fence "230", supporting tools up to 230 mm diameter (optional).
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)

Details

  • Table Extension with Front Pull Out Support: Extends support for large workpieces, enhancing ease of processing.
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)
  • Safety Bar Guides: Optional guides for safe end-grain work.
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)
  • Power Feeder: Ensures clean, precise moulding for standard operations.
    • [](https://www.felder-group.com/en-us/products/shapers-c1949/shaper-f-500-m-p142870?vid=)

Technical Specifications

Category Details
Electrics
  • 3x 400 V motor voltage (standard), 3x 230 V or 1x 230 V, 4.0 HP (3.0 kW) (optional)
  • 50 Hz (standard) or 60 Hz motor frequency (optional)
  • Motor power: 5.5 HP (4.0 kW, standard)
  • Optional 3-phase CEE coupling for power feeder
  • Switch for forward and reverse run (standard)
Spindle Moulder Unit and Spindle Fence
  • Moulder spindle: Ø 30 mm, 3 15/16" usable height (standard)
  • Optional MF spindle system: Ø 30 mm, 32 mm, 35 mm, 1¼", 1 31/32", or collet chuck, 3 15/16" usable height
  • Spindle moulder fence 220 for max. tooling diameter 8 21/32" (220 mm), 12 19/32" fence plates (standard)
  • Optional spindle moulder fence 230 for max. tooling diameter 9 1/16" (230 mm), 15 3/4" fence plates
  • Optional MULTI-fine adjustment system for spindle moulder fence "230"
  • Anodised aluminium fence plates (standard)
  • Optional anodised aluminium fence plates with safety bar guides
  • EURO spindle moulder guard (standard)
  • Rotation speed: 3,000/6,000/8,000/10,000 rpm
  • Moulder spindle 90° with height adjustment at the front (standard)
  • Table opening: 180 mm
General
  • Extraction connection: 120 mm (spindle fence)
  • Working height: 916 mm
  • Weight: 320 kg (standard configuration)
  • Min. transport width: 800 mm
Accessories
  • Optional IPPC palette
  • Optional container transport preparation
