Hammer | B3 perform Saw/Shaper

Saws & Spindle Shapers – the Professional 2-in-1 Solution

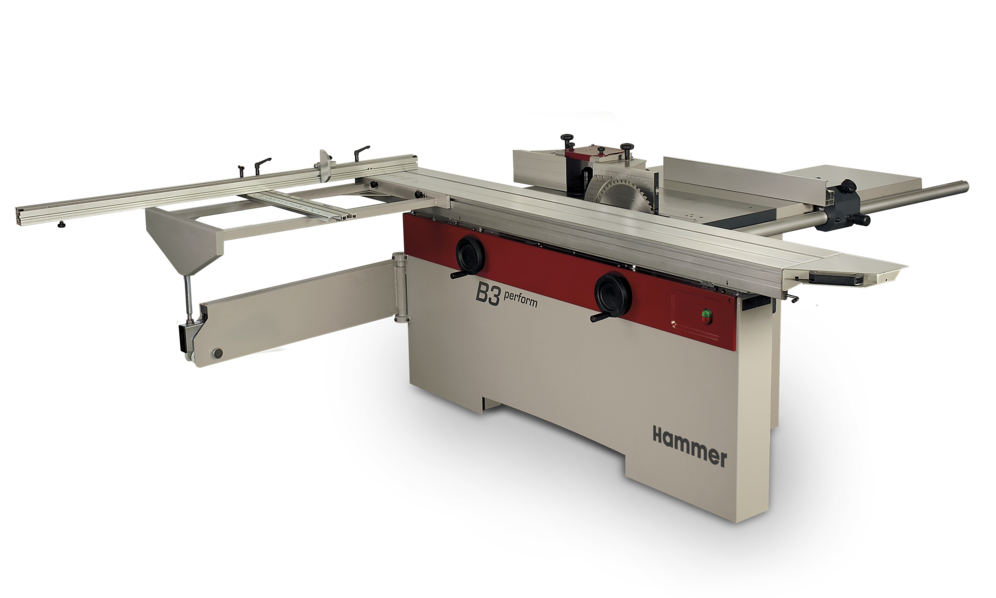

The Hammer B3 perform Saw-Spindle Shaper, with a 98.42" cutting length and up to 49.21" rip capacity, is the top-tier model in the B3 series, combining a robust sliding table saw and spindle moulder for solid wood and panel materials. Featuring a larger body, outrigger table, and optional electrically driven scoring unit, it’s designed for heavy-duty professional woodworking.

Key Features

Highlights

• Aluminum Sliding Table: Ribbed, anodised hollow-chamber profile ensures precision, paired with a high-quality guiding system.
• Circular Saw Blade and Shaper Spindle Tiltable 90°–45°: Ensures precise mitre cuts with end stops at 90° and 45° for repeatable accuracy.
• MF Spindle Shaft Quick Change System: Allows rapid spindle swaps without losing settings, enhancing productivity (optional).

Details

• Table Extension System: Tool-free extensions up to 63" (400 or 800 mm per side) support large workpieces.
• Solid Cast Iron Saw/Spindle Table: Vibration-free, torsion-resistant table with 7.08" opening for large tools below table level.
• Outrigger Table: Standard 1250 mm table for precise panel, format, and cross cuts of large workpieces.
• Grooving, Slot, and Tenoning: Optional dado tooling for grooves, tenons, and slots (0.31–0.76" wide).
• Scoring Unit: Optional electrically driven unit (1.0 HP) ensures chip-free cuts in laminated workpieces.
• Stable-Compact-Precise Saw Aggregate: Supports 250–315 mm saw blades with a 4.05" cutting height, easily adjustable.
• Spindle Shaper Unit: 1.18" spindle diameter with four speeds (3,000/6,000/8,000/10,000 rpm) and forward/reverse run for safety.
• Spindle Fence: Supports tools up to 8.66" diameter, with –5 to +25 mm depth adjustment and 4.72" extraction connection.
• MULTI-Fine Adjustment System: Optional parallel alignment and quick adjustment for spindle fence "220".
• Safety Bar Guides: Optional guides for safe end-grain work.
• Industrial Saw Rip Fence: Chrome-plated round bar guide for smooth, precise adjustments (standard).
• Rip Fence (Winner): Adjustable 0–7.08" or optional 49.21", with flat position for thin workpieces and fine adjustment (standard).
• Format Sliding Table: Industrial-grade for maximum load-bearing capacity and precision cutting.
• Minimal Space Requirement: Efficient design with optional rolling carriage for mobility.
• Strong Motors: Poly-V belts ensure near-perfect power transmission to saw arbor and shaper spindle.

Technical Specifications
