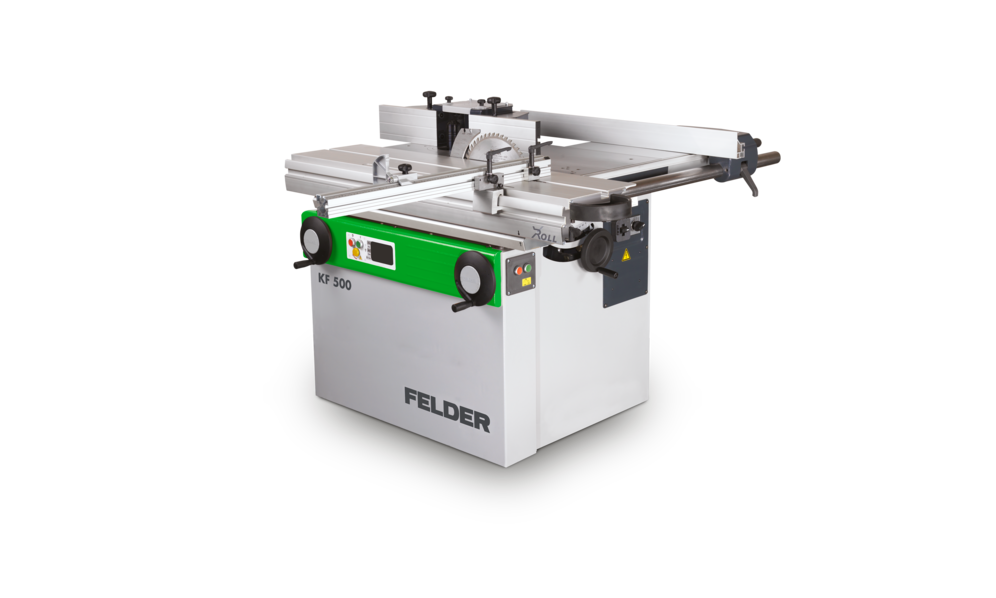

Felder | KF 500 Saw/Shaper

Reliability, Durability, and Excellent Results

The Felder KF 500 Saw-Spindle Shaper combines a precision panel saw and spindle moulder for professional woodworking with solid wood and panel materials. Featuring cutting lengths from 39 3/8" to 80 45/64", a 31 1/2" to 49 7/32" rip capacity, and a 7 3/32" table opening, it ensures versatility. The X-Roll sliding table with a 10-year warranty and optional MF spindle system deliver precision and reliability.

Key Features

Highlights

• X-Roll Precision Guiding System: High-quality format sliding table with 10-year warranty ensures smooth, maintenance-free operation.
• MF Spindle Shaft Quick Change System: Allows rapid spindle swaps of varying diameters without losing settings (optional).
• MULTI-Fine Adjustment System: Enables quick, parallel fence adjustments with automatic repeat settings for spindle fence "230" (optional).

Details

• Scoring Unit: Optional mechanically driven unit (Ø 80 mm) ensures chip-free cuts in laminated panels.
• Felder Saw Unit “500”: Stable unit with 4 1/64" cutting height at 12 13/32" blade diameter, double-sided support, and smooth 0°–45° tilting.
• Grooving Work: Optional dado tooling for adjustable grooves up to 19.5 mm wide.
• Precision Mitre Index System: Enables accurate angle adjustments for efficient operation.
• Pneumatic Workpiece Holder: Offers flexible clamping with 3 47/64" height and 661 lbs force, compatible with all sliding tables.
• EGL 1350: Patented double cut mitre gauge for precise angle cuts with integrated computer, adjustable up to 53 5/32".
• Crosscut Fence: 51 3/16" fence for +45° to –45° mitre cuts with precise stops.
• Rip Fence: Adjustable 31 1/2" to 49 7/32" with single-hand clamping and optional fine adjustment.
• Outrigger Table: Optional 1,100 or 1,300 mm table for processing large workpieces with precision.
• Spindle Fence “230”: Supports tools up to 9 1/16" diameter, with –5 to +25 mm fine adjustment and 120 mm extraction connection.
• Spindle Shaper Unit “500”: 3 15/16" usable height, four speeds (3,000/6,000/8,000/10,000 rpm), and 0°–45° rearward tilt for safety.
• Power Feeder: Ensures clean, precise moulding for standard operations.
• Tilt Bracket: Power feeder tilt-away device for convenient access.

Technical Specifications
