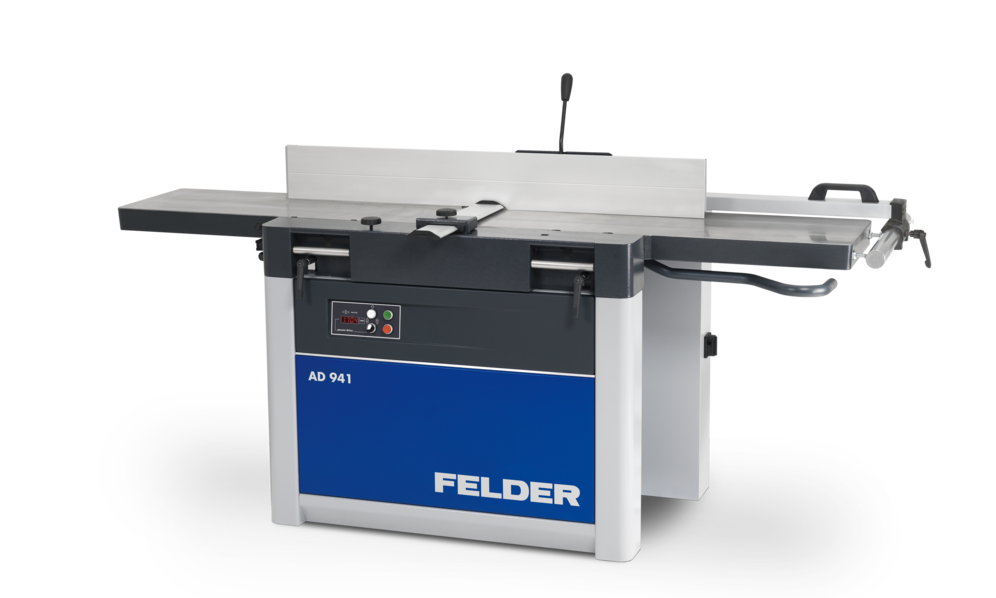

Felder | AD 941 Jointer-Planer

The Felder AD 941 Jointer-Planer offers a 16 9/64" (410 mm) planing width, delivering top-class operating comfort and precision for solid wood processing. With a sturdy cast iron table, space-saving planer fence, and optional Silent-Power® spiral knife cutterblock, it ensures perfectly planed surfaces and maximum reliability. The spring-supported, synchronous table opening and intuitive controls make it ideal for professional woodworking.

Key Features

Highlights

• Spring-Supported, Synchronous Opening: Dual planing tables open simultaneously for quick and easy switching between jointing and planing.
• Optimized Jointing Fence Design: Space-saving design ensures minimal space requirement while maintaining stability.
• Felder Jointer Fence: Provides maximum operational safety and ease of use.
• Depth of Cut Scale: Integrated into the machine chassis for easy, accurate readings.
• Power-Drive (Optional): Electrical control for precise jointing height adjustment, accurate to a tenth of a millimeter.
• 4-Column Jointer Guide: Built for heavy loads, ensuring long-lasting precision.
• Felder System Cutterblock: Guarantees perfect planing results for decades.
• Silent-Power® Spiral Knife Cutterblock: Cuts noise emission by half, providing tear-free planing (optional).

Details

• Felder Planer Fence: Space-saving, tiltable (90°–45°) with end stops at 90° and 45° for stability and precision.
• Silent-Power® Spiral Knife Cutterblock: Reduces noise by 50% (10 dB A), offers tear-free planing, up to 20 times longer blade life, four cutting edges per knife, and optimized chip extraction (optional).
• Felder Auxiliary Fence: Tiltable fence for safe and comfortable planing of thin or narrow workpieces.
• Power-Drive: Fully electrical planer table control for quick, precise height adjustments with fine-tuning via button and LED display for exact values (optional).
• Jointing Table with Prismatic Guides: Patented Felder adjustment system with ergonomic handle for precise depth of cut up to 5 mm, with integrated magnifying lens for accurate readings.
• Felder Table Extensions: Tool-free extensions up to 39 3/8" for quick setup and extended workpiece support.
• Felder Planer Guard: Integrated, space-saving guard stabilizes workpieces during planing and beveling for maximum safety and comfort.
• Comfort Jointer Guard: Folds down for unrestricted freedom of movement during planing.
• Planing Height: Up to 9 27/32" (250 mm) for effortless processing of large solid wood trusses.
• Depth of Cut Quick Adjustment: Ergonomic handle for precise depth of cut adjustments.
• Felder Changeover Comfort: Spring-assisted, simultaneous opening of planer tables for fastest changeover from planing to jointing.
• 2 Stage Gear: Selectable jointing feed speeds of 6 and 12 m/min.
• Clean Solution: Aerodynamically optimized dust extraction hood with ample chip space for ideal chip extraction and a clean working surface.
• Perfect Planing Technology: Two pressure bars prevent fluttering, especially for thinner workpieces during jointing.
• Felder System Cutterblock: 2 or 4 knife cutterblock with quick knife changes (under 2 minutes), self-aligning knives, no resin buildup, and smooth operation.
