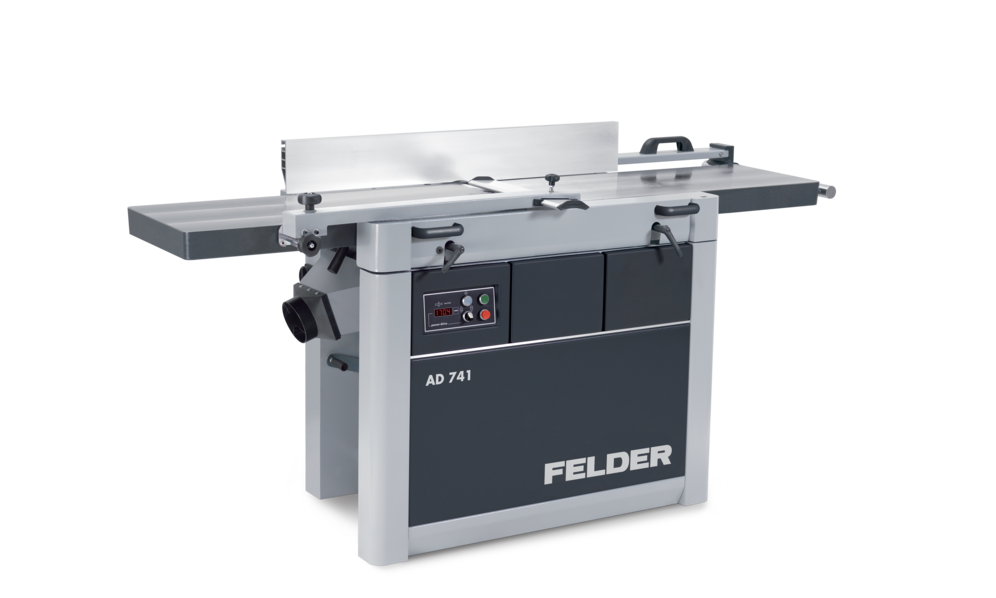

Felder | AD 741 Jointer-Planer

The Felder AD 741 Jointer-Planer, part of the proven 700 series, offers a 16 9/64" (410 mm) planing width with exceptional planing results and reliability. Featuring a solid cast iron table, spring-assisted planer table opening, and optional Silent-Power® spiral blade cutterblock, it ensures top-class performance for solid wood processing. The intuitive design and optional Power-Drive package provide precision and ease of use, making it an ideal entry-level model for professional woodworking.

Key Features

Highlights

• Silent-Power®: Spiral blade cutterblock reduces noise by 50%, provides tear-free planing, and minimizes operating costs (optional).
• Open Planer Table: Simultaneous, spring-assisted opening of planer tables for the fastest changeover from planing to jointing.
• Stability for High Performance: Solid cast iron cutterblock housing with large serrated steel infeed and micro-serrated outfeed rollers for perfect workpiece transport.

Details

• Felder System Cutterblock: 2 or 4 knife cutterblock with quick knife changes (under 2 minutes), self-aligning knives, no resin buildup, and smooth operation.
• Felder Planer Fence: Space-saving, tiltable (90°–45°) with end stops at 90° and 45° for stability and precision.
• Felder Table Extensions: Tool-free extensions for quick setup and extended workpiece support.
• Perfect Planing Technology: Two pressure bars prevent fluttering, especially for thinner workpieces during jointing.
• Adjustment of the Depth of Cut: Depth of cut adjustable up to 4 mm with a magnifying glass for exact scale reading.
• Standard EURO Planer Guard: Integrated, space-saving guard stabilizes workpieces during jointing and beveling.
• Jointer Height Adjustment: Accurate to a tenth of a millimeter with handwheel and integrated digital display.
• Power-Drive: Fully electrical planer table control for precise jointing height adjustments with fine-tuning and LED display (optional).
• Open Planer Table: Spring-assisted, simultaneous opening of planer tables for rapid changeover.
• 2 Stage Gear: Selectable jointing feed speeds of 6 and 12 m/min, with optional reversing controller and potential-free contact for dust extractor.
• Dust Extraction Hood: Efficient design with large chip space for ideal chip extraction and a clean working surface.
• Horizontal Mortiser: Optional mortising unit mounted on the planer side, with optional transport unit for easy mounting/removal.
• Silent-Power® Benefits: Reduces noise by 50% (10 dB A), lowers power consumption, offers four cutting edges per knife, provides up to 20 times longer blade life, and ensures tear-free planing with optimized chip clearance.
