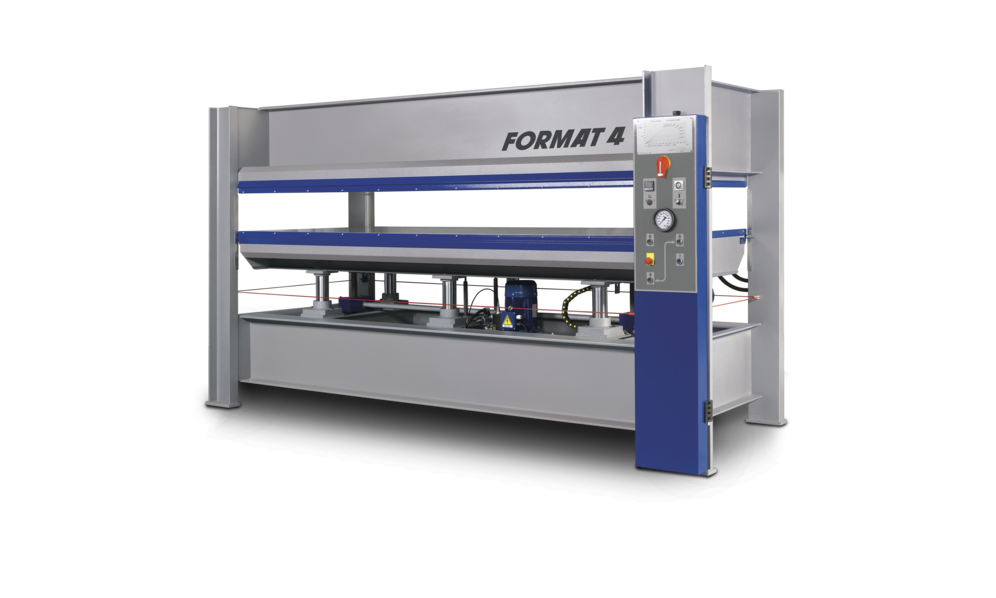

Format4 | HVP Typ 2 Heated Veneer Press

High-Quality Veneer Pressing with Maximum Efficiency

The Format4 HVP Typ 2 Heated Veneer Press provides cost-efficient, high-quality veneer pressings for wood, panel, and plastic materials. Equipped with a fabricated steel plate using warm water circulation for heating, it ensures excellent heat transfer and precise pressing for professional woodworking applications.

Key Features

Highlights

• Warm Water Heating Plate: Steel coils with warm water circulation for efficient and uniform heat transfer.
• Synchronized Rack and Pinion Guide: Large-dimensioned rail guides and torsionally rigid joints ensure parallel lift of pressing plates.
• Raised Cylinder Guide: Hydraulic cylinders coated with oil to prevent seal drying, extending durability.

Details

• Optional Magnetic Sensors: Monitor parallel lift of pressure plates to prevent uneven pressure buildup.
• Plate Construction: Aluminum surface for perfect finish, steel sheet, support tube pipes, and thermal insulation (wood fiber platen).
• Versatile Applications: Suitable for veneering, laminating, and pressing wood, panel, and plastic materials.
• Maximum Pressure: Fabricated steel platen supports up to 5 kg/cm² for robust pressing.
• Workshop Heating Synergy: Connects to workshop heating system with a maximum operating temperature of 90°C.

Technical Specifications
