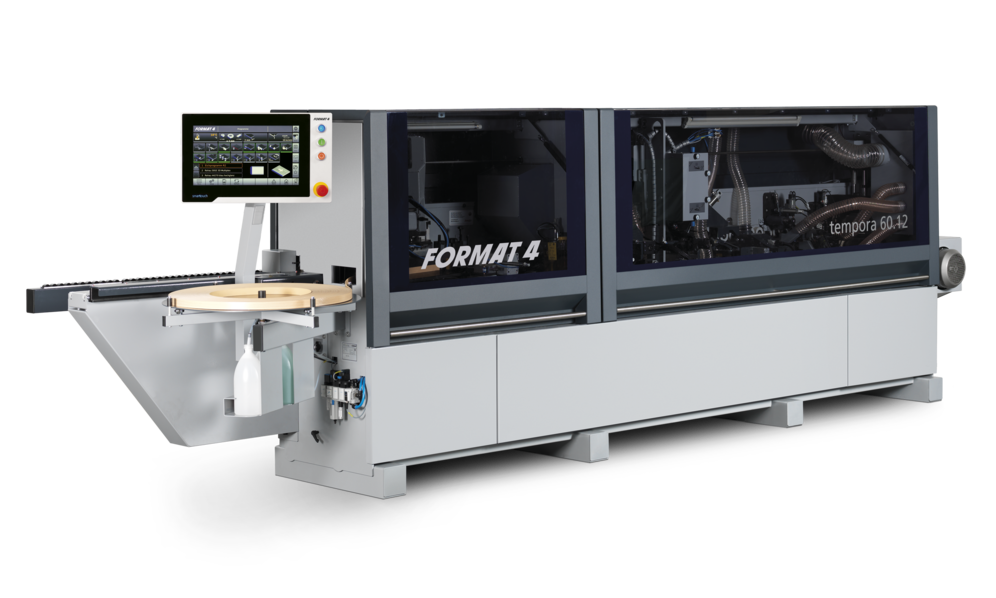

Format4 | tempora F800 60.12 e-motion Edgebander

Time-Saving Edgebanding for Enhanced Productivity

Saving you time is our motivation

Time, the most important resource in a modern workshop was one of the main focuses whilst developing the new tempora machine concept. Processing edges needs to be as quick, easy and efficient as possible. To achieve this, the tempora model combines the key characteristics of speed, productivity, flexibility and user comfort in a convincing complete package. The final finishing results when processing both coiled and strip material convince with incredibly high standards, that fulfil the ever increasing demands of edgebanding complete processing. Solid edge processing aggregates and an optimised machine chassis guarantee absolute stability even when running at maximum speed. The user friendly control options, “x-motion plus” and “e-motion” ensure absolute repeatability and individual configurable operating programs enable quick change of the aggregates and edge material. With the “Professional” and “Performance” processing packages and the individual aggregate options for both finishing places, the tempora can be perfectly configured for company specific requirements. In the future you can take more time for your customers, the tempora will ensure that the production will be completed in record time. Premilling unit with separately controlled diamond milling cutters for chip free glue joints Premium class operating comfort with the e-motion package and motor controlled units Complete stability even at maximum processing speeds due to the solid machine chassis

• Premilling unit with separately controlled diamond milling cutters for chip free glue joints
• Premium class operating comfort with the e-motion package and motor controlled units
• Complete stability even at maximum processing speeds due to the solid machine chassis

Key Features

Highlights

• 18" Smartouch Control: Intuitive e-motion interface with network connection for minimal manual settings and precise unit control.
• Air-Motion for Zero-Joint: Patented system for a seamless optical finish on co-extruded and laser edge materials.
• Air Cushion Table: 1050 x 400 mm surface (expandable to 2000 x 400 mm) for gentle handling of large, surface-sensitive workpieces.

Details

• Premilling Unit: Two counter-rotating diamond-coated spiral cutters with electronic depth adjustment for tear-free edges.
• Teflon-Coated Glue Pot: 8-minute heat-up with tool-free quick-change system for EVA and PUR adhesives.
• Edge Feed: Supports coiled material (0.4–3.0 mm) and strip material (up to 12 mm) for workpieces up to 60 mm thick.
• Pressure Zone: Adjustable first roller with two conical rollers, offering pneumatic pressure settings via e-motion control.
• End Trimming Unit: Two independent saw units (12,000 rpm) with 0°–15° tilt, manually or pneumatically adjustable.
• Corner Rounding Unit: Finishes edges (0.4–3.0 mm) up to 60 mm height with tungsten carbide cutters.
• Optional Features: PUR premelter (2 kg), grooving unit (0–15 mm depth), and spraying units for release agents and polish.
• EdgeControl: Wireless Bluetooth measurement for precise edge and workpiece thickness adjustment.

Technical Specifications
