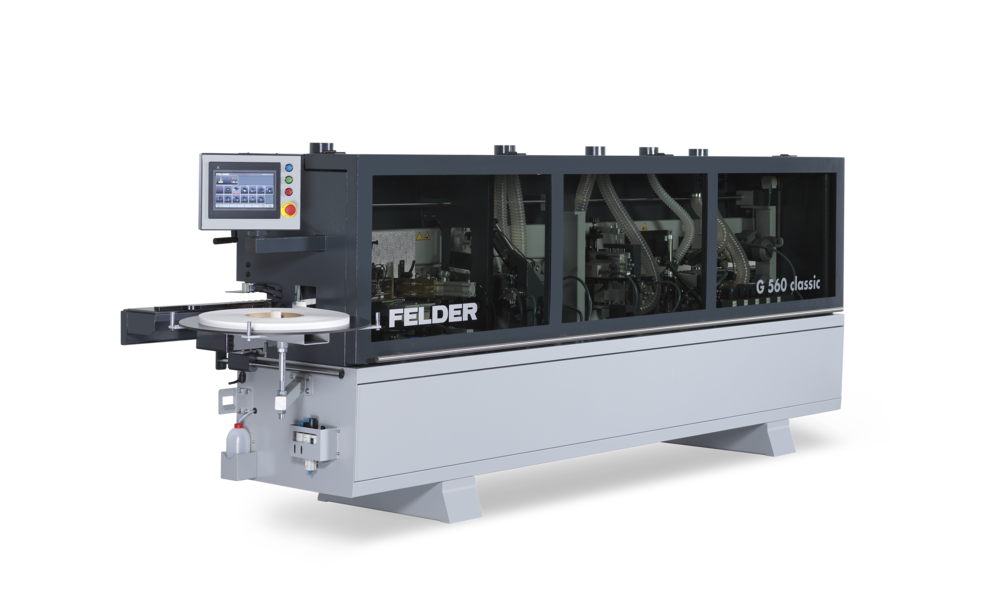

Felder | G 560 classic Edgebander

Seamless Edgebanding for Professional Craftsmanship

Intuitive operation via touchscreen, greater flexibility and productivity with the new interchangeable glue pots, and ultimately a perfect finish - both Felder edgebanders, G 560 classic and G 580 classic, boost the quality of production when it comes to processing a wide variety of coiled and strip materials for edge thicknesses of up to ¹³/₆₄" (5 mm). Perfect workpieces in a single work step - the two Felder classic models are machines of high quality engineering. In addition to the standard equipment, the G 580 classic features a premilling and a corner rounding unit to satisfy the most demanding requirements of professional woodworkers.

Key Features

Highlights

• 7" Touchscreen Control: Intuitive interface for unit activation, glue temperature settings, and status feedback.
• Premilling Unit: Two diamond-tipped spiral jointing cutters ensure splinter-free edges with adjustable depth (0–2 mm).
• Quick-Set System: Fastest settings for efficient adjustments to different materials.

Details

• Teflon-Coated Gluepot: 3 lbs capacity, quick-change design with micro-adjustable glue roller for perfect adhesion.
• End Trimming Unit: Two independent motors (12,000 rpm) with manual tilt (0°–10°) for precise cuts.
• Multi-Functional Trimming Unit: Adjustable for flush, radius, and bevel trimming with 2 mm radius tools (optional 1 mm).
• Chain Conveyor: Solid feed with click pads and round/flat guides, operating at 9 m/min (10.8 m/min with 60 Hz).
• Optional Finishing Units: Up to three units, including radius scraper and buffing unit with two motors.

Technical Specifications
