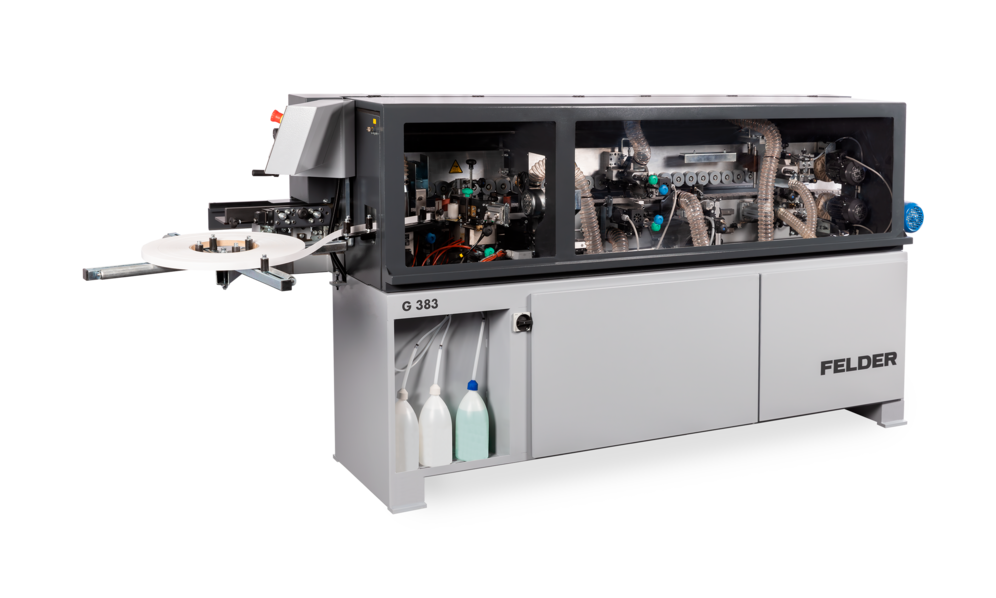

Felder | G 383 Edgebander

Advanced Edgebanding for Professional Precision

Performance, flexibility and user comfort all in one! Compact design, reliable, high-quality mechanical engineering - perfect machining results. The new Felder edgebanders G 363, G 363R and G 383 with robust chain conveyors and application-controlled premilling unit in the standard version impress with their performance, flexibility and ease of use at the best price-performance ratio. With the usual high level of Felder operating convenience, it takes just a few simple steps to adjust the machine to different materials or edge thicknesses between 0.4-5 mm. Start processing units, regulate glue temperature and receive feedback on the current machine status via the 7" touch screen. Ensure valuable productivity by being able to fully machine workpieces up to a thickness of 50 mm without having to compromise on customised features. The new edgebander models G 363, G 363R or G 383 can be individually configured to meet your needs thanks to the Felder modular system - from the Teflon-coated interchangeable glue pot to spraying units for cleaning and release agents.

Key Features

Highlights

• 7" Touchscreen Control: Intuitive interface for unit activation, glue temperature regulation, and status feedback.
• Corner Rounding Unit: Standard feature for finishing workpiece corners on edges 0.4–3 mm.
• Modular Configuration: Free spaces for up to three additional finishing units.

Details

• End Trimming Unit: High-precision linear guides with 9000 rpm saw blades and conical cutters for perfect cuts.
• Chain Conveyor: Spiral-shaped feed rollers with click system for quick pad replacement and straight workpiece guidance.
• Glue Pot: Teflon-coated, 1.2 kg capacity with 12-minute heat-up and fine-adjustable application roller.
• Pressure Unit: Mechanically spring-loaded with two rollers, adjustable via Quick-Set system for perfect edge adhesion.
• Multi-Functional Unit: Optional for flush to bevelled finishes and 2 mm radius trimming.
• Corner Rounding Unit: Handles soft-forming or post-forming materials at 7 m/min with TC moulders.

Technical Specifications
