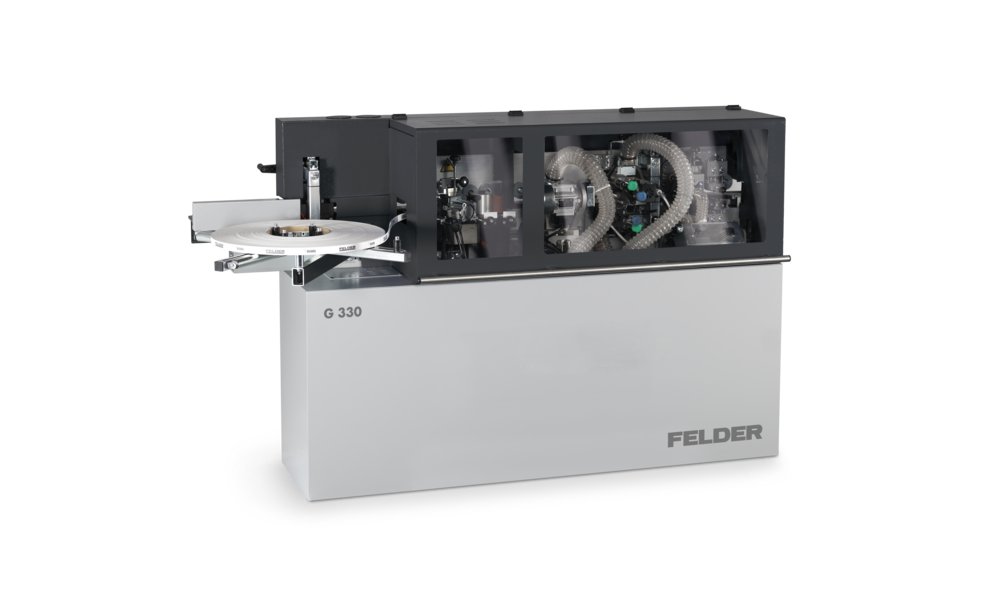

Felder | G 330 Edgebander

Compact Edgebanding with Unmatched Efficiency

The new edition of the Felder G 300 edgebanders in a new and modern look is now even more efficient with the changeable gluepot With the new changeable gluepot, the flexibility and productivity of larger edgebanders can also be achieved with the Felder Series G 300 models. The quick and easy change to other adhesive colours and the use of PUR glue guarantee productive procedures and excellent edges for all areas of application. The G 330 is the smallest edge bander with chain conveyor and with a length of 2 meters it fits in every workshop. The perfect coordination of the individual components eliminates the need for manual postprocessing. The G 360 impresses with even more power and the proven side trimming unit: Two independent high-frequency motors with a speed of 12,000 rpm and equipped with diamond cutters enable an unprecedented edge processing quality. A whole new standard of splinter-free, industrial quality glue joints with the G 360. The new Felder G380 edgebander, with its extended end trimming unit and radius trimming, offers the highest level of flexibility in the edgebander compact class. The individual configuration with two finishing unit spaces and extensive all-round equipment in a compact design meet the highest quality standards, while taking up minimal space. Quick-Set system for quick adaptation to different material thicknesses Compact design and smallest footprint Unique price-performance ratio Teflon-coated interchangeable glue basin for 1.2 kg adhesive granulate Glue and colour change in a few seconds

• Quick-Set system for quick adaptation to different material thicknesses
• Compact design and smallest footprint
• Unique price-performance ratio
• Teflon-coated interchangeable glue basin for 1.2 kg adhesive granulate
• Glue and colour change in a few seconds

Key Features

Highlights

• Compact Chain Conveyor Design: At a total length of just 2 meters, the G 330 is the smallest edgebander with a chain conveyor, making it an ideal fit for workshops with limited space while maintaining professional-grade performance and precision.
• Teflon-Coated Interchangeable Gluepot: Holds 1.2 kg of adhesive granulate with a quick-change system, offering a heating time of approximately 12 minutes. This allows for rapid glue and color changes, including the use of PUR glue, enhancing flexibility and productivity to match larger edgebanders.
• Quick-Set System: Enables fast and precise adjustments to different material thicknesses, reducing setup time significantly and contributing to a 50% time savings, which is crucial for small workshop efficiency.

Details

• Operating Panel with LCD Display and Keypad: Provides intuitive control with easy switching of individual machine units, including glue temperature settings, automatic temperature reduction, unit selection/disengagement, an odometer for material usage, maintenance interval display, and plain text error messages, ensuring maximum operator comfort.
• Patented Height Adjustment of Upper Pressure Bar: Utilizes a handle with a large scale for easy reading, allowing quick adjustment of feed height from 10–45 mm via a newly developed quick-change mechanism. This ensures precise pressure distribution and adaptability to various workpiece thicknesses.
• Precise Workpiece Feeding with Chain Conveyor: Features spiral-formed drive rollers that prevent scratch traces on high-grade laminated materials, ensuring a smooth and consistent feed. The click system allows for quick replacement of worn plastic pads, maintaining operational efficiency.
• Pressure Roller Unit: Consists of a large roller followed by a smaller one, mechanically spring-loaded and adjustable via the Quick-Set system. This setup improves the glue bond between the edge and the material, with an adjustable spring system guaranteeing a perfect join.
• End Trimming Unit: Equipped with high-precision linear guides and saw blades rotating at 9000 rpm, this unit ensures perfect cutting results regardless of wood type or thickness, delivering consistent quality with minimal effort.
• Multi-Functional Trimming Unit: Integrates flush, bevel, and radius trimming capabilities within the machine's compact design. The unit features a combination setup that saves space, with 2 mm radius tooling included as standard, allowing quick and easy adjustments for different edge profiles.
• Finishing Aggregates: Includes a radius scraper that fine-tunes the edge radius and removes excess glue with a gentle pulling cut, a surface scraper that eliminates remaining glue residue for a flawless finish, and a buffing unit with two independent electric motors equipped with cotton buffers. This unit provides a superior finish for ABS and PVC edging materials, with an optional spray nozzle for polishing spray application to enhance the final result.
• Space-Saving Design: Labeled as a "space saver" by Felder, the G 330 requires less than two meters when operational, making it a practical solution for small workshops without compromising on the quality or range of finishing options.
• Optional Enhancements: While not detailed as standard, the design’s modularity suggests potential for custom configurations, such as additional finishing units or specialized tooling, aligning with Felder’s reputation for tailored solutions, though specific options are not specified in the provided text.
