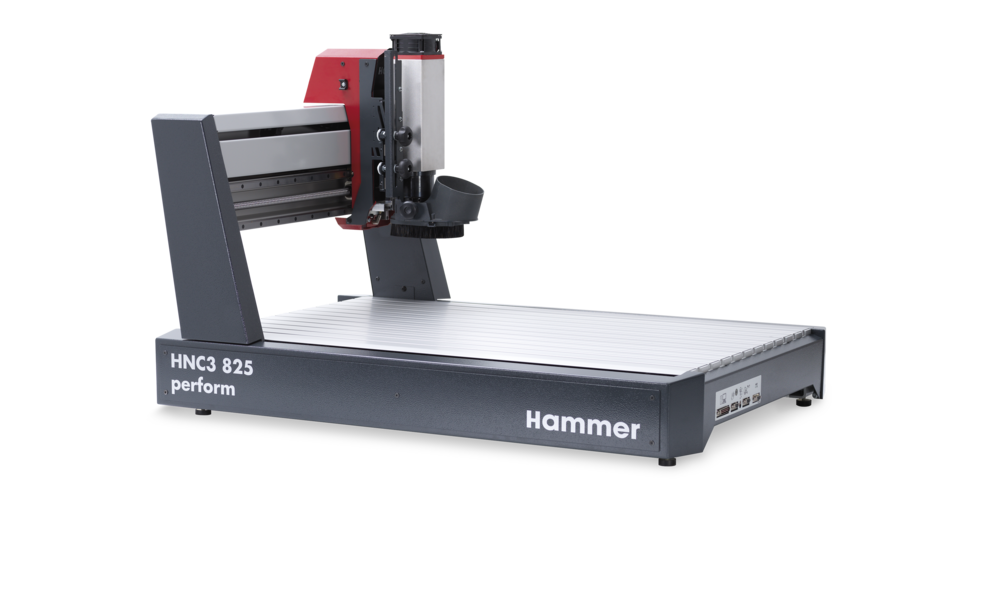

Hammer | HNC3 825 perform CNC Portal Milling Machine

Affordable Precision CNC Milling for Every Workshop

Step into the world of CNC machining now! The new Hammer® CNC portal milling machine – CNC technology made affordable and possible for everyone. No matter whether you are a demanding do-it-yourselfer, ambitious model maker, quality-conscious small-series manufacturer, training facility or school. The Hammer® CNC portal milling machine removes the limits of manufacturing possibilities and impresses with its Austrian engineering quality in every detail. On a surface as small as a kitchen table, the Hammer® CNC portal milling machine offers all the freedom of CNC machining with a unique price-performance ratio. The classic, solid and durable construction combined with the highest quality materials ensures exceptional torsional strength and stability. A powerful shaper spindle, precise linear guides and powerful stepper motors ensure maximum performance and efficiency for every challenge. Absolute precision and repeatability are guaranteed at all times, even with delicate work. The Hammer® CNC portal milling machine can be controlled either by an integrated, intuitive software or by any software of your choice. The workpieces and numerous accessories can be fastened to the T-slot table in no time at all.

• Unlimited creativity and professional CNC results
• Step into the world of CNC machining now!
• CNC technology made affordable and possible for everyone
• No matter whether you are a demanding do-it-yourselfer, ambitious model maker, quality-conscious small-series manufacturer, training facility or school
• The Hammer® CNC portal milling machine removes the limits of manufacturing possibilities and impresses with its Austrian engineering quality in every detail
• On a surface as small as a kitchen table, the Hammer® CNC portal milling machine offers all the freedom of CNC machining with a unique price-performance ratio
• The classic, solid and durable construction combined with the highest quality materials ensures exceptional torsional strength and stability
• A powerful shaper spindle, precise linear guides and powerful stepper motors ensure maximum performance and efficiency for every challenge
• Absolute precision and repeatability are guaranteed at all times, even with delicate work
• The Hammer® CNC portal milling machine can be controlled either by an integrated, intuitive software or by any software of your choice
• The workpieces and numerous accessories can be fastened to the T-slot table in no time at all

Key Features

Highlights

• Compact and Space-Efficient Design: Features a processing surface of 32 ³¹/₆₄" x 18 ⁵⁵/₆₄" (825 x 479 mm) and a through-feed height of 6 ¹⁹/₆₄" (160 mm), fitting on a kitchen table or Euro palette footprint, ideal for small workshops, schools, or hobbyists seeking professional-grade machining.
• Powerful 2.2 kW Router Spindle: Delivers enhanced performance for demanding CNC tasks, ensuring highly precise professional results across a variety of materials, surpassing the base model's capabilities with greater power and efficiency.
• High-Precision Linear Guides: Equipped with two high-precision linear guides on each axis, featuring four guide carriages on the z-axis, three on the y-axis, and two on each side of the x-axis, these guides are contamination-resistant and maintenance-free, ensuring top-quality outcomes even on delicate work.

Details

• T-Slot Machine Table: Constructed from robust aluminum with M6 slots (17.5 x 7.5 mm), this table allows for rapid fastening of workpieces and accessories. It supports a wide range of clamping devices from the Hammer range and custom methods, providing complete flexibility for diverse machining needs.
• Recirculating Ball Screws on X & Y Axis: Utilizes tolerance class T7 ball screws with a 16 mm diameter and 10 mm pitch, driven by a 2.8 A NEMA 24 stepper motor in 1/8 step mode. This setup ensures maximum precision and smooth operation, with a travel speed of 7 m/min (4 ⁹/₁₆ in/s) for efficient processing.
• Absolute Precision and Repeatability: Offers ±0.05 mm repeatability and ≤0.02 mm backlash, with a technical resolution of 0.00625 mm (0.00375 mm on the z-axis), providing consistent accuracy for intricate and delicate projects across multiple applications.
• "Perform" Extraction Hood: Features a 3 ¹⁵/₁₆" (100 mm) diameter extraction connection, adjustable to move with the spindle or set at a fixed height, optimizing dust removal. An electric fan reduces noise by half and ensures superior cooling, enhancing the work environment.
• Intuitive Control Options: Supports operation via integrated, intuitive software with a touchscreen interface or any user-preferred software, offering flexibility. The open interface includes various post-processors, catering to diverse software preferences and enhancing control versatility.
• Delivered Fully Assembled: Arrives pre-assembled, lubricated, and calibrated, requiring only unpacking and connection to a power supply and control computer for immediate use, simplifying setup and reducing downtime.
• Optional Enhancements: Includes a range of accessories such as a tool length detector, various collet chucks (e.g., ER25, ER16), and mounting plates. The high-speed milling spindle with an electric fan for noise reduction is an optional upgrade, further improving performance and comfort.
• Durability and Stability: Built with high-quality materials and Austrian engineering standards, the machine’s 103 kg weight and solid construction ensure exceptional torsional strength and stability, supporting rigorous use while maintaining precision.
